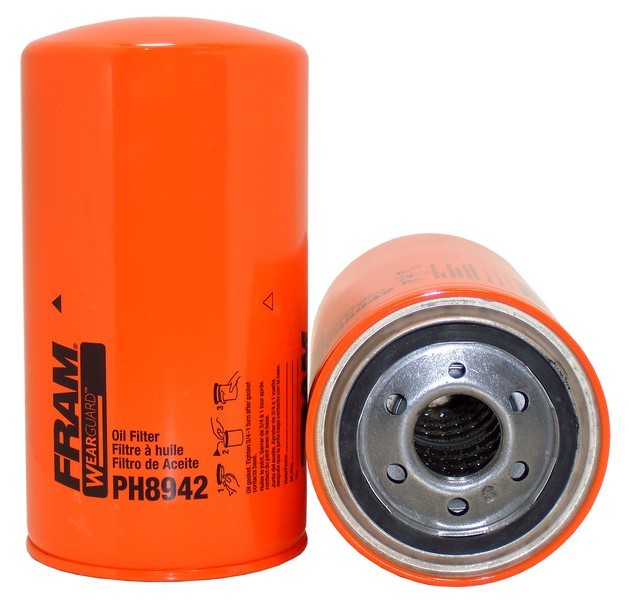

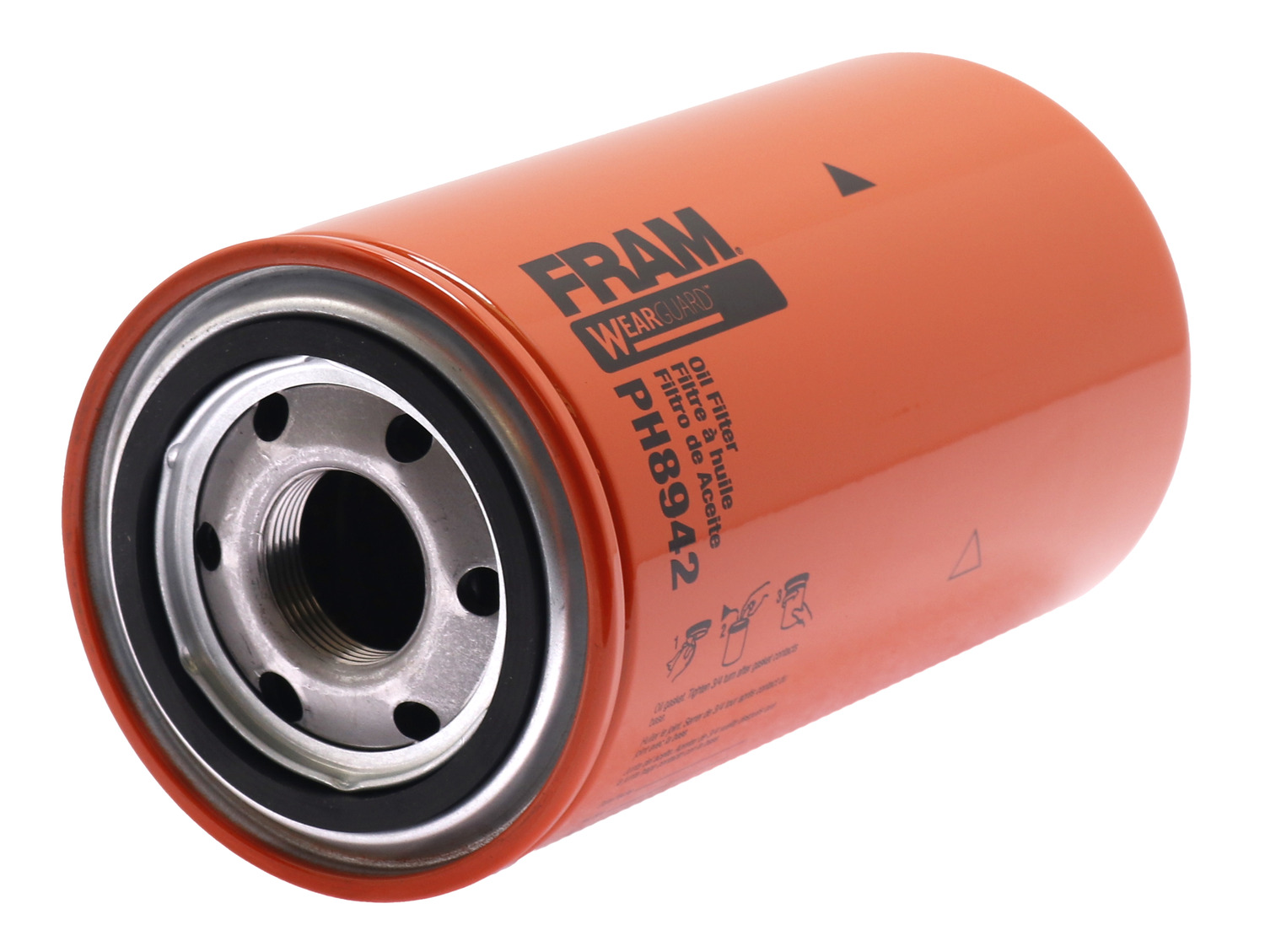

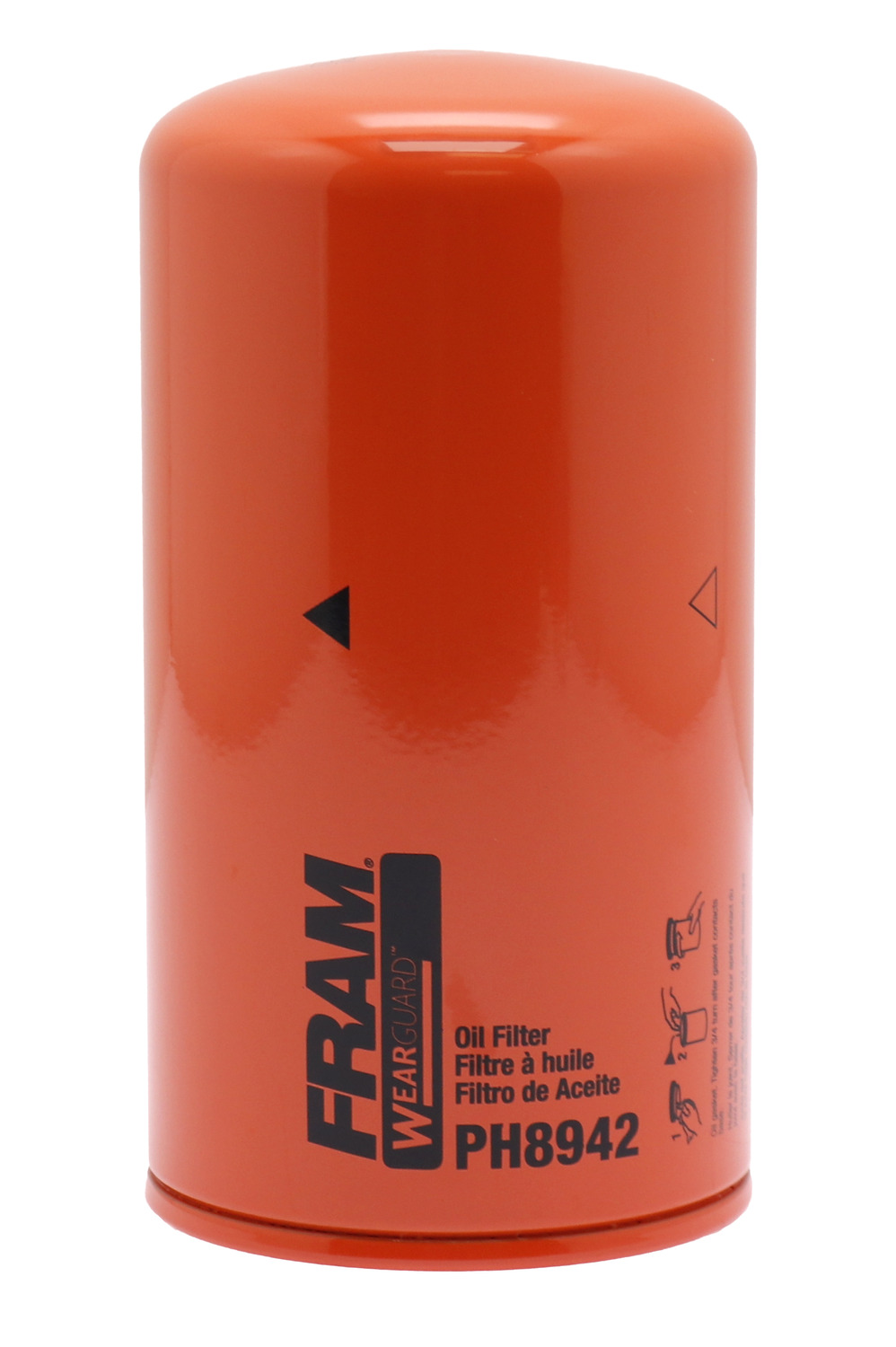

Fram PH8942 Heavy Duty Spin-On Engine Oil Filter

The Fram PH8942 is a heavy-duty spin-on engine oil filter engineered for demanding commercial and fleet operating environments. Featuring a cellulose/synthetic blend filter media, this full-flow canister filter is built to deliver reliable engine protection across a wide range of heavy-duty diesel applications.

Key Features:

• Heavy-duty spin-on canister design for easy installation and removal
• Cellulose/synthetic blend filter media for effective contaminant capture
• High-strength tapping plate for positive filter seating and consistent performance
• Gasket materials engineered to withstand diesel engine operating environments
• Base gasket type with gasket/seal included — no additional hardware required
• Threaded inlet with standard 1-1/8"-16 thread size for secure, leak-free mounting
• Orange housing with specific-fit design — not a universal application

Specifications:

• Height: 7.181 in.
• Outside Diameter: 3.688 in.
• Thread Size: 1-1/8"-16 in.
• Gasket Inside Diameter: 2.460 in.
• Gasket Outside Diameter: 2.810 in.
• Gasket Thickness: 0.250 in.
• Anti-Drain Back Valve: No
• Bypass Relief Valve: No
• Filter Type: Spin-On Canister
• Housing Color: Orange
• UPC: 009100026002

The Fram PH8942 is a direct replacement oil filter designed to meet OEM specifications for a wide range of commercial trucks, buses, and equipment powered by Cummins ISB 5.9L and 6.7L diesel engines.
