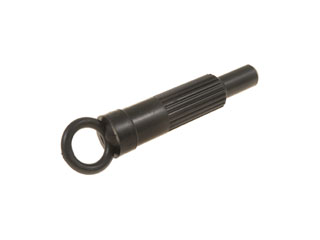

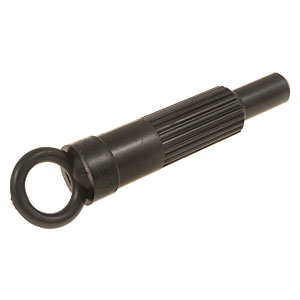

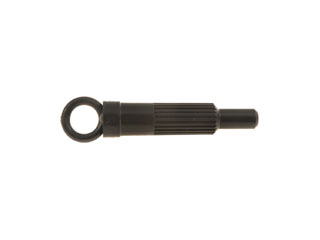

Dorman 14505 Clutch Alignment Tool - 22 Spline, 15/16 Inch Outer Diameter

(Ford Ranger 1983-89, Escort 1991-96, Probe 1989-97, Courier 1972-82; Mazda B2200 1982-84, 1987-93, Miata 1990-97, 1999-2000 + 32 more models)

Manufacturer

Picture for manufacturer Dorman

Part Number

14505
5 reviews
Sale Price

$4.55

In Stock (8)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Dorman 14505 Clutch Alignment Tool is an essential tool for proper clutch disc installation and alignment. This precision-engineered alignment arbor ensures the clutch disc is perfectly centered on the flywheel, allowing the transmission input shaft to slide smoothly through the clutch hub during installation.

Key Specifications:

  • 22 spline design matches common clutch disc configurations
  • 15/16 inch outer diameter for precise pilot bearing fitment
  • Prevents misalignment that can cause difficult transmission installation
  • Durable construction for repeated professional or DIY use
  • Compatible with manual transmission clutch assemblies requiring 22-spline alignment

This clutch alignment tool eliminates guesswork during clutch replacement by holding the clutch disc in the correct position while the pressure plate is bolted to the flywheel. Without proper alignment, installing the transmission can be difficult or impossible, and may result in damage to the clutch components or input shaft.

Products specifications

Fits

Ford Ranger 1983-89, Escort 1991-96, Probe 1989-97, Courier 1972-82; Mazda B2200 1982-84, 1987-93, Miata 1990-97, 1999-2000, MX-5 Miata 1992, 1995, 1999, RX-7 1979-91, Protege 1990-94, B2000 1979-84, 1986-87, B2300 1994 + 27 more models

Feature - Benefit 1

Duplicates transmission input shaft dimensions for ease of transmission installation

Feature - Benefit 2

Fits securely on your vehicle to prevent damage to the input shaft

Feature - Benefit 3

Durable plastic construction

Feature - Benefit 4

Quality tested for trouble-free use

Material

Plastic

Color

Black

Spline Diameter (In)

0.938 in

Universal Or Specific Fit

Specific

Package Contents

1 Alignment Tool

Spline Quantity

22
