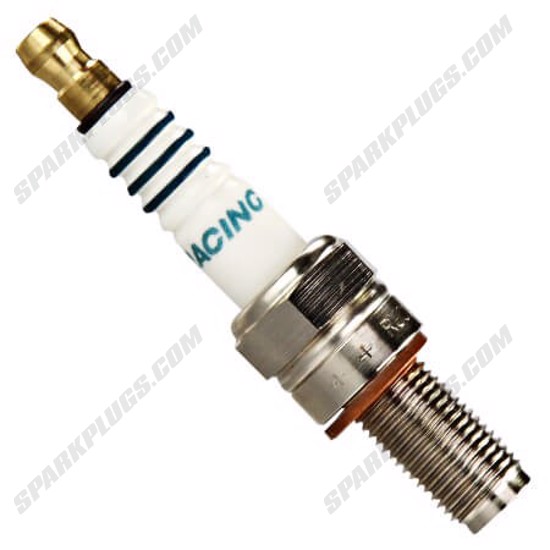

DENSO 5739 RU01-31 Iridium Racing Spark Plug Surface Gap 10mm

Manufacturer

Part Number

5739
Black Friday Price

$43.70

In Stock (8)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The DENSO 5739 (RU01-31) Iridium Racing Spark Plug is a top-tier, competition-grade surface discharge plug engineered for high-performance and racing applications. Featuring a 0.4mm iridium-rhodium alloy center electrode — the world's smallest diameter — this plug requires less voltage to fire and delivers maximum ignition performance under the most demanding conditions. A 100% pure platinum 0.8mm ground electrode reduces the risk of electrode melt-off during prolonged racing use.

Key Features:

  • Surface gap / U-E type design with iridium center electrode for extended service life and consistent spark delivery
  • Patented spark cleaning pocket burns off carbon deposits to restore electrical resistance and virtually eliminate fouling-related misfires
  • 360-degree laser-welded iridium tip for superior bond strength and durability under extreme heat and vibration
  • Hardened racing insulator — 20% stronger than standard, developed through rigorous on-track testing
  • Silicone oil-coated insulator repels moisture and resists carbon buildup
  • Purified alumina powder insulator provides exceptional thermal conductivity and structural strength
  • Five-rib insulator design prevents flashover
  • Copper-glass seal bonds the center electrode and insulator for a gas-tight seal
  • Built-in 5 kΩ resistor reduces electrical interference with onboard electronics
  • Burnished nickel-plated shell for superior corrosion resistance and to prevent thread seizing
  • Machine-rolled threads prevent cross-threading and seizing during installation and removal
  • 100% pre-fired at the factory to ensure highest quality before leaving production
  • Individually packaged in a protective plastic case to safeguard the electrode during transport

Specifications:

  • Thread Diameter: 10mm
  • Thread Pitch: 1.0mm
  • Seat Type: Gasket
  • Reach: 19mm (3/4 in.)
  • Hex Size: 5/8 in. (16mm)
  • Terminal Type: Removable Nut
  • Gap Size: 1.1mm
  • Resistor: 5 kΩ
  • Heat Range: 31
  • Plug Height: 50mm
  • Torque Spec (Cast Iron): 7–11 lb-ft
  • Torque Spec (Aluminum): 7–11 lb-ft
  • OEM/Cross Reference: DENSO 267700-1580

The DENSO 5739 is sold individually in a protective plastic case — DENSO was the first spark plug manufacturer to individually package each racing plug this way, ensuring the electrode arrives at the track in perfect condition. Engineered for serious motorsport use where reliability and maximum ignition efficiency are non-negotiable.

Products specifications

Ground Electrode Tip Design

Surface Gap

Pre-Gap Size

1.1

Ground Electrode Core Material

Nickel

Seat Type

FLAT

Center Electrode Tip Material

Iridium

Center Electrode Core Material

Copper

Thread Diameter

14.00

Resistance

5000

Manufacturer Heat Range

31

Ground Configuration

Surface

Reach

19.00

Hex Size

16.0
