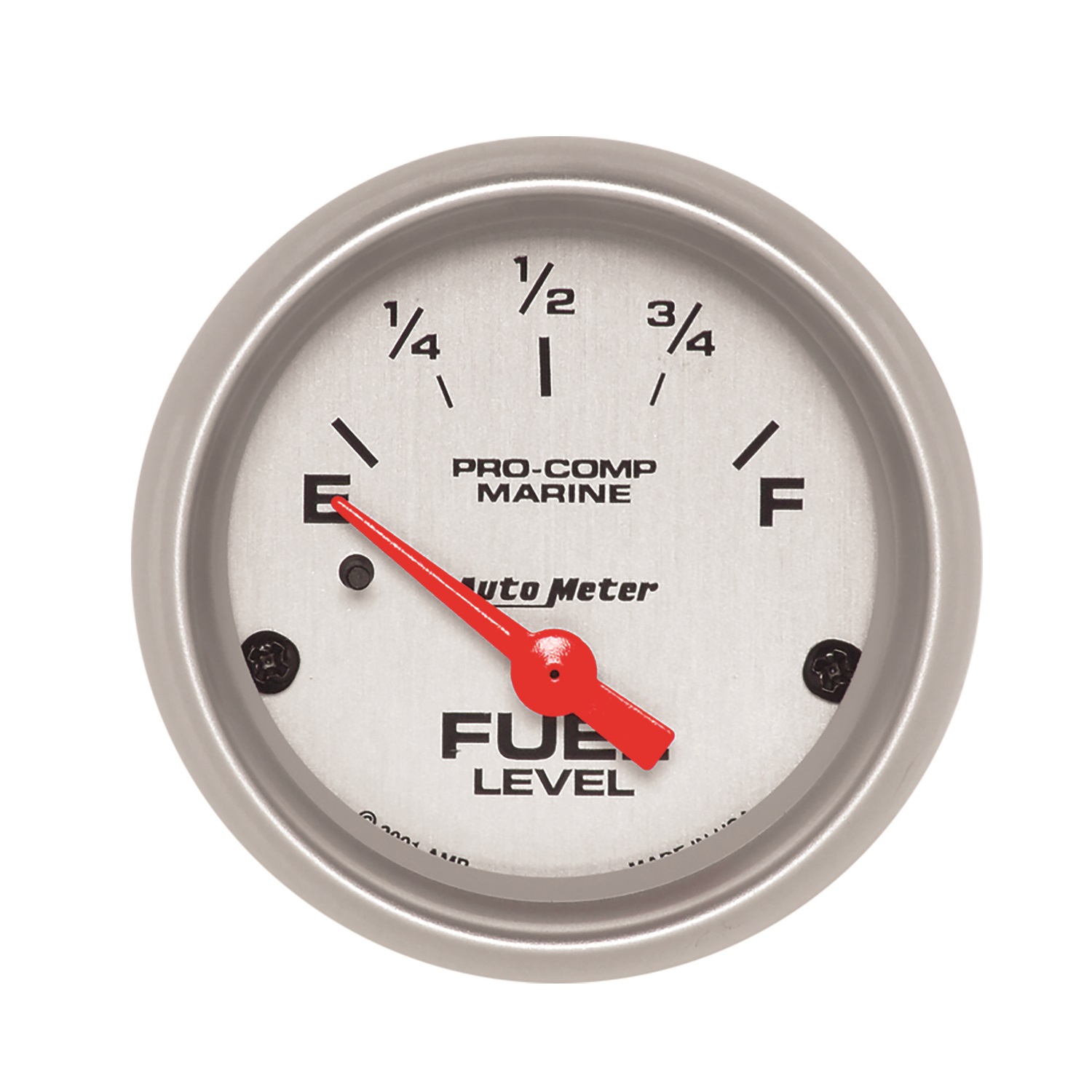

AutoMeter 200760-33 Marine Silver Fuel Level Gauge 2-1/16" 240-33 Ohm Electric

The AutoMeter 200760-33 Marine Silver fuel level gauge delivers precise fuel monitoring for boats and marine applications. This 2-1/16 inch electric gauge features AutoMeter's patented air-core meter movement with built-in extra dampening to combat fuel slosh in non-baffled tanks, providing stable, accurate readings even in rough water conditions.

Key Features:

• Front sealed bezel design provides enhanced water resistance for marine environments
• UV-protected paint on dial pointer prevents sun damage and fading
• Compatible with 240 Ohm empty to 33 Ohm full fuel level sending units
• Works with 12V and 16V electrical systems standard in most marine applications
• Traditional incandescent lighting illuminates the perimeter of the silver dial
• Air-core electric design keeps hazardous fluids safely outside the vessel
• Fluorescent red pointer for excellent visibility in all lighting conditions

Specifications:

• Size: 2-1/16 inch diameter (standard cup/hole size)
• Outer bezel diameter: 2-1/4 inches
• Bezel: Brushed aluminum Super Bezel style
• Lens: Flat, clear
• Range: 240Ω empty to 33Ω full
• Movement: Electric air-core
• Lighting: White incandescent

What's Included:

• Fuel level gauge
• Bulb and socket assembly
• Red and green bulb covers
• Corrosion-resistant marine-grade mounting hardware
• Detailed installation instructions

Requires AutoMeter sending unit 990345 or equivalent 240Ω empty/33Ω full fuel level sender. Backed by AutoMeter's 12-month limited warranty.
