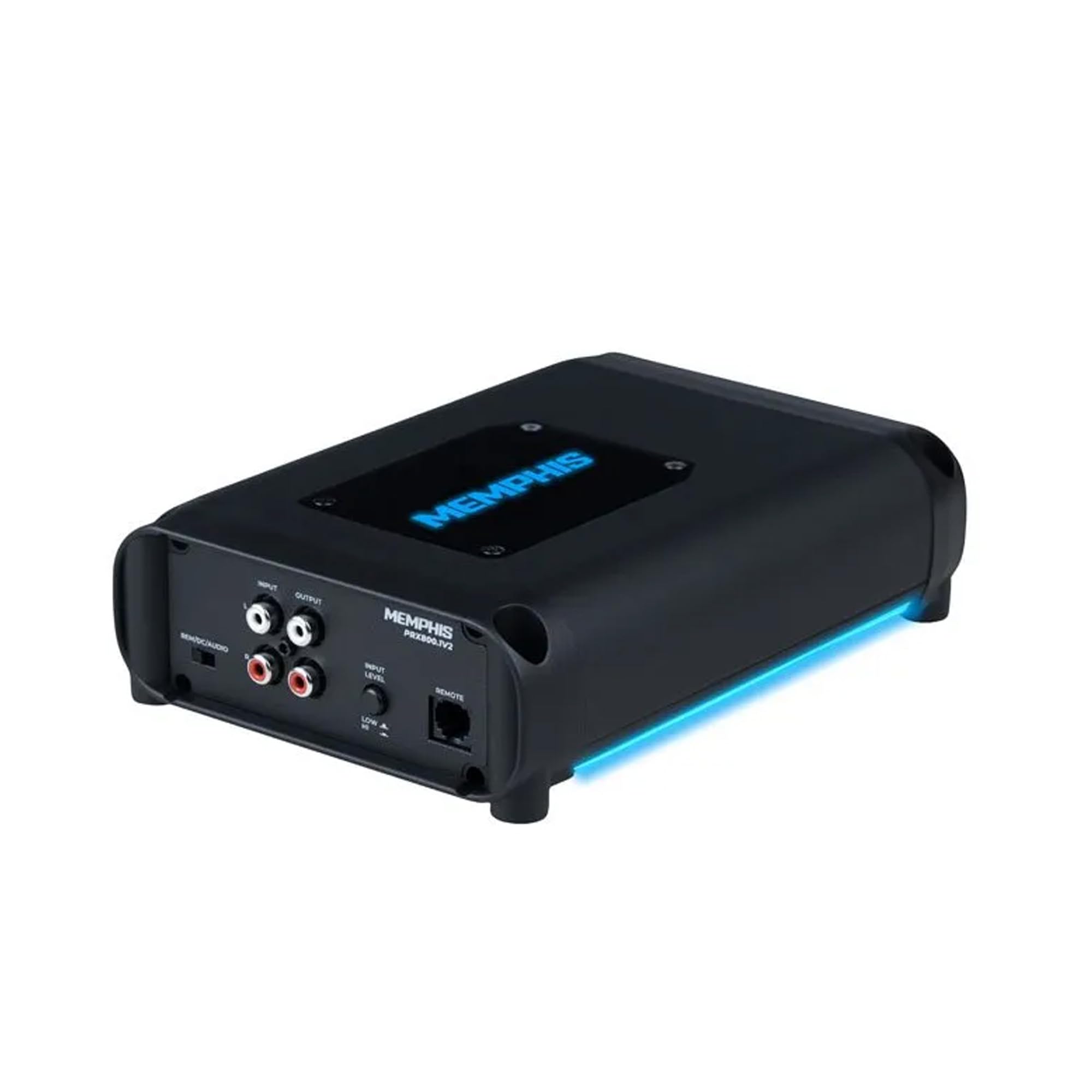

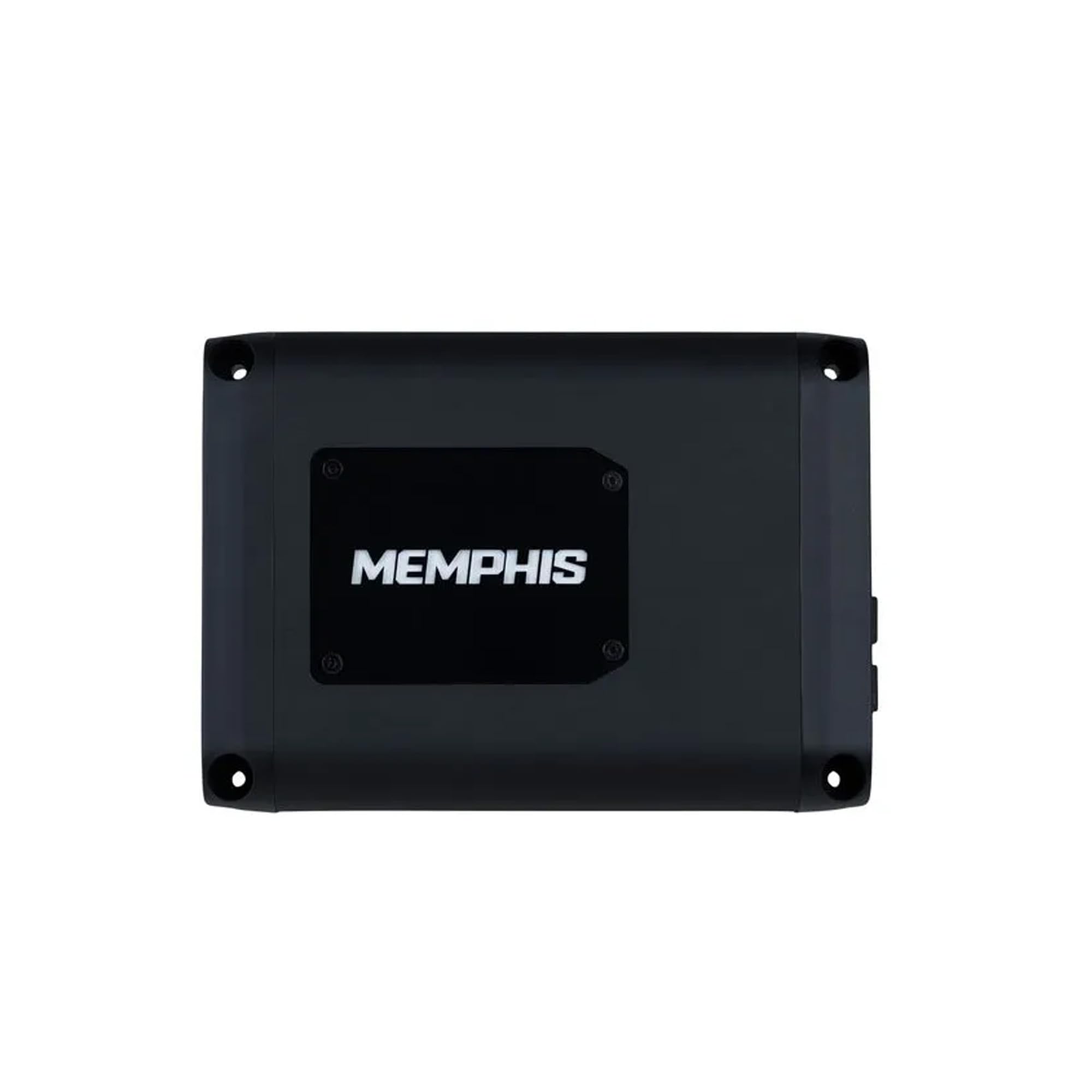

Memphis Audio PRX800.1V2 Power Reference 800W Class D Monoblock Subwoofer Amplifier

Manufacturer

Part Number

PRX800.1V2
Black Friday Price

$350.33

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Memphis Audio PRX800.1V2 is a Class D monoblock subwoofer amplifier from the Power Reference series, delivering up to 800 watts RMS at 1 ohm in a remarkably compact chassis. Redesigned with a smaller footprint compared to its predecessor, this amp maintains the high power output Power Reference is known for while fitting into tighter installation spaces.

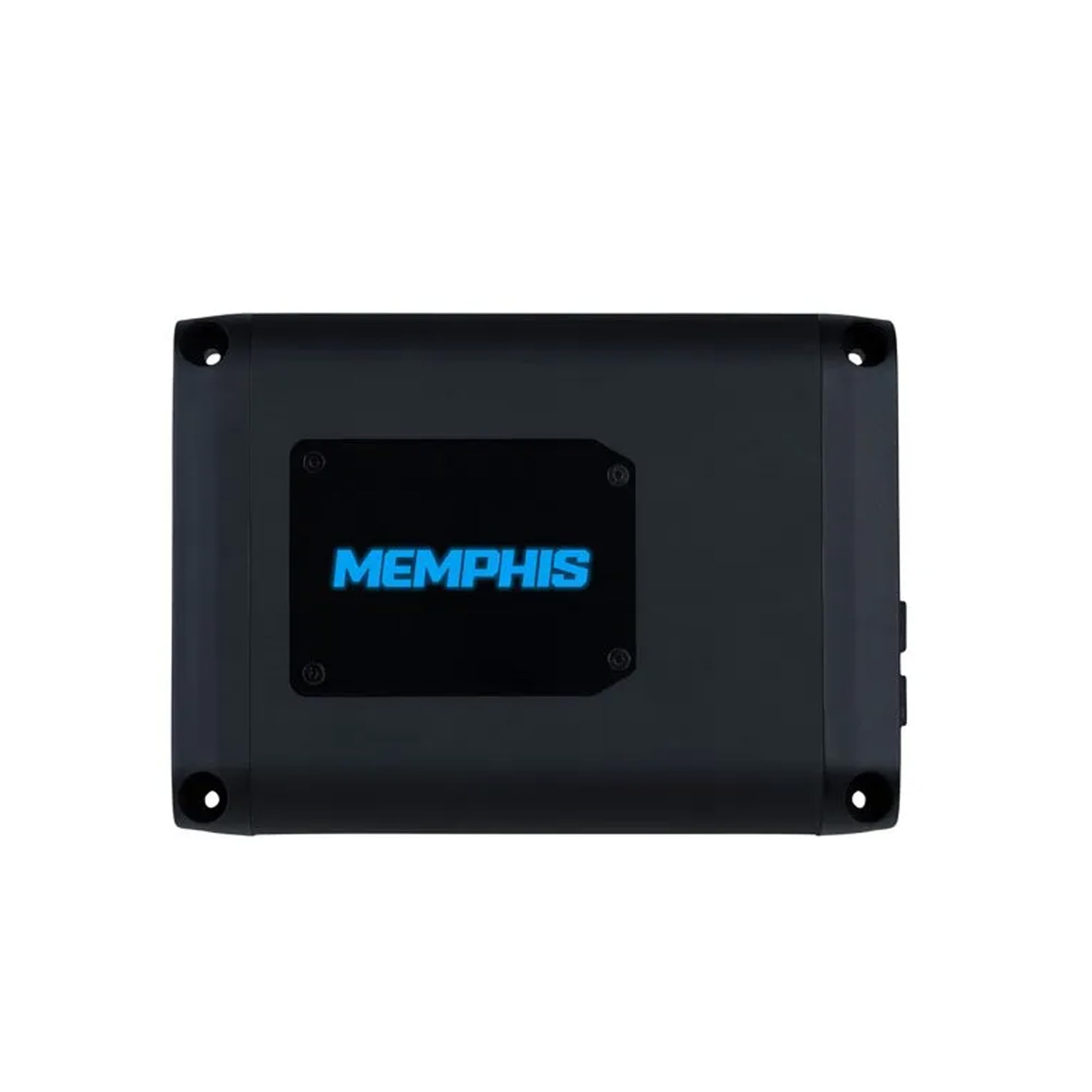

A standout design feature is the sleek acrylic top panel with blue LED backlighting, which illuminates the Memphis logo and conceals all gain and filter controls underneath. Additional undermount blue LED accent lighting gives the amplifier a floating, custom-installed appearance. The extruded aluminum heatsink keeps thermals in check even under sustained high-output use.

Key Features:

  • 800W RMS x 1 @ 1Ω | 500W RMS x 1 @ 2Ω | 300W RMS x 1 @ 4Ω
  • Class D topology — 1-ohm stable for multi-subwoofer configurations
  • 18dB/octave Butterworth low-pass crossover, variable 50–250 Hz
  • Variable subsonic filter, 10–50 Hz at 24dB/octave slope
  • Variable bass EQ boost, 0–12 dB at 45 Hz
  • RCA inputs accept signal levels from 200mV up to 6V (high- and low-level compatible)
  • Stereo RCA line outputs for daisy-chaining a second amplifier
  • Selectable amp turn-on (remote lead or signal sensing)
  • Top-mounted controls hidden beneath removable acrylic panel (2mm Allen key included)
  • Wired remote bass level control with 16-ft cable included
  • Blue LED top cover and undermount ground lighting
  • Extruded aluminum heatsink for efficient heat dissipation
  • Built-in protection against short circuit, overheating, and over/under battery voltage
  • Includes Certificate of Performance with measured RMS power output
  • Recommended amp wiring kit: 4GKIT

Specifications:

  • RMS Power @ 4Ω: 300W x 1
  • RMS Power @ 2Ω: 500W x 1
  • RMS Power @ 1Ω: 800W x 1
  • THD @ 4Ω: <1%
  • Signal-to-Noise Ratio: >85 dB
  • Frequency Response: 10 Hz – 250 Hz
  • Input Sensitivity: 200mV – 6V
  • Dimensions: 7.81" L x 5.7" W x 2.16" H

The PRX800.1V2 is an ideal choice for powering a single high-performance subwoofer or a parallel-wired dual-sub setup. Its compact dimensions make it easy to mount under a seat or in a trunk, while the comprehensive onboard controls allow precise tuning without external processors.
