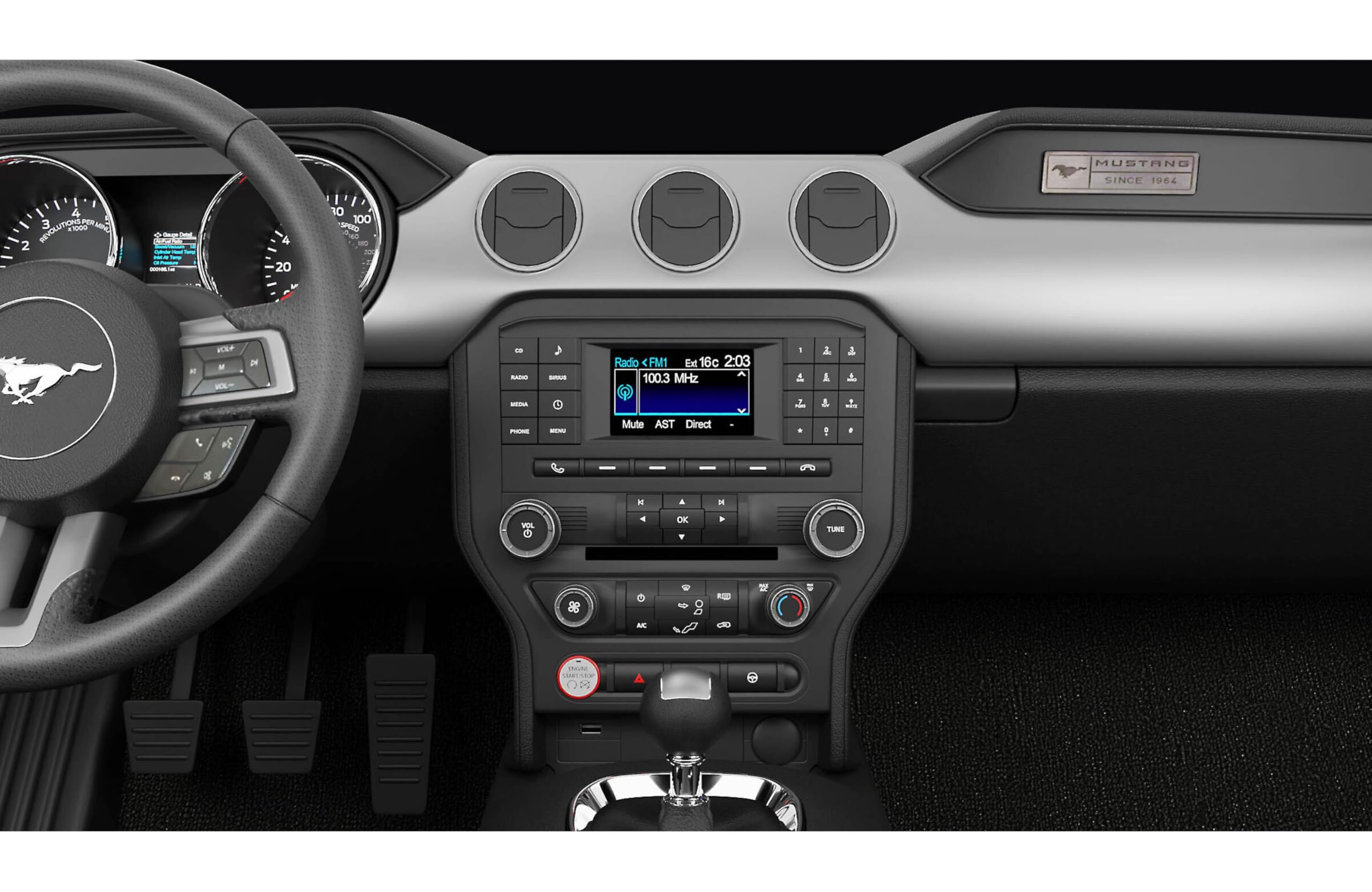

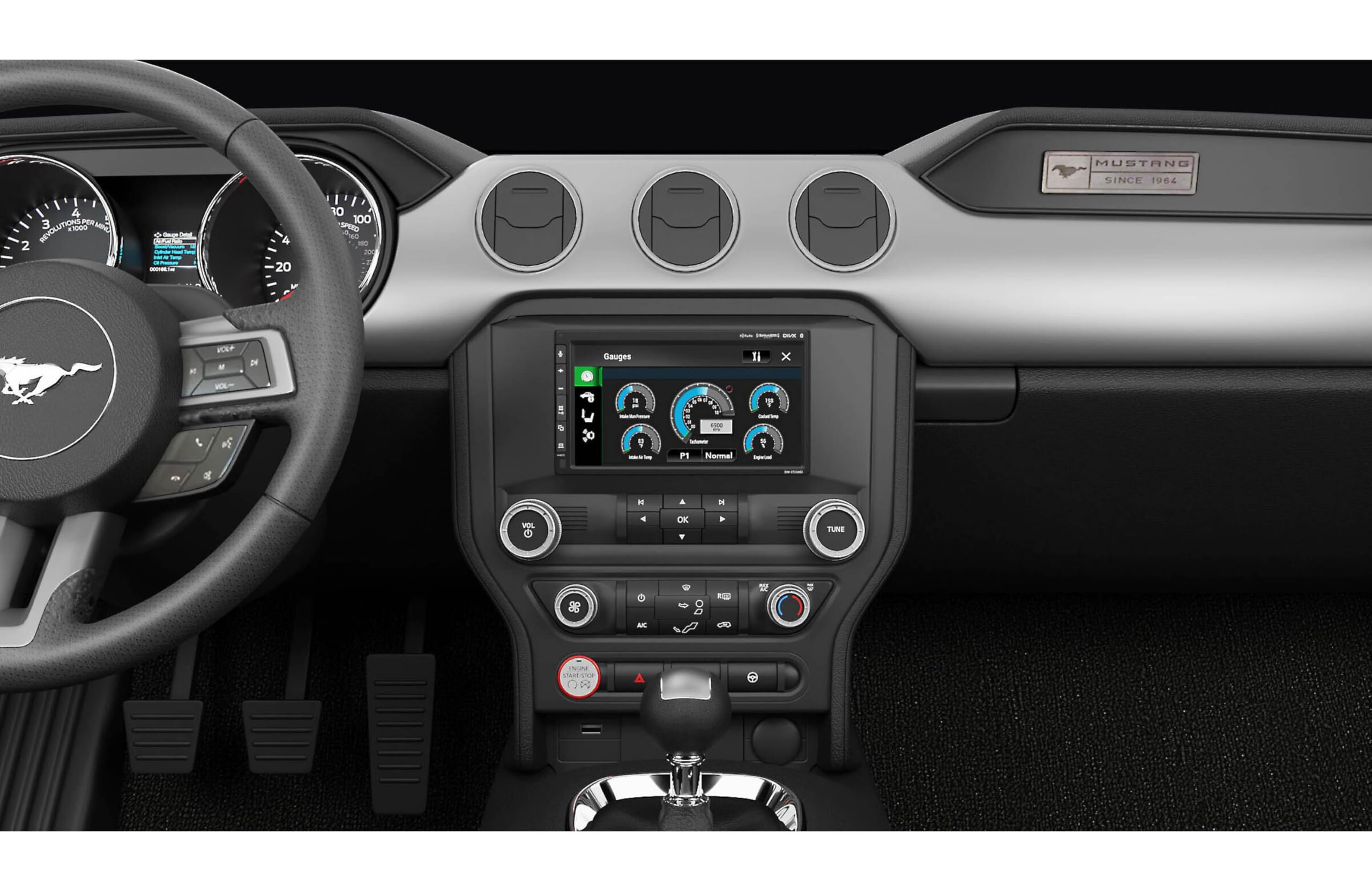

The iDatalink Maestro KIT-MUS2 is a complete OEM integration dash kit and vehicle wiring harness engineered for the 2015–2023 Ford Mustang equipped with a factory 4.2" LCD screen. When paired with the iDatalink Maestro RR or RR2 Car Radio Replacement Interface module (sold separately), this kit enables the installation of a Pioneer modular-style receiver with a 7", 8", or 9" floating touchscreen — all with a clean, factory-matched look and full retention of key OEM features.

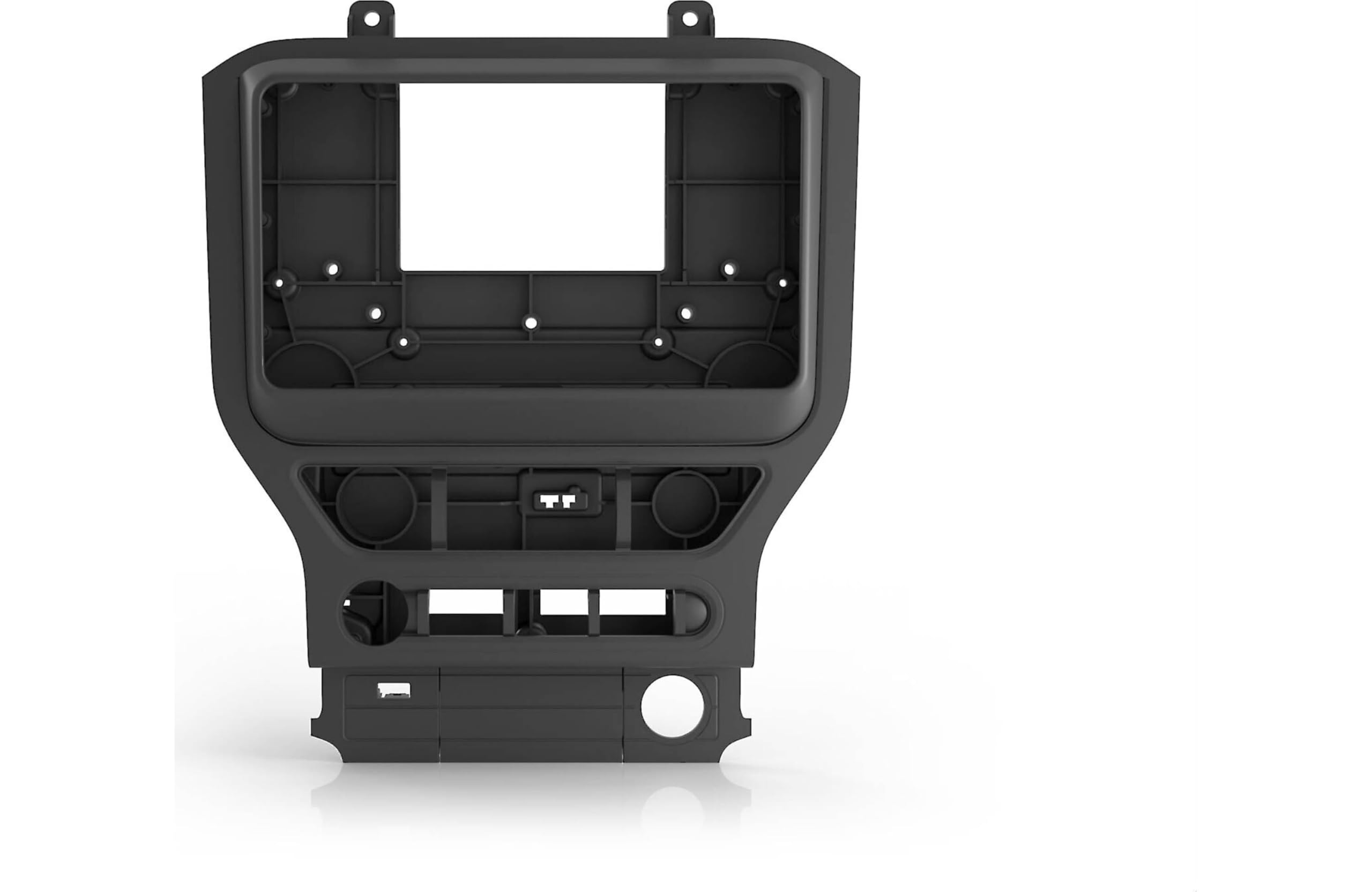

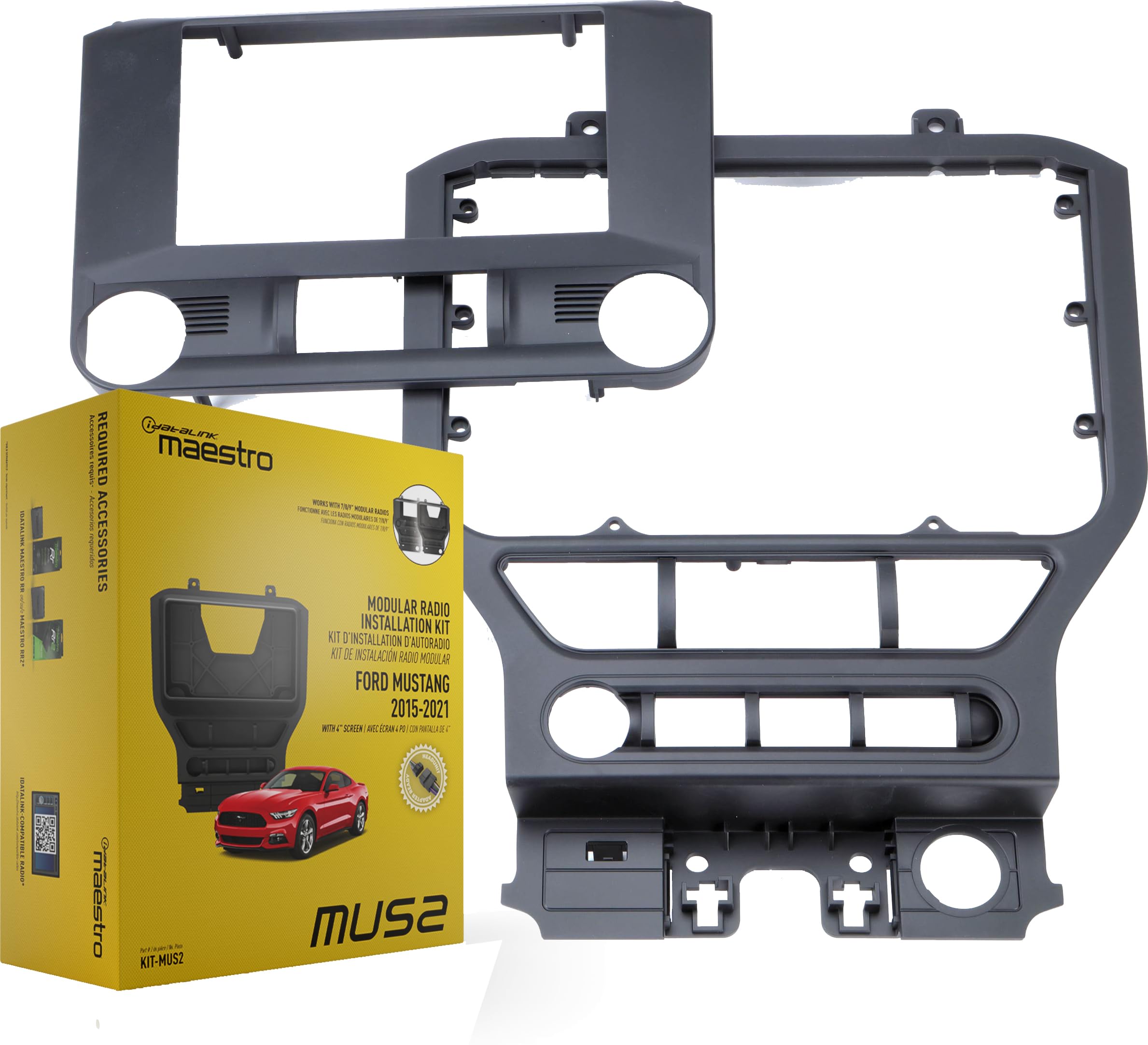

The kit includes a replacement dash panel built to match the contour, texture, and color of your factory Ford Mustang dash, along with interchangeable screen-size panels, a vehicle-specific T-harness, steel radio mounting brackets, and an antenna adapter. The T-harness is Maestro head-unit adapter ready for simplified, plug-and-play connections. Note: modification of the sub-dash is required for installation.

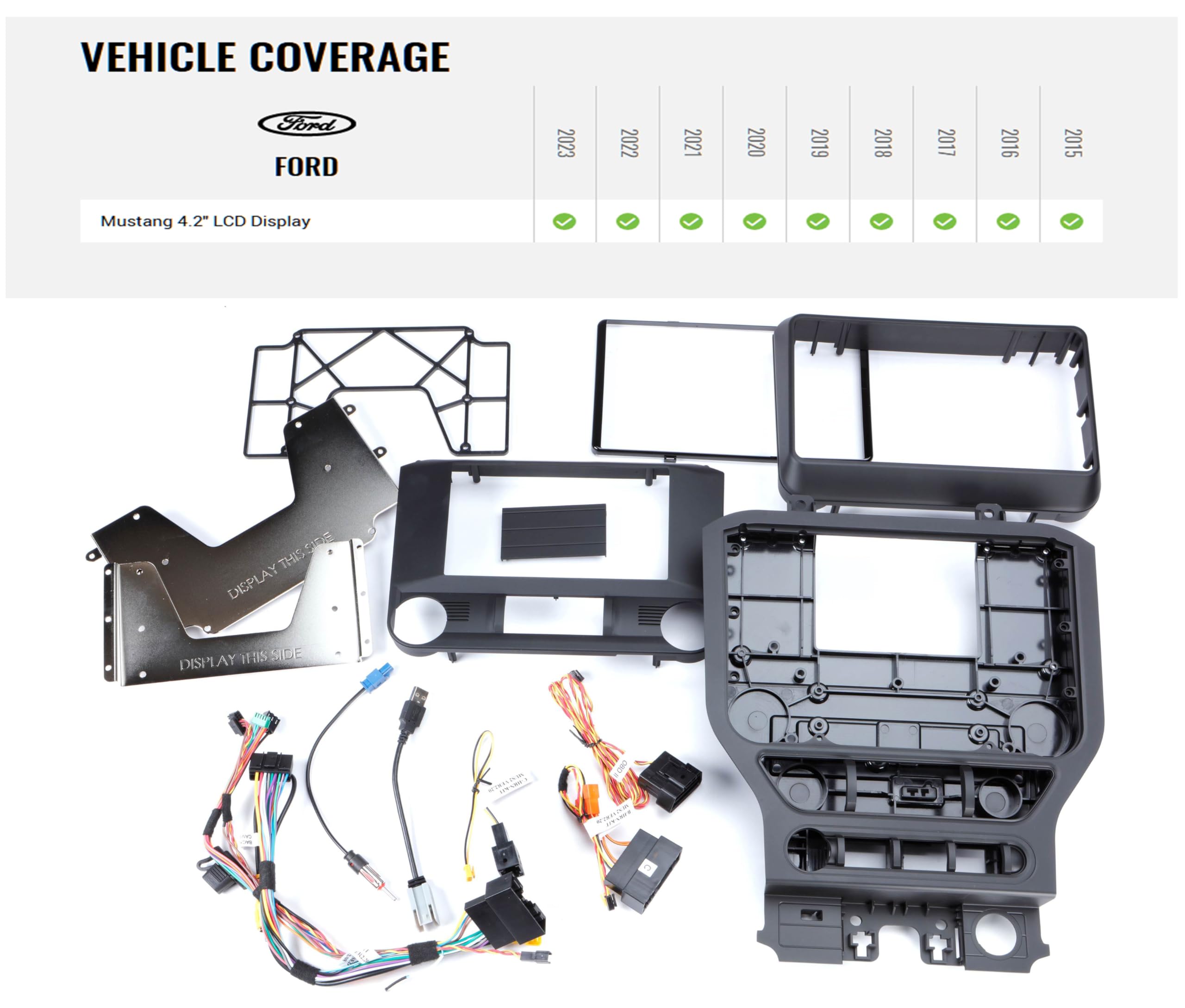

What's Included:
- OEM-matched replacement dash/radio bezel panel
- Vehicle-specific T-harness (Maestro head-unit adapter ready)
- Interchangeable panels for 7", 8", and 9" modular screen radios
- Steel radio mounting brackets
- Antenna adapter
- Factory USB mounting location
Retained Factory Features (when used with Maestro RR or RR2 module):
- Factory steering wheel controls with two function buttons and expandable radio functions
- Factory premium audio amplifier (including Sony & THX) with turn-on, fader, gain adjustment, DSP settings, and speed-compensated volume
- Factory backup camera with dynamic parking guidelines and park assist chimes
- Warning chimes and retained accessory power (R.A.P.)
- Secondary vehicle display (if equipped)
- Factory climate controls and factory menus

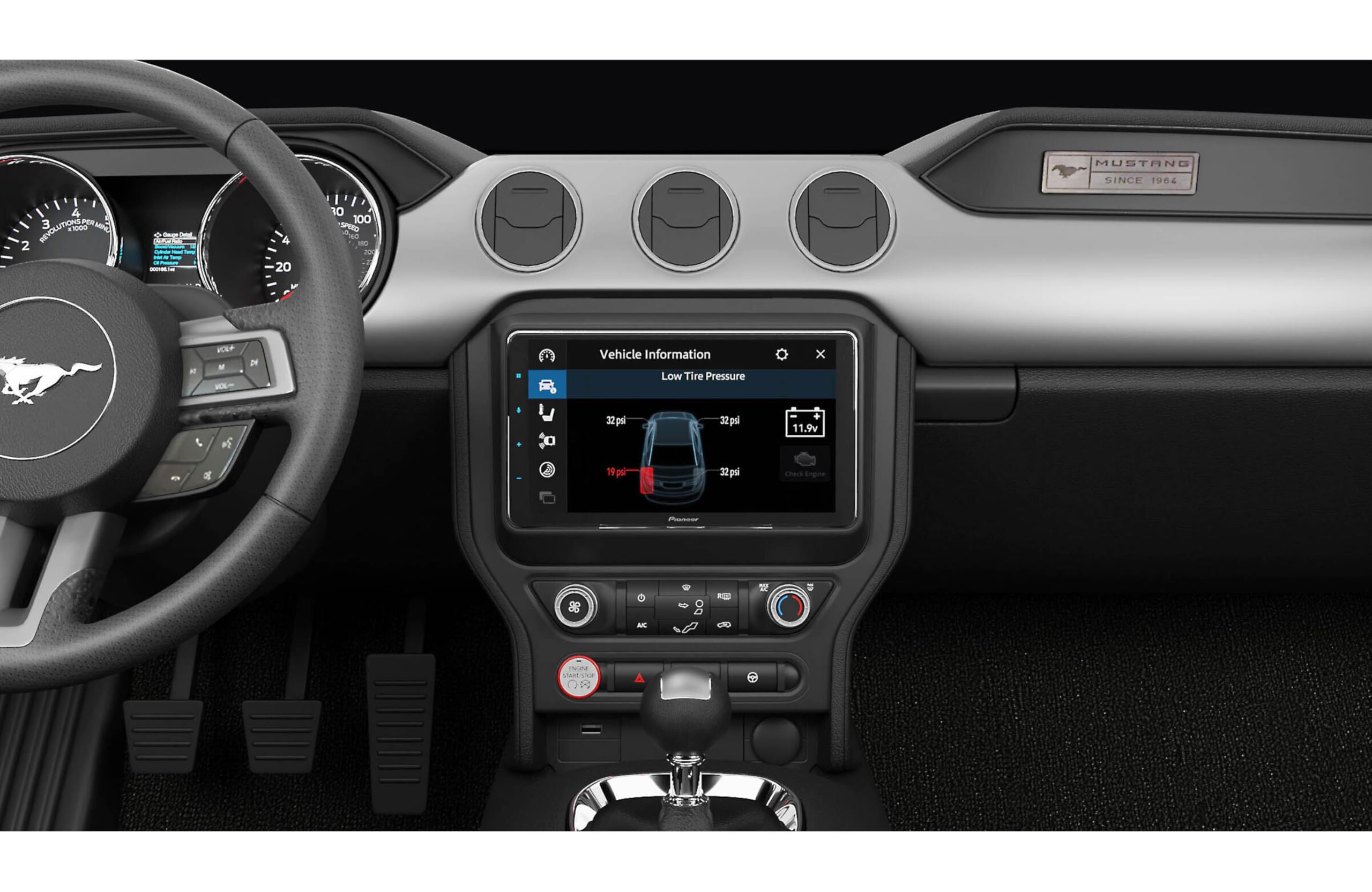

- Vehicle info: tire pressure display, battery voltage display, door open status with warning
- Performance gauges including selectable "Track Pack" gauges and read/reset engine codes
Outputs & Navigation Signals:
- Navigation outputs: parking brake, reverse light, and VSS (Vehicle Speed Sense)
- 12V/15A accessory power output
- Illumination output
Compatible Radios: Works with Pioneer modular-style receivers featuring a 7", 8", or 9" touchscreen monitor, including the DMH-C2550NEX, DMH-C5500NEX, DMH-WC5700NEX, and DMH-WC600NEX. An iDatalink Maestro RR or RR2 module (ADS-MRR or ADS-MRR2) is required and sold separately. Vehicle-specific firmware must be downloaded from iDatalink's Weblink Desktop application (available for Windows and Mac).
