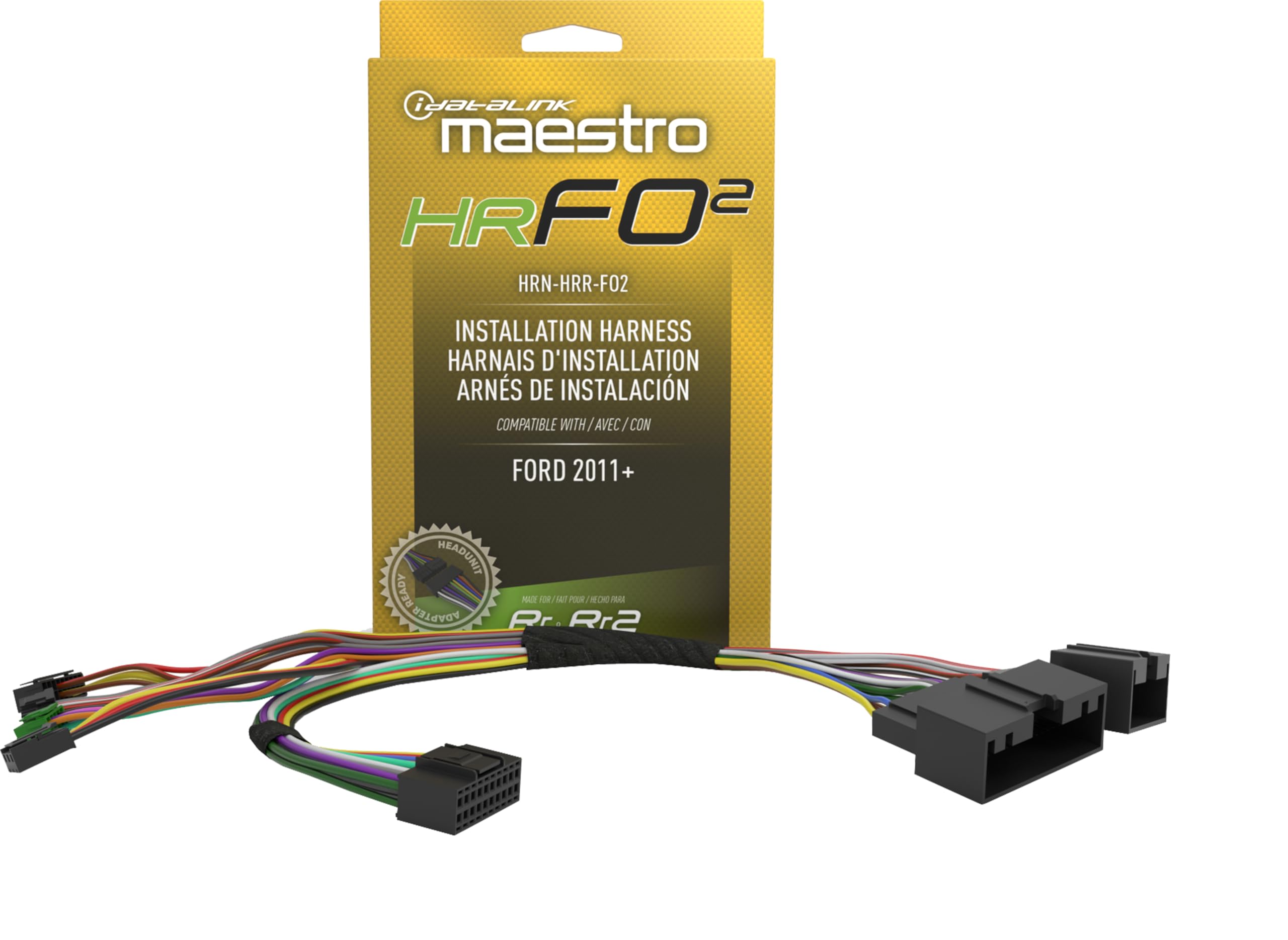

The iDatalink Maestro HRN-HRR-FO2 is a plug-and-play T-harness designed to simplify aftermarket stereo installation in select Ford vehicles equipped with the "My Ford Radio" and 4.3" screen. Working in conjunction with the Maestro RR (ADS-MRR) or RR2 (ADS-MRR2) interface module (sold separately), this harness allows you to replace your factory head unit while retaining key OEM features and factory-wired functions.
The radio side of the harness terminates in a universal 20-pin connector compatible with iDatalink's Direct T-Harness head unit adapters, enabling a true plug-and-play connection to select Alpine, Kenwood, JVC, Sony, and Pioneer iDatalink Serial Port-compatible receivers. For head units without a dedicated iDatalink direct harness, the 20-pin connector can be removed and each wire spliced directly to the aftermarket radio.
Retained Factory Features:
- Steering Wheel Controls: Factory steering wheel audio controls retained with two function buttons and expandable radio functions
- Factory Amplifier: Retains factory amplifier with turn-on signal (no fader control)
- Ford SYNC: Retains Bluetooth hands-free communication, audio streaming, and USB media player
- Backup Camera: Retains factory backup camera with parking guideline overlay (aftermarket radio must have composite video input)
- Climate Display & Control: Factory climate display and controls accessible through the compatible aftermarket head unit touchscreen
Added Features & Outputs:
- Tire pressure display, battery voltage display, read/reset engine codes, and door open status with warning
- Selectable performance gauges and "Track Pack" gauges
- Navigation outputs: parking brake, reverse light, and VSS (Vehicle Speed Sense)
- 12V/15A accessory power output
- Illumination output

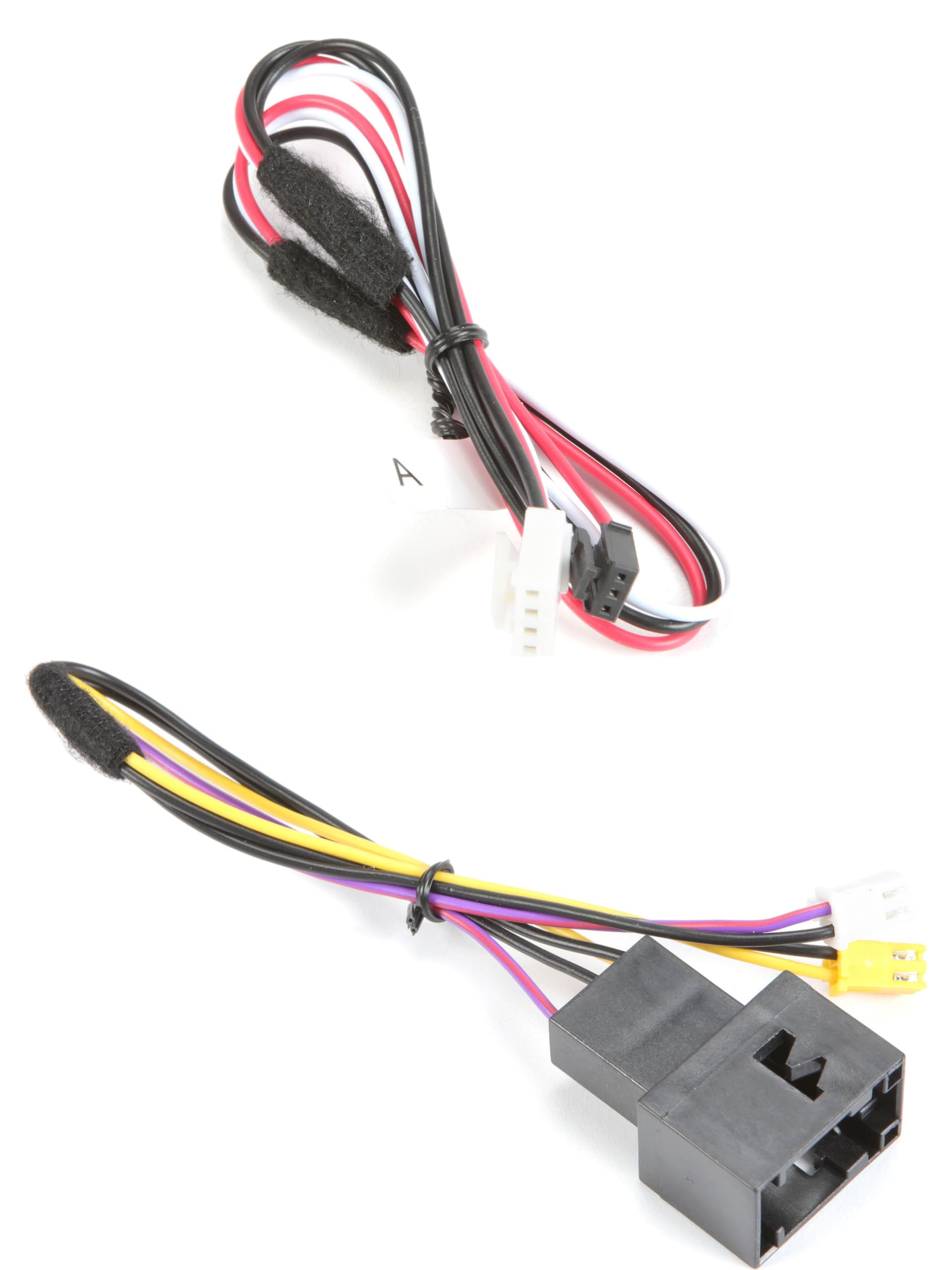

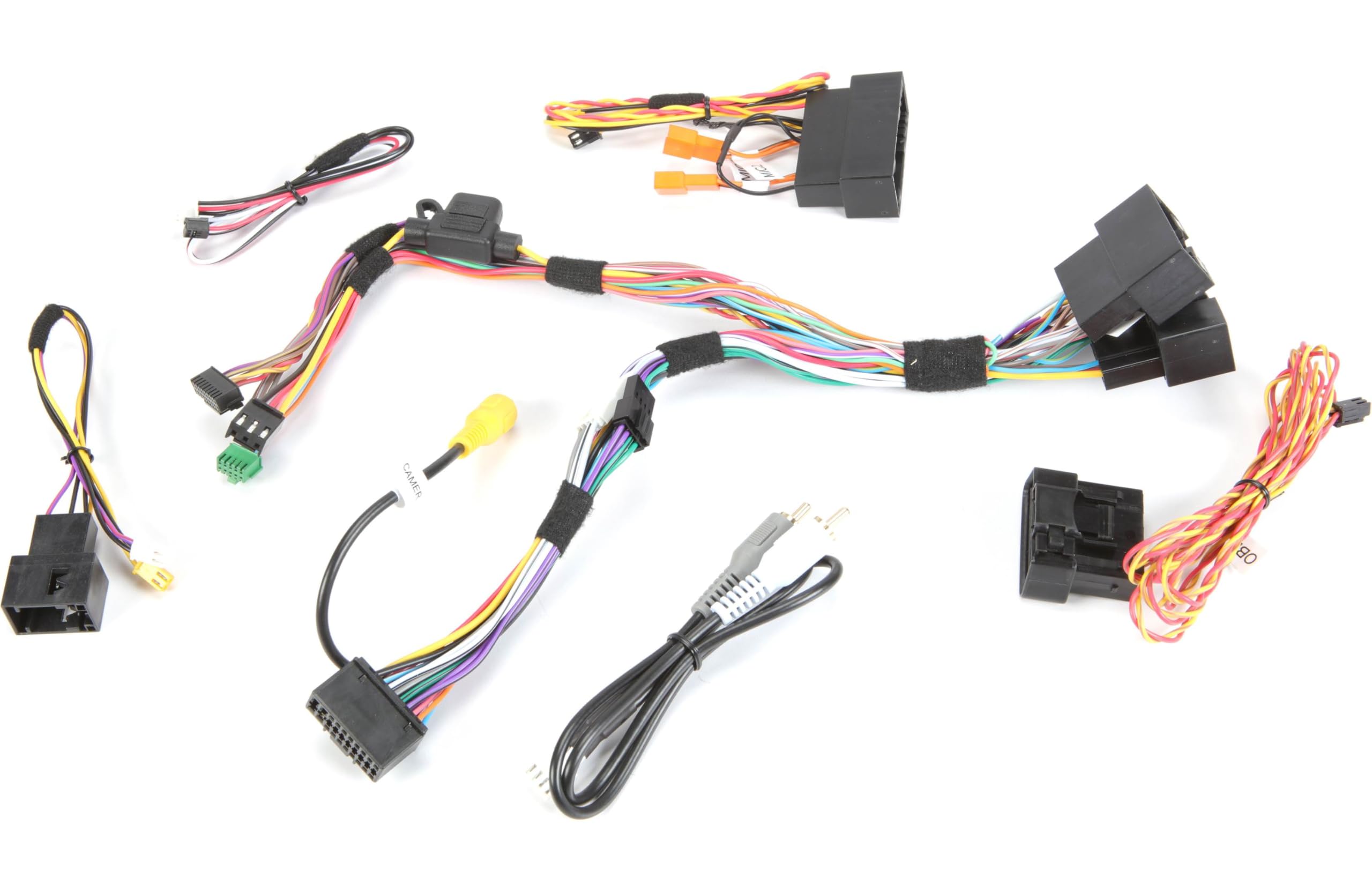

What's Included: Radio replacement harness, OBDII harness, front speaker pre-out harness, "A" harness, "B" harness, "C" harness, and instruction manual.

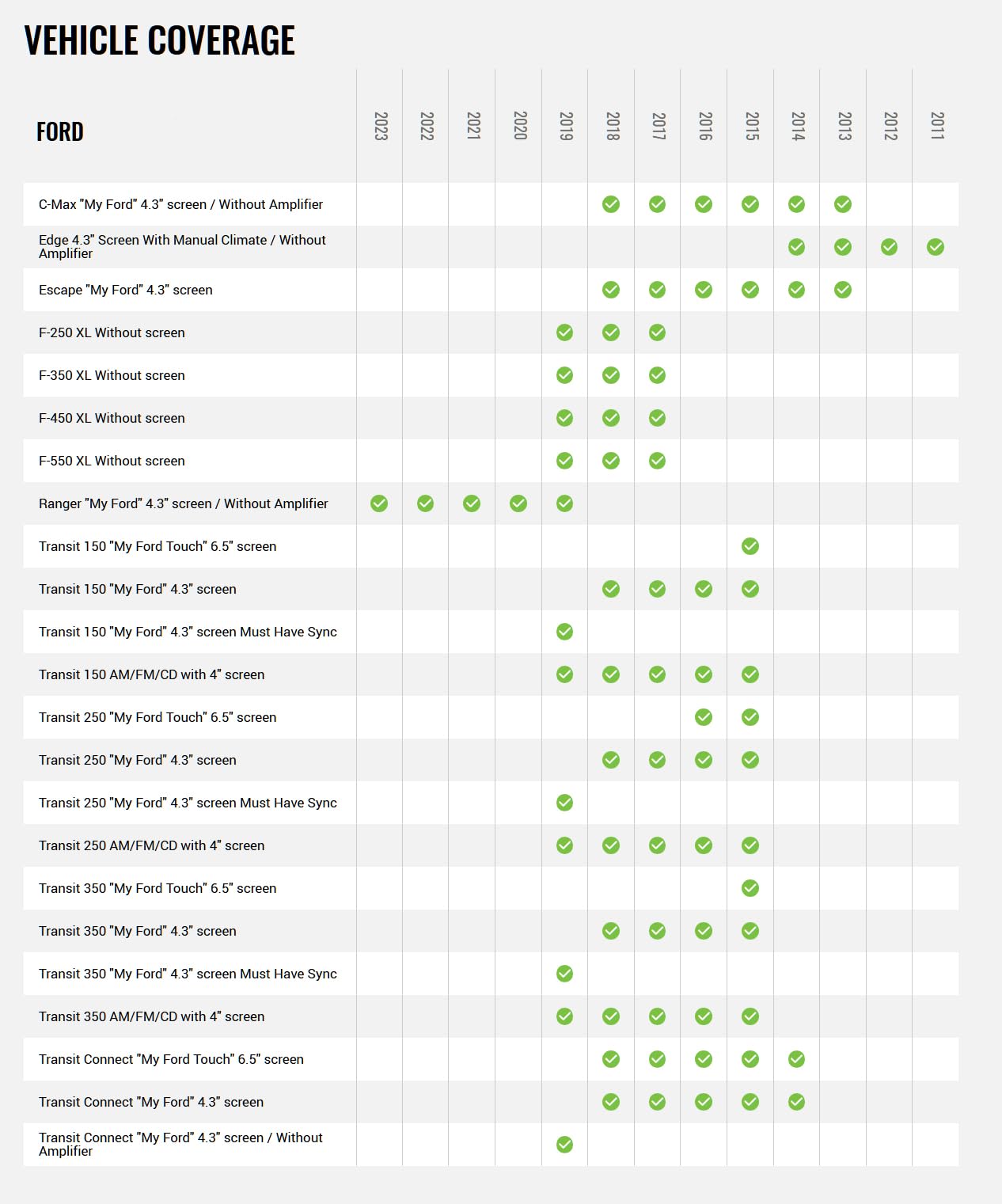

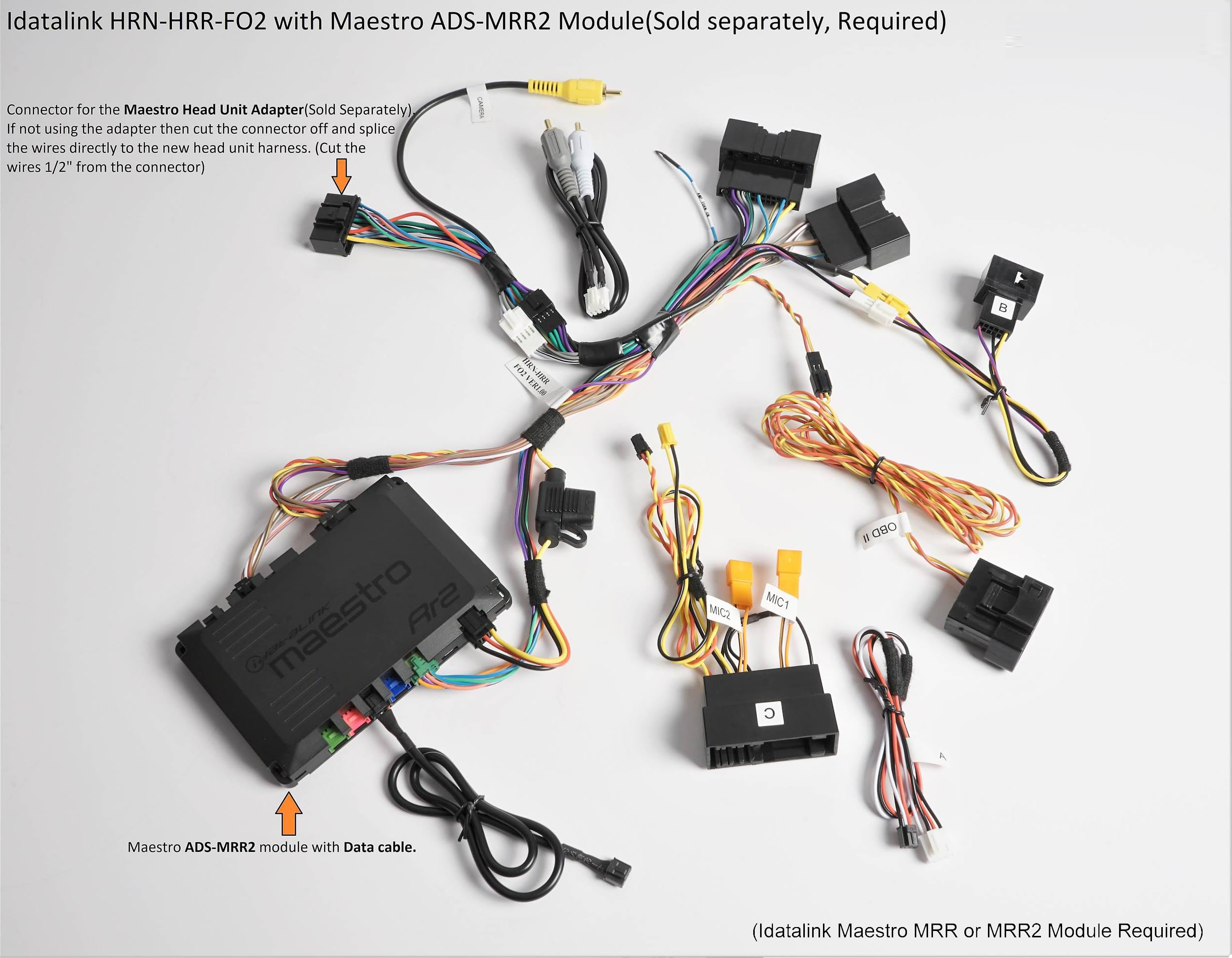

Installation Note: The HRN-HRR-FO2 requires an iDatalink Maestro ADS-MRR or ADS-MRR2 interface module and the corresponding iDatalink head unit adapter (ACC-HU-ALP1, ACC-HU-PIO1, ACC-HU-SON1, ACC-HU-KEN1, or ACC-HU-KEN2) — all sold separately. Use the iDatalink vehicle fit guide to confirm compatibility for your specific vehicle and audio configuration.
