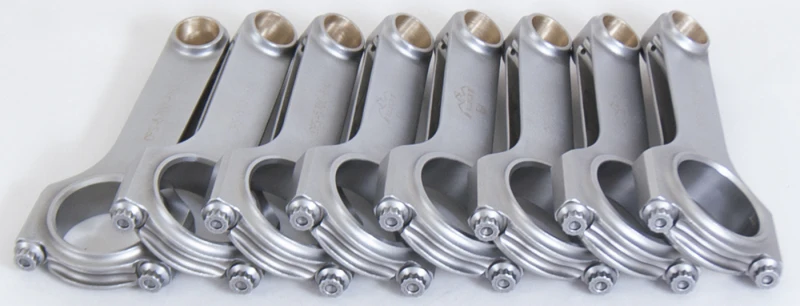

Eagle CRS5787T4D-1 H-Beam Connecting Rod 4th Gen Single Toyota 1UZ-FE

Manufacturer

Part Number

CRS5787T4D-1
Black Friday Price

$176.62

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Eagle CRS5787T4D-1 is a single 4th generation (4D) H-Beam connecting rod engineered for high-performance Toyota 1UZ-FE V8 builds. Sold individually, this rod is ideal for replacing a single damaged unit or for builders who need to match a specific weight class on a custom rotating assembly.

Eagle's 4th generation H-Beam design features thicker webbing and a reinforced beam cross-section compared to earlier 3D rods, delivering improved tensile and compressive strength under extreme loads. The big end incorporates added material at the parting line, bolt clamping area, and cap webbing, significantly improving big end rigidity and reducing the risk of bearing failure under very high power output.

Key Features:

  • 4th Generation (4D) Design — thicker webbing and beam for maximum strength and big end rigidity
  • Forged 4340 Steel — proprietary alloy exceeding standard ASME 4340 in tensile strength, fatigue life, and modulus of elasticity
  • Two-Piece Forging — rod cap forged separately so grain runs perpendicular to load forces for superior fatigue resistance
  • 7/16" ARP 2000 Rod Bolts — rated at 220,000 psi, standard on all 4D rods
  • Silicon Bronze Small-End Bushing — supports full-floating piston pin configurations
  • Precision Cap Alignment Sleeves — positively locate the rod cap to maintain big end bore size and eliminate cap walk
  • Multi-Stage Heat Treated — for optimized hardness and toughness throughout
  • 100% Machined Surfaces — all surfaces fully machined for exact tolerances
  • Shot Peened — stress relieves the metal surface for improved fatigue life
  • X-Rayed, Sonic Tested & Magnafluxed — each forging individually inspected for internal defects
  • Sold Individually (Single Rod) — specify weight class required at time of order

Specifications:

  • Center-to-Center Length: 5.787" (147mm)
  • Rod Bolt: 7/16" ARP 2000
  • Application: Toyota 1UZ-FE V8
  • Quantity: 1 Rod

Installation hardware, torque specifications, and ARP moly bolt lubricant are included. Torque rod bolts to specification using ARP moly lube only. Eagle recommends specifying weight when ordering single rods to ensure proper balance matching with the rest of your rotating assembly.
