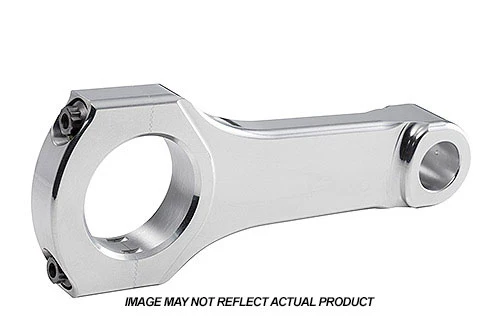

Carrillo FE-328>-65394H-1 Pro-H Straight H-Beam Connecting Rod Single

The Carrillo FE-328>-65394H-1 is a single Pro-H straight H-beam connecting rod from CP-Carrillo, engineered for high-performance and motorsport applications. Built to withstand extreme engine loads, this rod is part of Carrillo's renowned Pro-H line — widely recognized as among the strongest H-beam connecting rod designs available for performance and racing engines.

Each rod is precision-forged in the USA from CP-Carrillo's proprietary Carrilloy steel — a chrome, nickel, moly, vanadium alloy (4330m) that meets all VAR (vacuum arc re-melt) ASTM standards. The oversized forging process ensures correct grain flow throughout the rod and eliminates surface inclusions for maximum fatigue resistance and consistent strength.

Key Specifications:

• Beam Style: Straight H-beam
• Material: Forged Carrilloy steel (chrome/nickel/moly/vanadium 4330m alloy)
• Center-to-Center Length: 5.394 in.
• Big End Bore Diameter: 1.8557 in.
• Big End Width: 0.821 in.
• Pin End Bore Diameter: 18.5mm
• Pin End Width: 0.825 in.
• Wrist Pin Style: Floating
• Cap Retention: Cap screw
• Rod Bolt Size: 3/8 in.
• Rod Bolt Material: H-11 tool steel (WMC), 12-point head
• Approximate Rod Weight: 504g (per rod)
• Sold As: Single connecting rod (qty 1)

Quality & Manufacturing:

• Manufactured in Irvine, California, USA
• Each part is magnafluxed a minimum of twice during production
• Rockwell hardness tested to validate heat treat procedure
• All critical CNC machines equipped with probing for dimensional validation
• Final controlled shot peen operation for improved fatigue life
• Each rod laser-etched with a job number for full traceability
• Moly-based fastener lubrication included

The Carrillo Pro-H H-beam design delivers the highest strength-to-weight ratio for its class, making it the preferred choice for serious engine builders in road racing, drag racing, and high-performance street applications.
