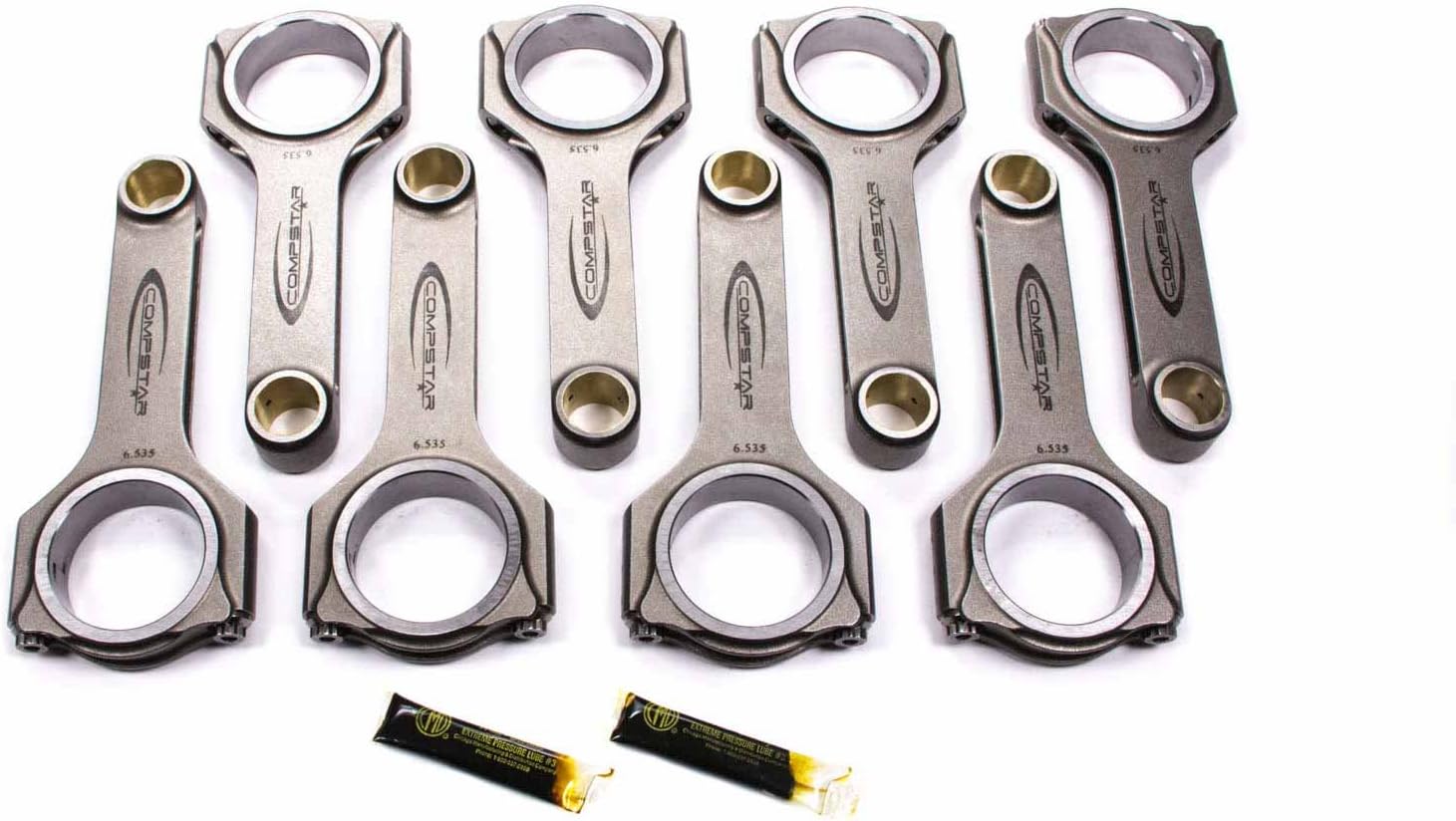

Callies CSB6700ES3B9AH Compstar H-Beam Connecting Rods Big Block Chevy 6.700" Length 2.200" Journal

Part of: Callies Compstar H-Beam Connecting Rods Big Block Chevy

Other options in this family: Callies CSB6800ES3B9AH

Manufacturer

Picture for manufacturer Callies

Part Number

CSB6700ES3B9AH
4 reviews
Sale Price

$823.99

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Callies CSB6700ES3B9AH Compstar H-Beam Connecting Rods represent high-value connecting rod design engineered specifically for Big Block Chevy applications. Produced from heat-treated and stress-relieved 4340 material, these H-beam Compstar rods are fully machined with a shot-blasted stress riser-free surface.

Key Specifications:

  • 6.700" center-to-center length
  • 2.200" big end journal diameter
  • 0.990" floating wrist pin
  • Bushed pin end
  • ARP L19 rod bolts included
  • Standard bolt torque: 92 ft-lbs (with Callies E.P.#3 lube)

Performance Features:

  • Designed and produced with engineering and finishing advancements to make engine builds trouble-free and finished products reliable
  • Finished and sized in Callies' Ohio facility with every detail carefully analyzed to maximize repeatability and dependability
  • Maintains dimensional repeatability through lengthy stress relief process and multiple re-torque processing
  • All lengths are stroker clearanced

The original Compstar H-beam rods were conceived around the idea that high quality and affordability can come in the same package, with dimensional repeatability and proper clearances for high performance use right out of the box. These connecting rods are ideal for naturally aspirated and mildly boosted Big Block Chevy engines rated up to 1,000 horsepower.

Products specifications

Advertised Horsepower Rating (hp)

850 hp

Advertised RPM Rating

7,500 rpm

Approximate Connecting Rod Weight (g)

825

Balanced

Yes

Big End Bore Diameter (in)

2.3250 in.

Big End Width (in)

0.990 in.

Cap Retention Style

Cap screw

Clearanced for Stroker

Yes

Connecting Rod Beam Style

H-beam

Connecting Rod Bolt Brand

ARP

Connecting Rod Bolt Diameter

7/16 in.

Connecting Rod Bolt Head Style

12-point

Connecting Rod Bolt Material

L19 alloy

Connecting Rod Finish

Shot-peened

Connecting Rod Length Center To Center (in)

6.700 in.

Connecting Rod Material

Steel

Fastener Yield Strength (psi)

230,000 psi

Magnafluxed

Yes

Notes

Custom pistons required when using connecting rods with any length other than OE.

Pin End Bore Diameter

0.990 in.

Pin End Width (in)

1.050 in.

Quantity

Sold as a set of 8.

Remanufactured

No

Rod Journal Diameter (in)

2.200 in.

Tool

Stroker Combinations

Weight Matched Set

Yes

Wrist Pin Style

Floating
