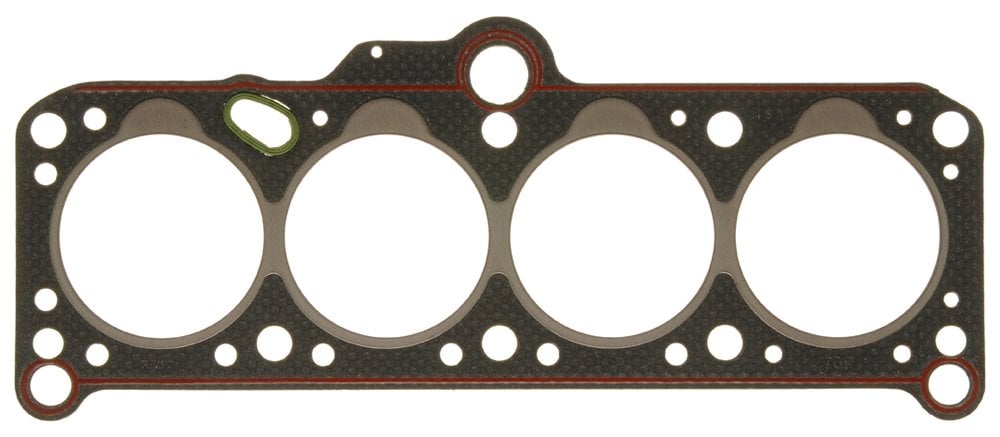

Ajusa 10025200 Engine Cylinder Head Gasket Composite Fiber-Steel

The Ajusa 10025200 is a replacement engine cylinder head gasket engineered to seal the combustion chamber, coolant passages, and oil galleries between the cylinder head and engine block. Constructed from a composite fiber-steel-fiber material with a silicone bead, this gasket provides reliable sealing performance and resistance to heat and pressure. The gasket measures 1.4 mm in thickness with a cylinder bore diameter of 78.5 mm.

Key Features:

• Material: Composite fiber-steel-fiber with silicone bead (FBXS)
• Thickness: 1.4 mm
• Cylinder bore diameter: 78.5 mm

Ajusa has been manufacturing gaskets and engine sealing components in Spain since 1972, offering one of the world's largest ranges of gaskets for European and Asian vehicle applications. This head gasket is designed for select 1981–1983 Volkswagen models. Note: head bolt replacement is recommended at the time of installation — consult the head bolt set catalog for the appropriate reference.
