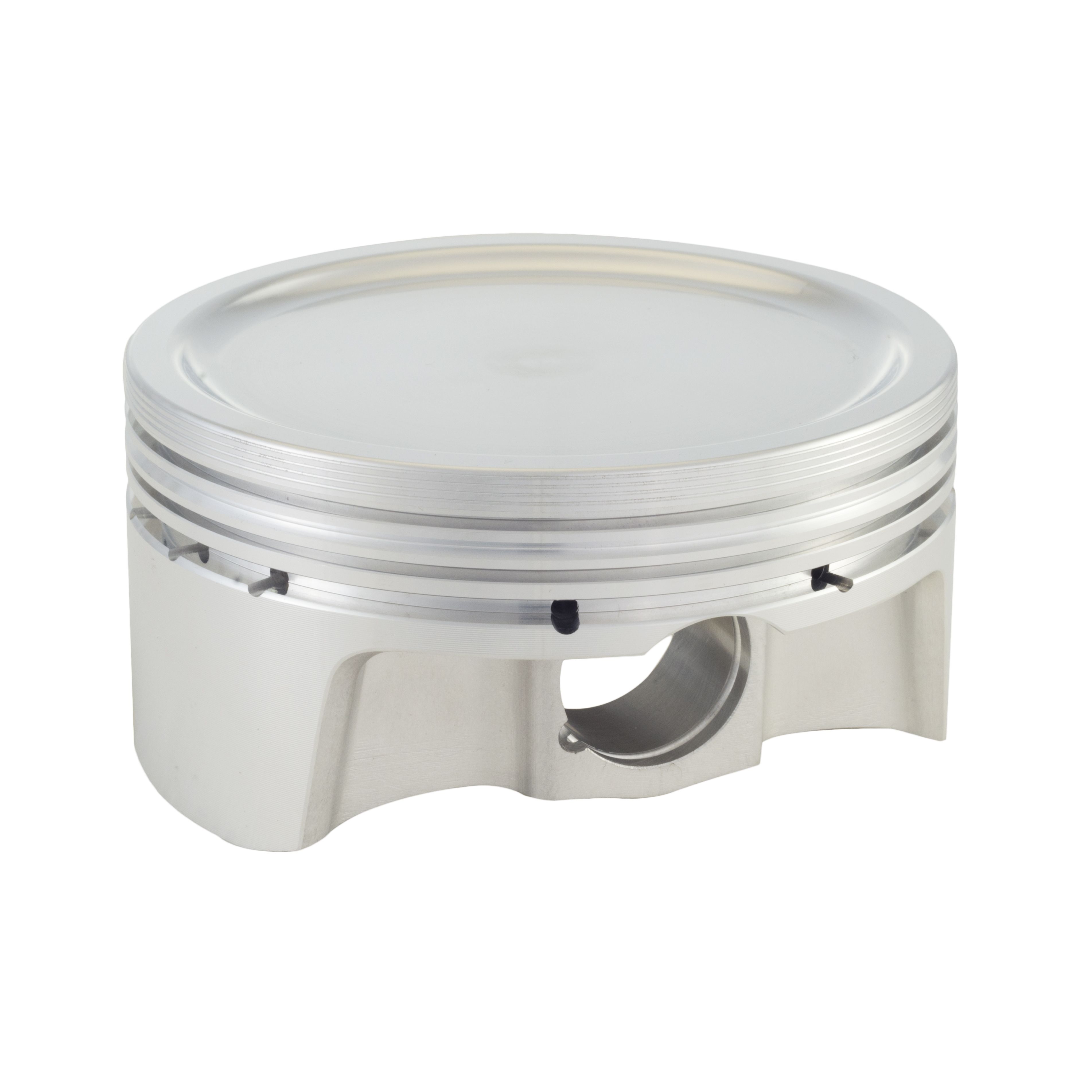

Carrillo BF9857-020-8 CPP Forged Piston Set Ford 4.6L 3V 3.572 Bore -9cc Dish

Manufacturer

Part Number

BF9857-020-8
Sale Price

$1,025.44

Estimated ship date Saturday, November 28

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

Designed as part of CP-Carrillo's renowned Bullet Race Series, these pistons are manufactured in the USA from premium 2618 forged aluminum alloy, making them well-suited for power-adder applications including superchargers, turbochargers, and nitrous oxide systems.

Each piston features a 3.572-inch bore, a -9cc dish combustion chamber configuration, and a 9.3:1 compression ratio — providing an ideal balance of power and durability for high-performance street and track builds. The set includes wrist pins and a precision ring package designed for severe-duty use.

Key Specifications:

  • Application: Ford 4.6L 3-Valve Modular Engine
  • Bore: 3.572 in (0.020 in overbore)
  • Stroke: 3.543 in
  • Rod Length: 5.932 in
  • Compression Height: 1.220 in
  • Head Type: 3-Valve
  • Dome/Dish Height: -0.08 in (-9cc dish)
  • Compression Ratio: 9.3:1
  • Wrist Pin: 0.866 in diameter x 2.500 in length
  • Ring Thickness: 1.5mm / 1.5mm / 3.0mm

Key Features:

  • Forged from 2618 aluminum alloy for superior strength under high heat and pressure
  • Accumulator groove reduces ring flutter and improves combustion seal
  • Dual forced pin oilers provide enhanced lubrication to the wrist pin bore
  • 1.5mm steel gas-nitride top ring, 1.5mm Napier second ring, and 3.0mm 3-piece oil ring package included
  • Advanced barrel skirt profile for reduced piston noise and improved oil control
  • Balanced within one gram per set for smooth, high-RPM operation
  • Wrist pins included at no additional charge
  • Proudly made in the USA

CP-Carrillo's Bullet Race Series piston sets deliver the same race-proven engineering found in professional motorsport engines, making the BF9857-020-8 an excellent choice for any serious Ford 4.6L 3V performance build.
