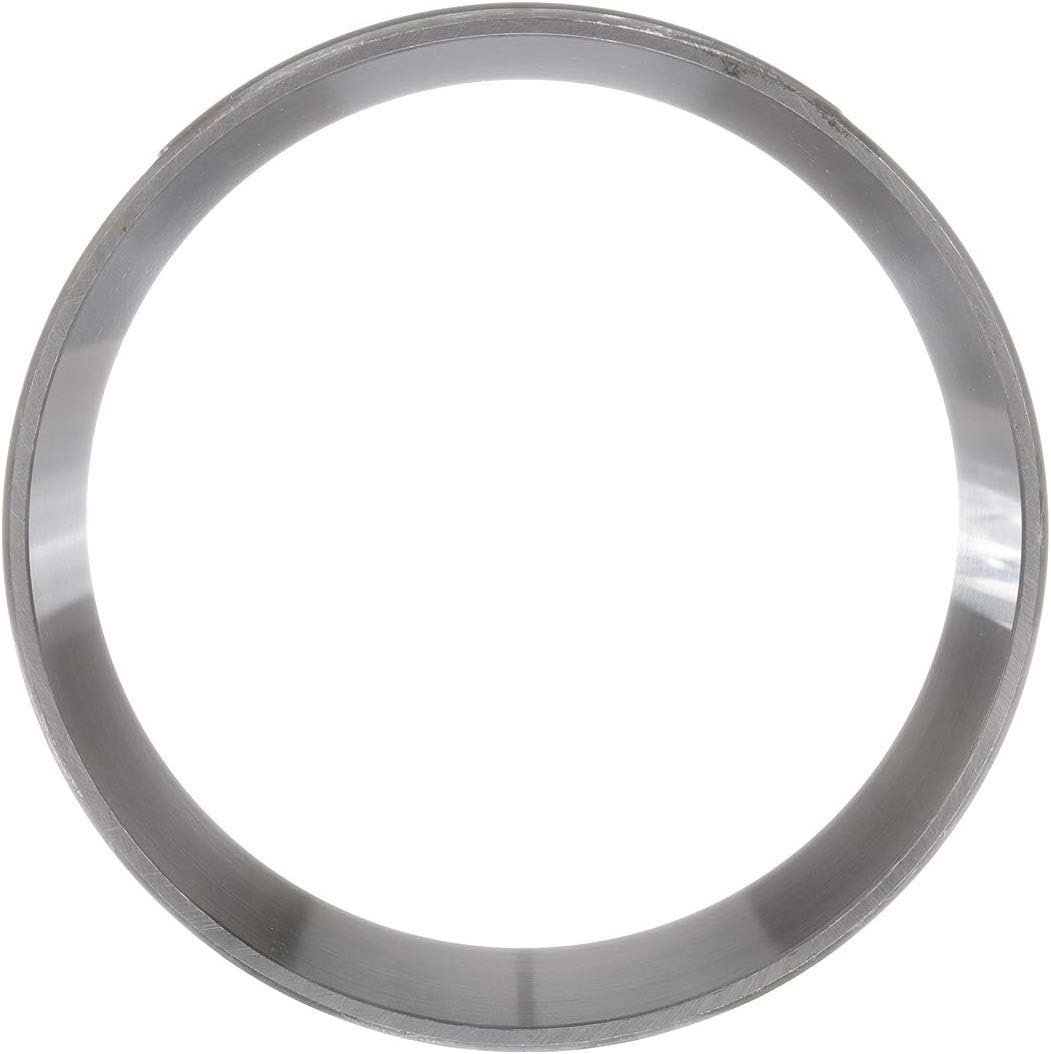

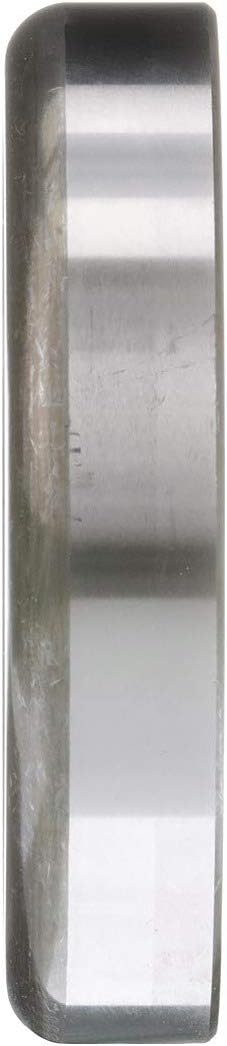

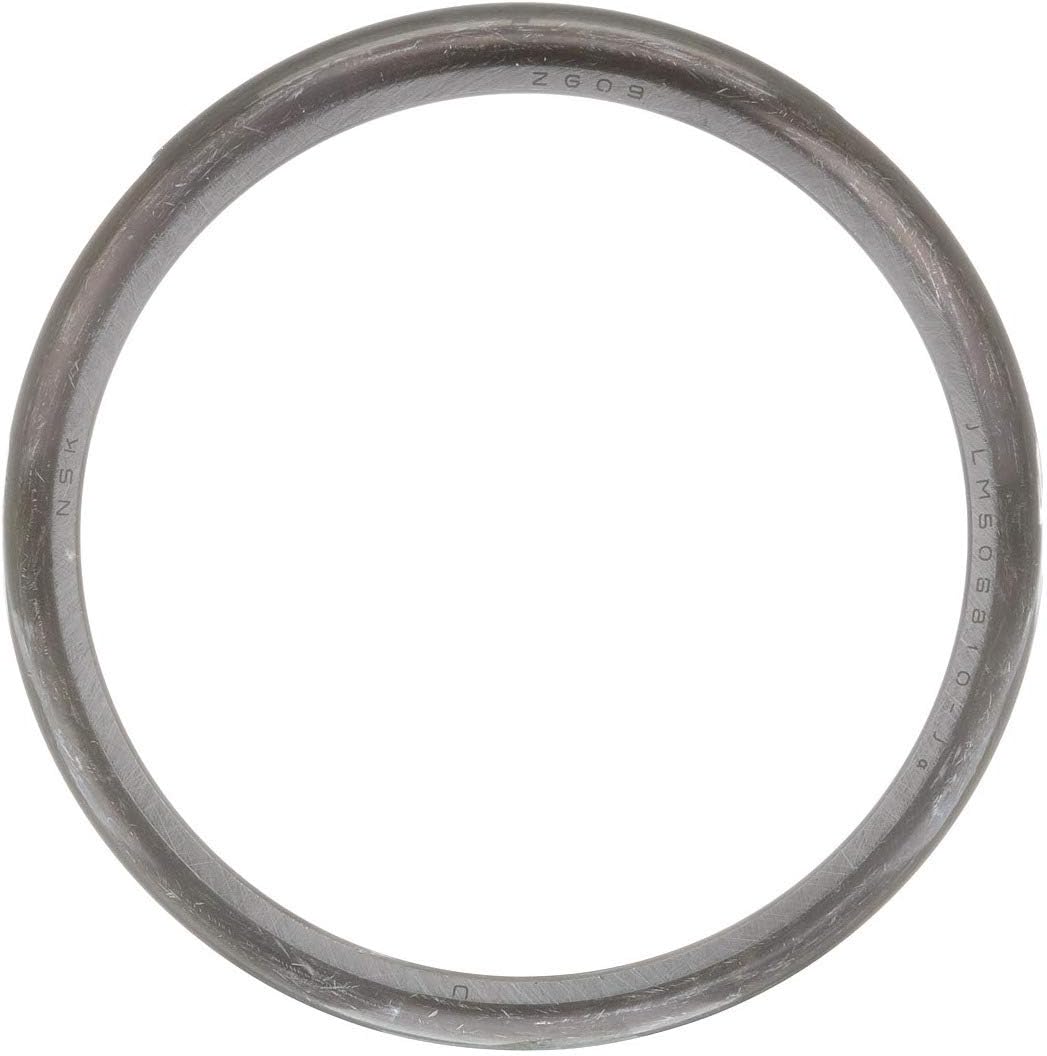

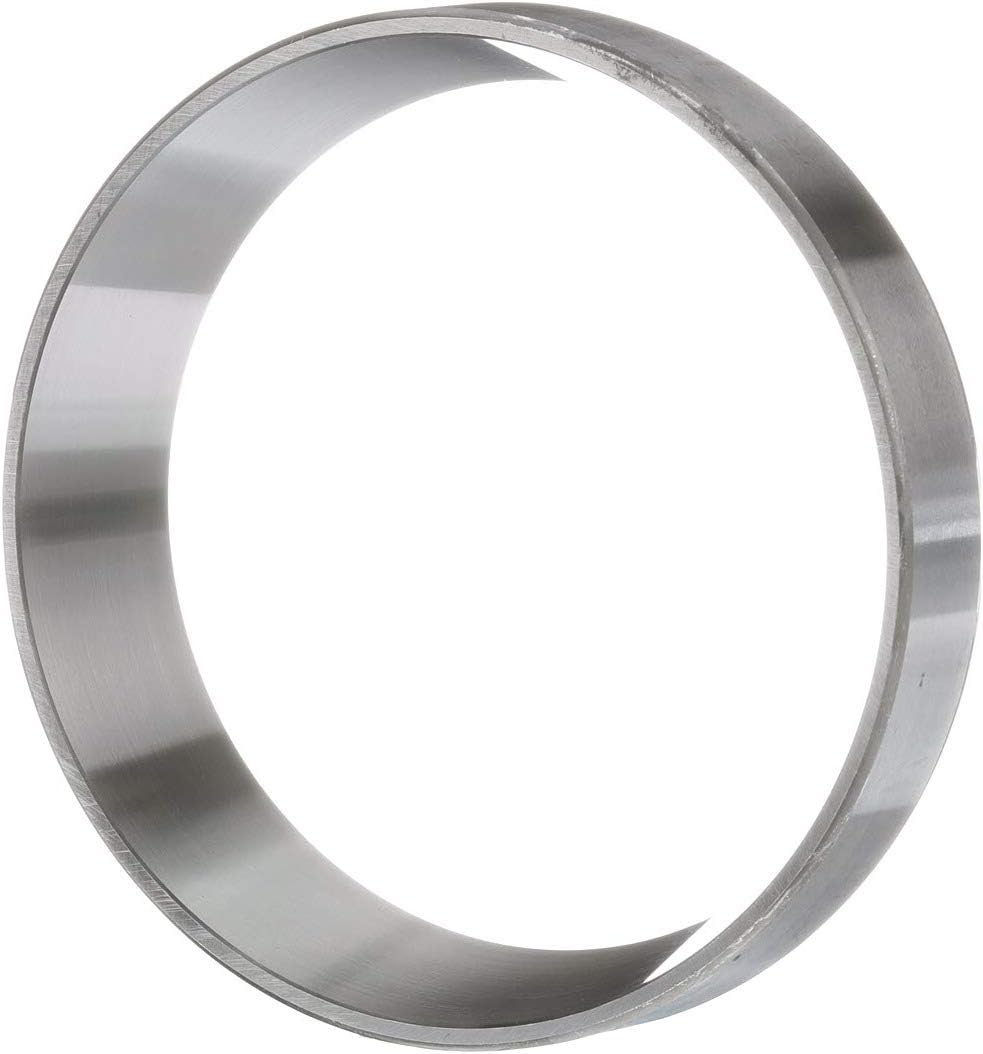

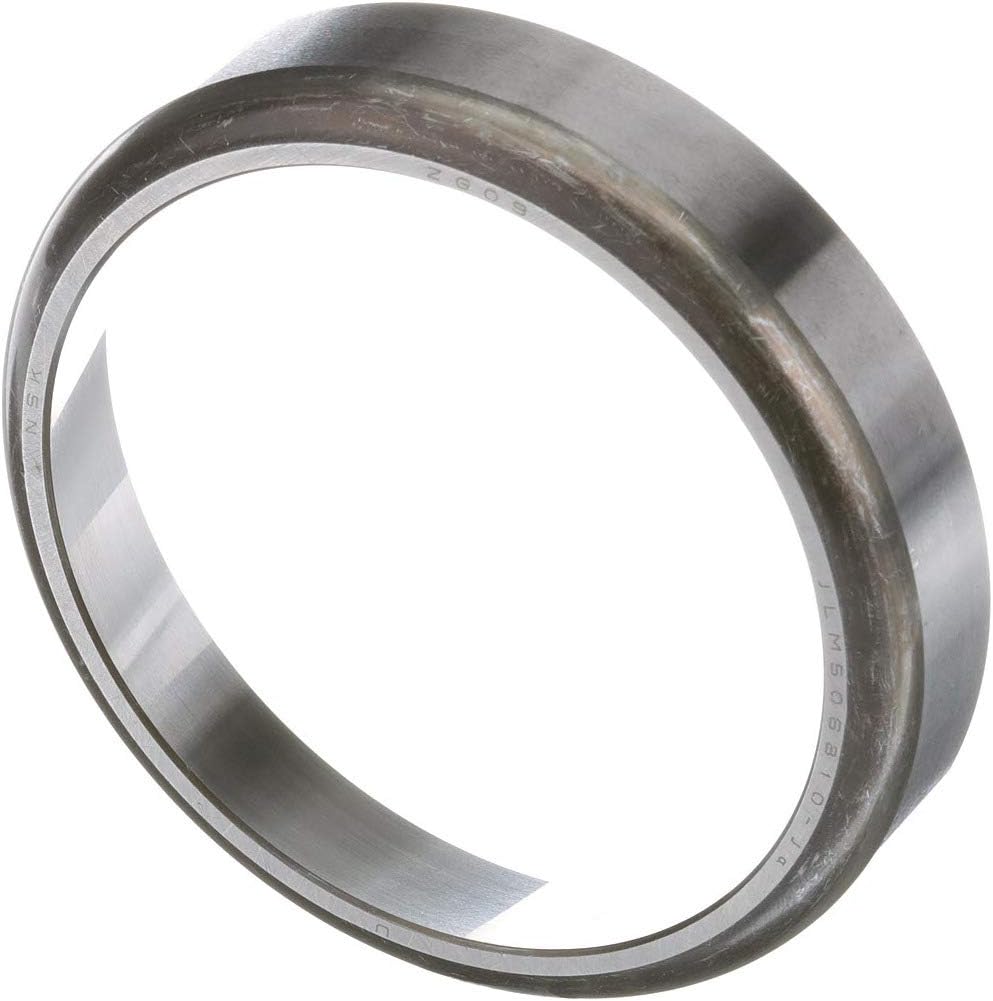

NSK JLM506810 Tapered Roller Bearing Cup

The NSK JLM506810 is a precision-engineered tapered roller bearing cup (outer ring) designed for demanding automotive and industrial applications. This component features a 90mm outer diameter and is manufactured to exacting standards for reliable performance in high-load environments.

Key Features:

• Outer diameter: 90mm with 23mm width
• Precision-ground raceways for even load distribution
• Premium alloy steel construction for maximum durability
• Designed to pair with JLM506849 cone assembly
• Capable of handling combined radial and axial loads

Tapered roller bearing cups like the JLM506810 are separable components that work in conjunction with cone assemblies to support heavy loads in both radial and thrust directions. Commonly used in wheel bearing assemblies, gearboxes, axles, and transmission systems, this NSK bearing cup delivers the high load capacity and rigidity required for automotive, marine, RV, and industrial machinery applications.

Specifications: 90mm OD × 55mm bore compatibility × 23mm width. Both the cup and cone should be replaced together to maximize bearing life and reliability.
