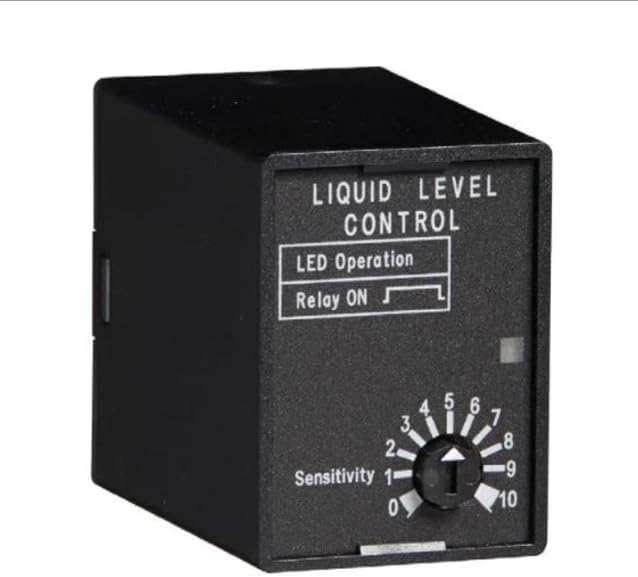

Littelfuse LLC24B2F50N Dual-Probe Liquid Level Control Relay 24VAC Fill Operation

Manufacturer

Part Number

LLC24B2F50N
Sale Price

$110.32

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Littelfuse LLC24B2F50N is a dual-probe conductive liquid level control relay designed for controlling liquid pumping operations in fill (pump-up) applications. This control unit operates on 24VAC input voltage and features terminal block connections for easy installation.

Key Features:

  • Dual-probe conductive liquid level sensing technology
  • Fill operation mode (pump-up) with 50-second fixed time delay
  • 24VAC input voltage for industrial compatibility
  • Terminal block termination for secure wiring connections
  • Isolated 10A SPDT output relay contacts
  • Octal plug-in package for convenient installation
  • Built-in time delay prevents rapid cycling and protects pump equipment
  • Adjustable sensitivity up to 100kΩ for various conductive liquids

Operation: In fill mode, when the liquid level falls below the probe, the 50-second time delay begins. After the delay period, the output relay energizes and remains energized until the liquid level rises and touches the probe again. The relay then de-energizes and remains off until the liquid level falls below the probe once more. This time delay feature prevents rapid cycling that could damage the relay and connected pump equipment.

Applications: Ideal for OEM equipment, commercial appliances, industrial pumping systems, water treatment facilities, and any application requiring reliable liquid level control in pump-up operations. Compatible with PHST series probe holders and LLP series threaded stainless steel probes (sold separately).
