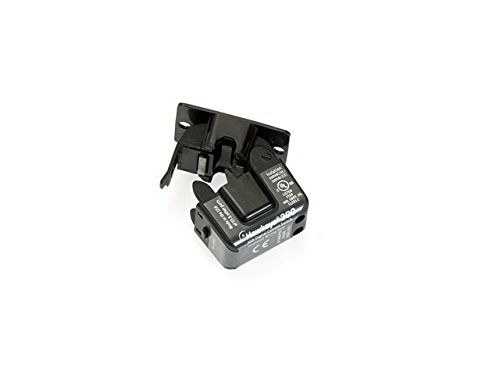

Veris H-739 Current Switch/Relay Combo Solid Core SPST Adjustable 1-135A

Manufacturer

Part Number

H-739
Sale Price

$123.39

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Veris H-739 is a Hawkeye series current switch and relay combination unit designed for building automation and HVAC control applications. This solid-core device combines both a current switch and relay into a single compact package, reducing installation space and simplifying the control of fans, pumps, and motors.

Key Features:

  • Adjustable trip point range from 1 to 135 amperes for flexible application setup
  • Solid-core construction for permanent installation on monitored conductors
  • SPST normally open relay with 24 VAC/DC coil voltage
  • High voltage relay output: 10A @ 250 VAC resistive, 5A @ 250 VAC inductive
  • Integrated current switch and relay operate independently for maximum flexibility
  • Status output: N.O. 0.2A @ 120 VAC/DC for monitoring applications
  • LED indicator for visual confirmation of operation
  • Polarity insensitive design simplifies installation
  • UL listed with 5-year manufacturer warranty

The H-739 performs dual functions of start/stop control and positive status monitoring with a single device instead of two separate units. All relay connections are externally available for maximum installation flexibility. Ideal applications include motor starting and stopping, monitoring positive equipment status, and detecting belt loss or coupling shear in HVAC systems.

Operating temperature range: 5°F to 140°F (-15°C to 60°C). Accommodates wire sizes up to 0.7 inches (18mm) diameter. Accepts control wiring from 24 to 14 AWG.
