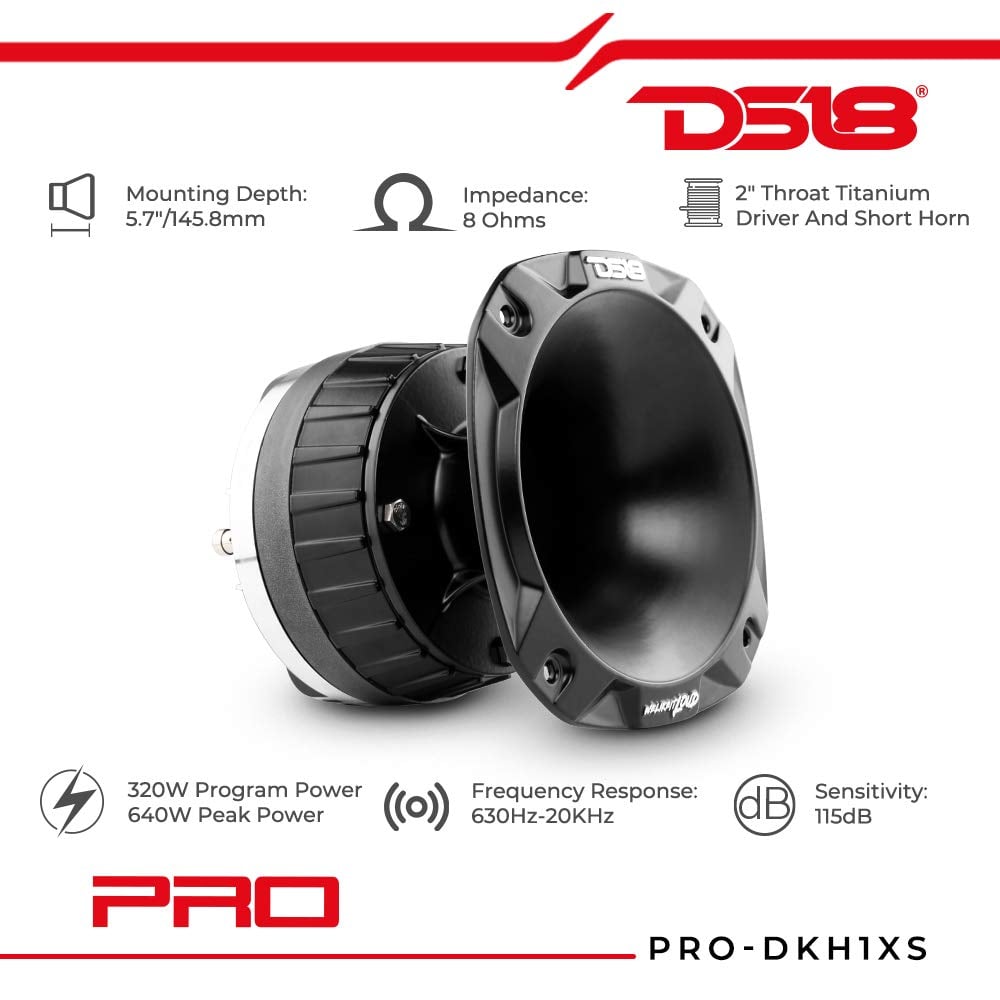

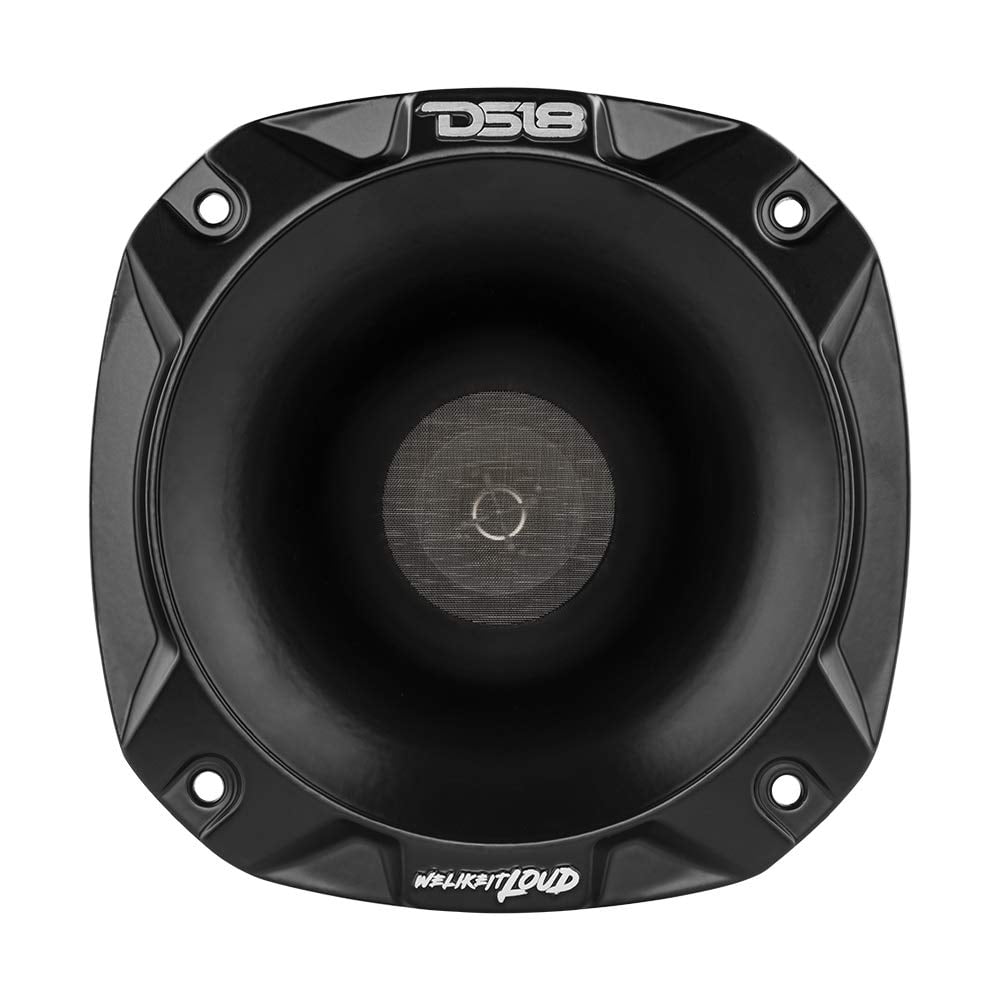

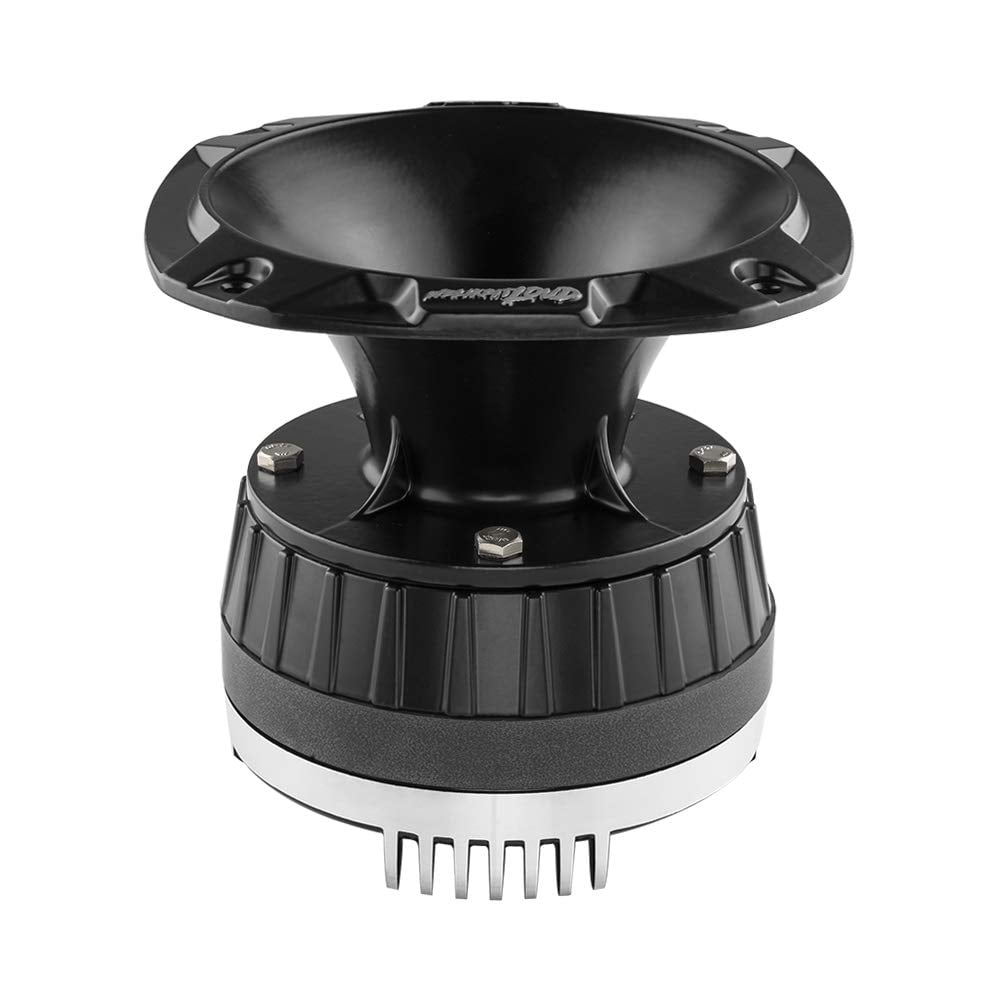

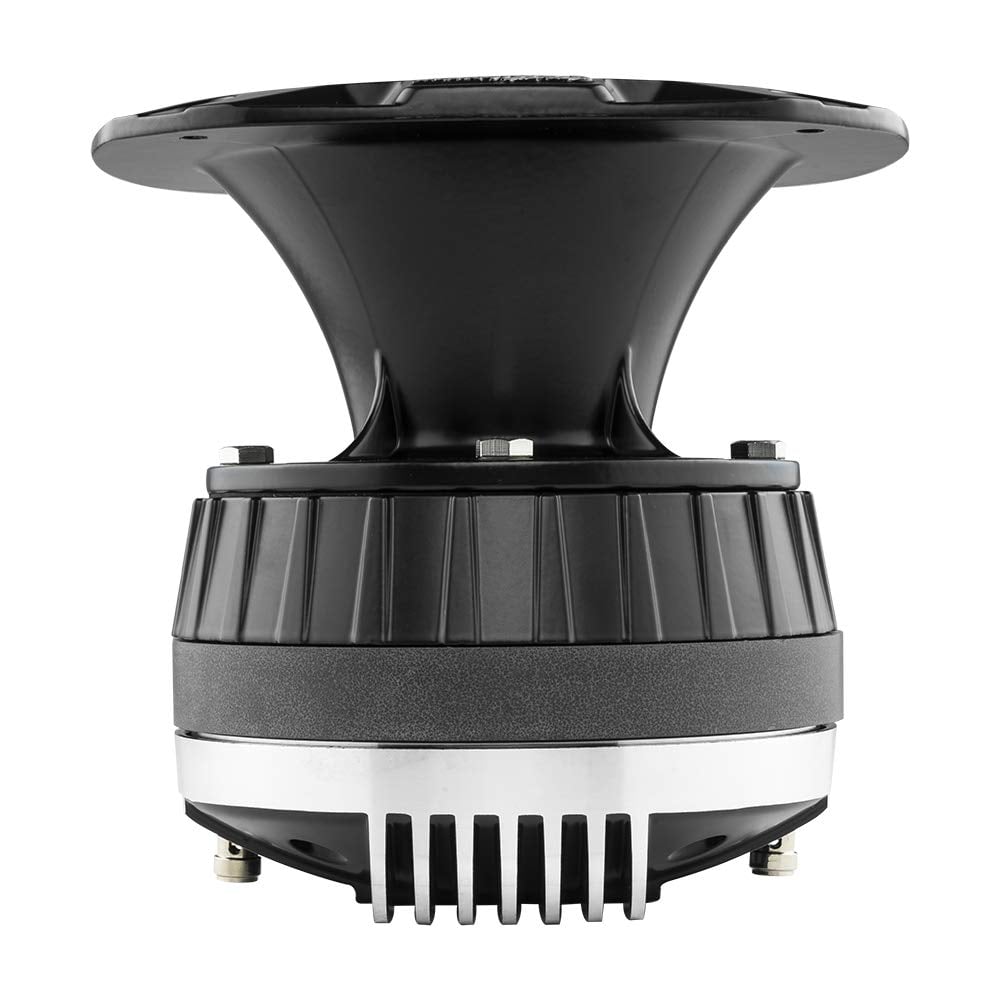

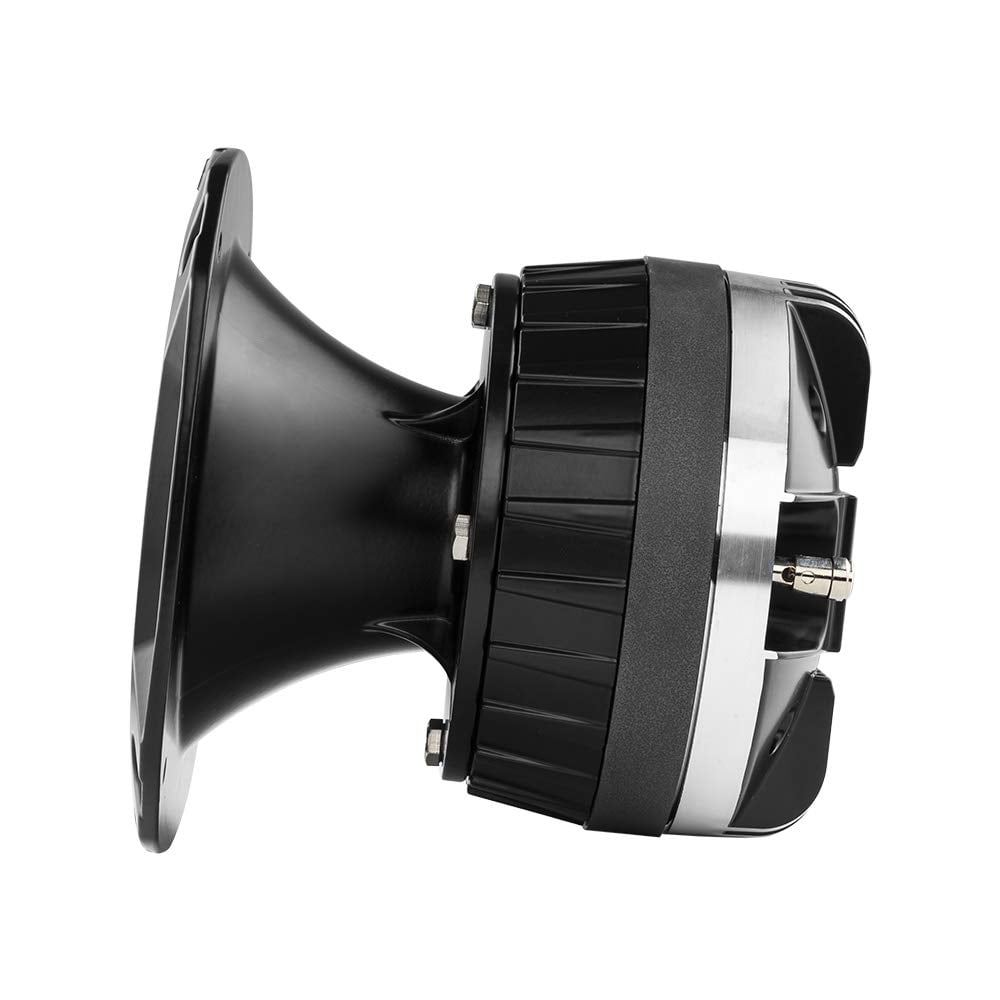

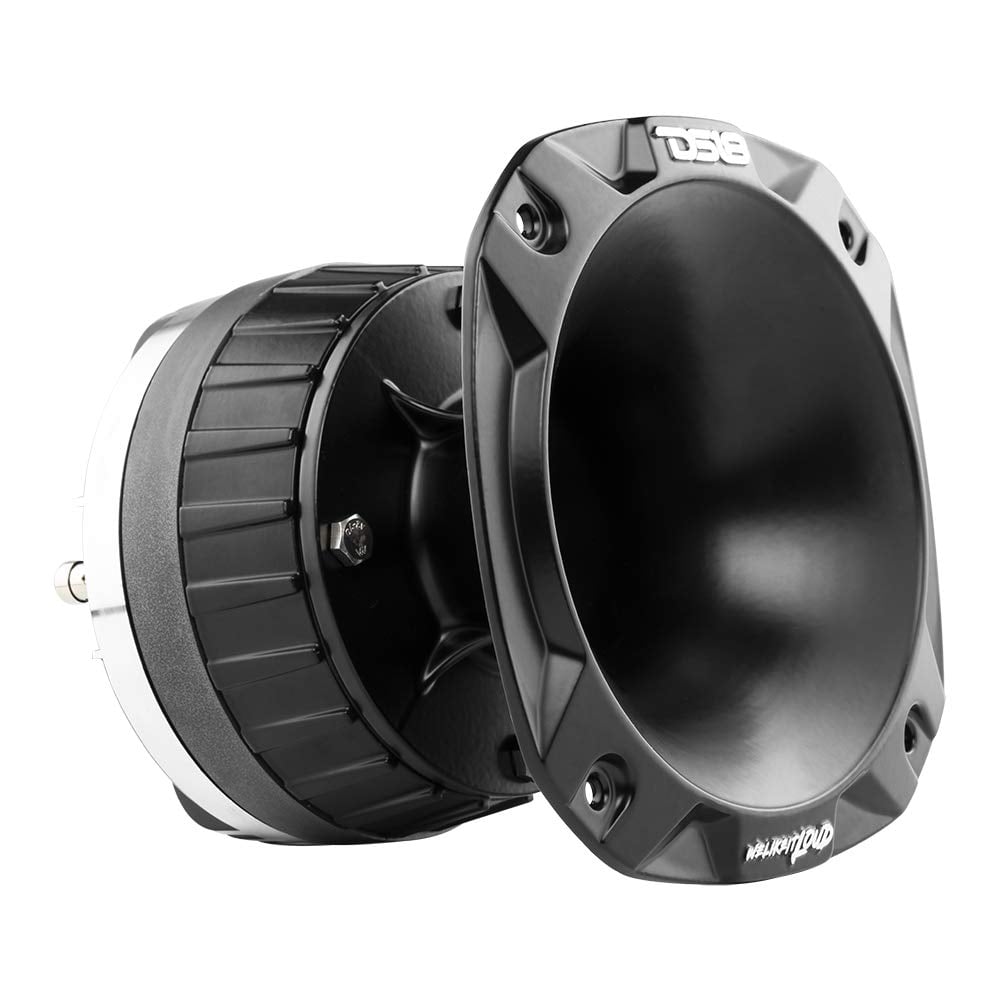

DS18 PRO-DKH1XS 2" Bolt-On Compression Driver with Spacer & Short Horn, 8 Ohm

The DS18 PRO-DKH1XS is a 2-inch bolt-on throat compression driver (also called a horn driver or PA driver). It comes with a driver spacer and a short aluminum horn throat. It is built for loud, clear highs in car audio, marine, and powersports sound systems.

Key Features:

• 2" (50.8mm) bolt-on throat with a short aluminum design that has brushed DS18 logos
• Driver spacer raises sensitivity for a louder response
• Titanium diaphragm and 2.03" (51mm) titanium 8-ohm voice coil
• Voice coil former is Kapton, with CCA winding
• Ferrite magnet, 35 oz
• Short-throat design needs about 5.7" of mounting depth, with 6" overall depth

Specifications:

• Nominal impedance: 8 ohms
• AES power handling: 160 watts
• Program power handling: 320 watts
• Peak power handling: 640 watts
• Frequency response: 630 Hz - 20 kHz
• Overall diameter: 7" (180mm)
• Overall depth: 6" (154.7mm)
• Mounting hole diameter: 5.7" (145mm)
• Bolt pattern diameter: 6.3" (161mm)

This driver suits sound installers and enthusiasts who want a compact, high-output horn driver. It is also listed under DS18 part number PRO-DKH1XS-FXVX.
