ICM Controls ICM2820 Furnace Control Board Replacement for Nordyne 1021575R

Manufacturer

Part Number

ICM2820
Sale Price

$84.50

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

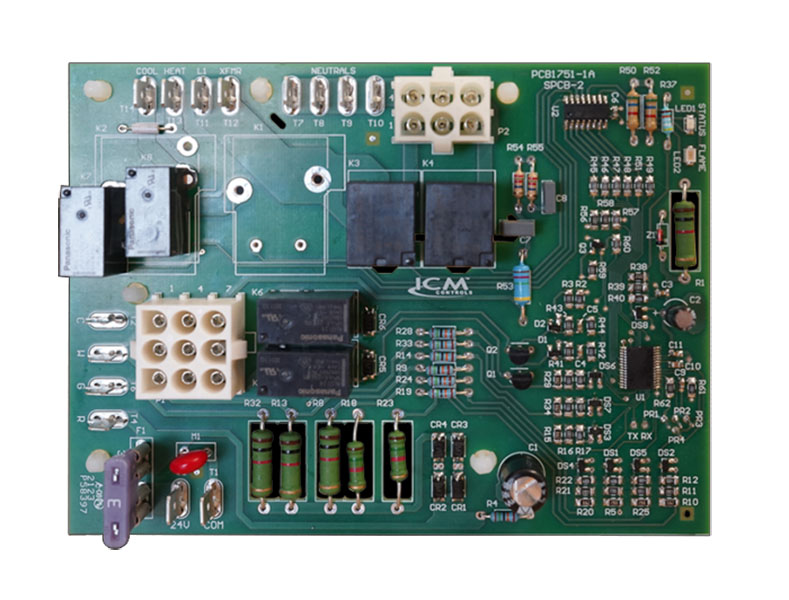

The ICM Controls ICM2820 is an integrated furnace control board designed as a direct replacement for Nordyne/Nortek 1021575R control boards used in MG1E model furnaces for manufactured housing. This microprocessor-based control board manages all critical furnace operations including the induced draft blower, circulator blower, gas valve, hot surface ignitor, and flame sensor based on inputs from the thermostat and various furnace sensors.

Key Features:

  • Direct form, fit, and functional replacement for OEM part number 1021575R
  • Compatible with Intertherm, Nordyne, Miller, and Revolv branded furnaces
  • Controls complete ignition sequence including 45-second pre-purge cycle
  • On-board diagnostic LED communicates fault codes for simplified troubleshooting
  • Automatic safety lockout protection when fault conditions are detected
  • ECM blower motor output relay for efficient operation
  • Operates on 120 VAC line voltage with 18-30 VAC control voltage
  • 3-amp fuse rating with reverse polarity and brownout voltage protection

Technical Specifications:

  • Input: 120 VAC, 50/60 Hz
  • Control Voltage: 18-30 VAC
  • Inducer Output: 1/100 HP (0.69A) @ 120V
  • Hot Surface Ignitor: 6.0A @ 120 VAC
  • Gas Valve: 0.5A @ 24 VAC
  • Operating Temperature: -40°C to 80°C
  • Humidity Range: 5% to 95% RH (non-condensing) at 55°C

The ICM2820 monitors all system safeties and will properly lock out furnace operation when a safety fault is detected, providing reliable protection for your heating system. Professional installation by a licensed HVAC technician is recommended to ensure proper setup and safe operation.
