Trigger Wireless Control System 3001TAC 6 Shooter Toyota Tacoma Combo Kit

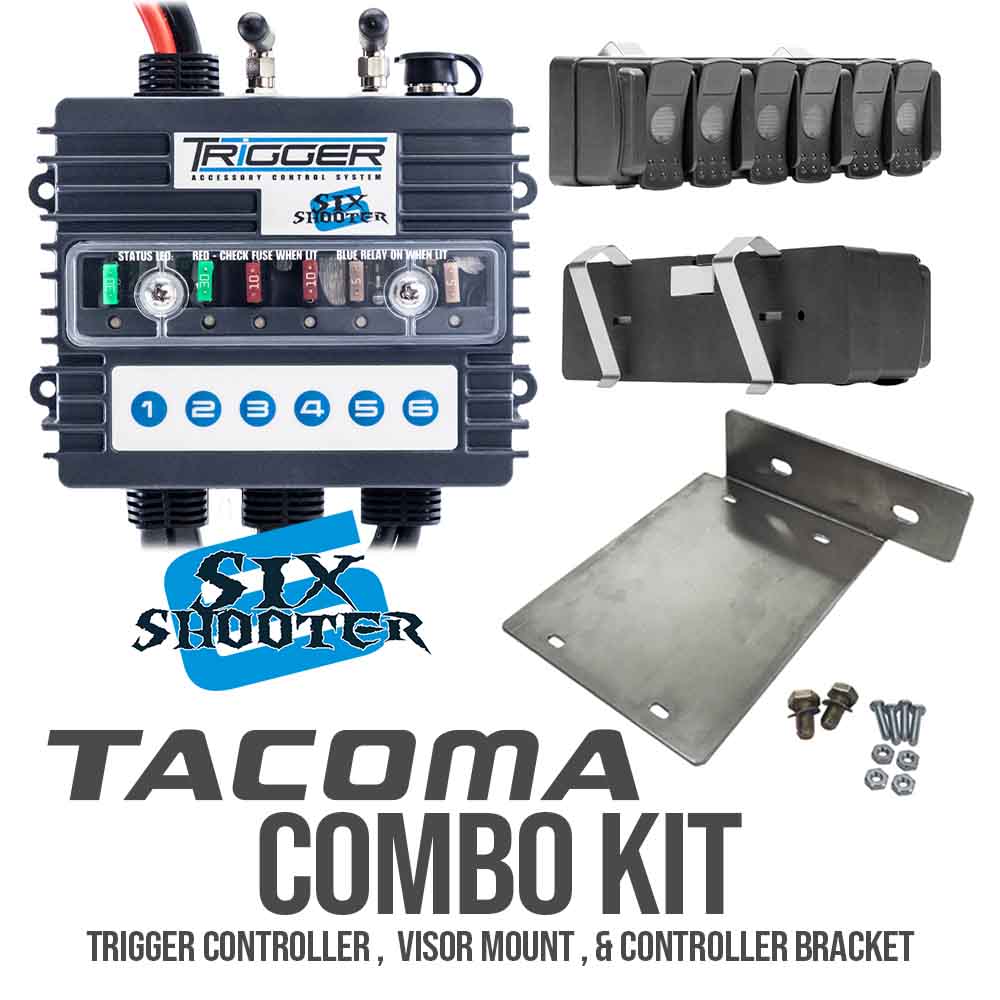

The Trigger Wireless Control System 6 Shooter Toyota Tacoma Combo Kit is a complete wireless accessory control solution designed specifically for 2016-Present 3rd generation Toyota Tacoma models, including TRD Pro. This comprehensive kit combines the acclaimed Trigger 6 Shooter wireless controller with two essential Tacoma-specific mounting accessories: a wheel-well underhood controller bracket and an overhead RF remote visor mount.

Wireless Control Features:

• Six 12-24V output harnesses with pre-installed waterproof connectors (8 ft. length)
• Dual control via Bluetooth (iOS/Android Trigger ACS Plus app) and battery-powered RF remote
• Built-in fuses: two 30-amp, two 10-amp, two 5-amp circuits with O-ring sealed cover
• High-intensity LED indicators display circuit status (blue for on, red for blown fuse)
• Back-lit RF remote rocker switches with customizable backlight color
• Manual push buttons on top of control box for direct circuit control
• Built-in Bluetooth battery monitor and low voltage cut-off protection
• 100-amp main fuse for whole system protection

Installation Advantages:

• Eliminates need to run wires under dash or through firewall
• Underhood bracket mounts controller near fuse box and battery in unused wheel-well space
• Universal visor mount installs RF remote above sun visor with no drilling required
• Laser-cut aluminum mounting bracket for long-lasting durability
• Waterproof case withstands temperatures from below freezing to 250°F

Advanced Functionality:

• Control accessories from inside or outside vehicle with RF remote
• Dimming and flashing functions for LED and conventional lighting
• Programmable for security or use with additional controllers
• Built-in DIN connector for optional conventional toggle switches (harness sold separately)
• Multiple Trigger systems can work together to control up to 24 accessories
• Includes switch labels for easy identification

This system saves significant installation time while adding professional-grade control and monitoring capabilities for lighting, winches, air compressors, and other 12-24V electronic accessories. The Tacoma-specific mounting hardware ensures clean, factory-like integration.
