Diode Dynamics DD8116S C2 2.0 Max White Flood LED Pod Single RBL

The Diode Dynamics C2 2.0 Max is the next generation of ultra-compact auxiliary LED lighting, delivering an impressive 3900 raw lumens in a 2-inch footprint. This single LED pod features a flood beam pattern with a 70x45 degree spread, making it ideal for backup lighting, work areas, trailers, or low-speed illumination applications.

Re-Engineered Performance:

• Up to 95% more power than the original C2 1.0
• 3900 raw lumens output - the most powerful 2-inch LED pod on the market
• 30 watts main beam power draw
• Patented TIR (Total Internal Reflection) optics for maximum efficiency and minimal glare
• 6000K cool white color temperature
• Red backlight (RBL) for distinctive accent lighting at 0.38 watts

Advanced Construction:

• Copper-core circuit board bonded directly to LED chips for superior thermal management
• Powder-coated aluminum housing with enhanced heat dissipation
• IP67 weatherproof rating for moisture and dust protection
• Operating temperature range: -40°F to 185°F
• 9-30V input range for versatile applications

Versatile Design Features:

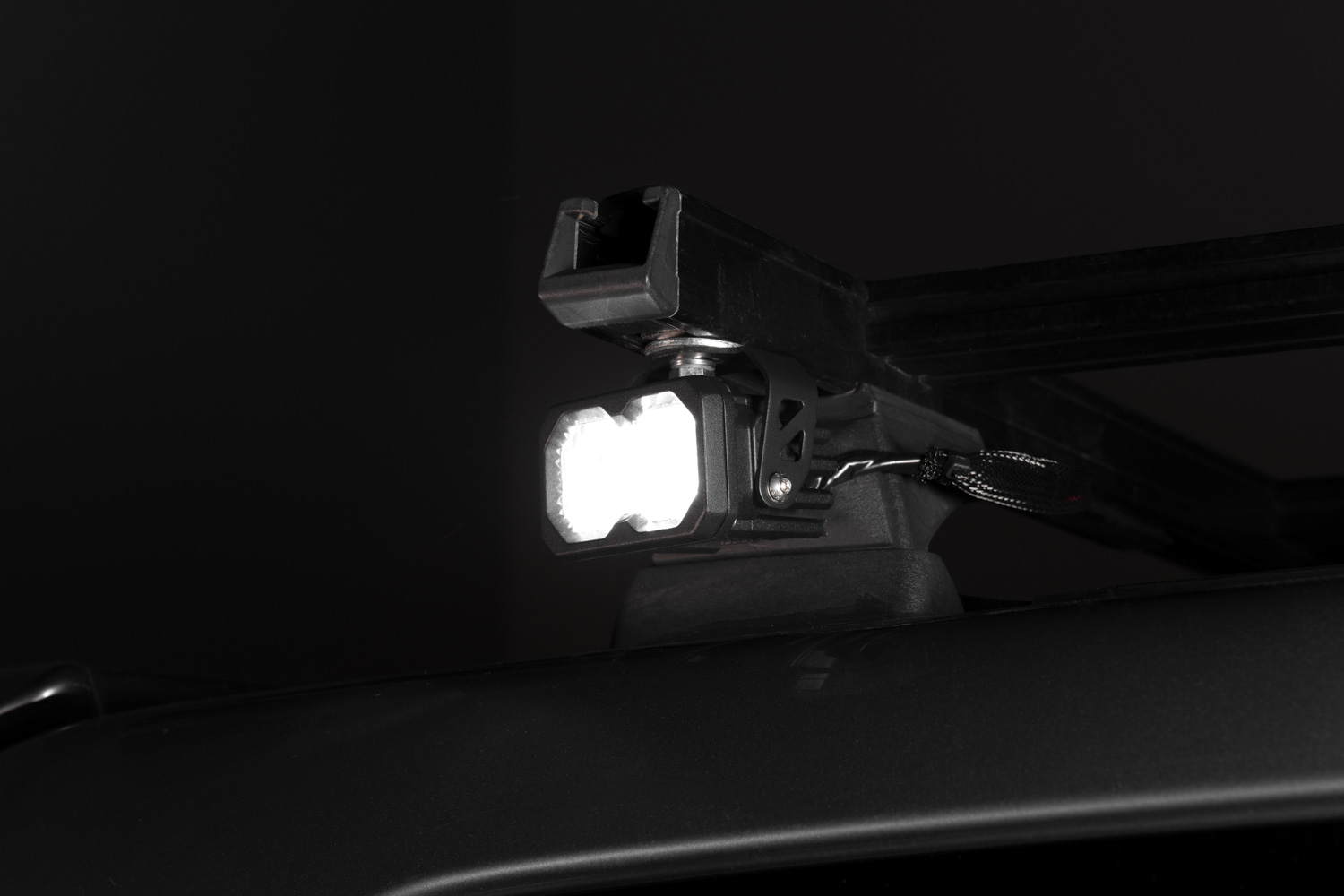

• Ultra-compact 2-inch form factor fits tight mounting spots including roof racks, bumpers, A-pillars, and roll bars

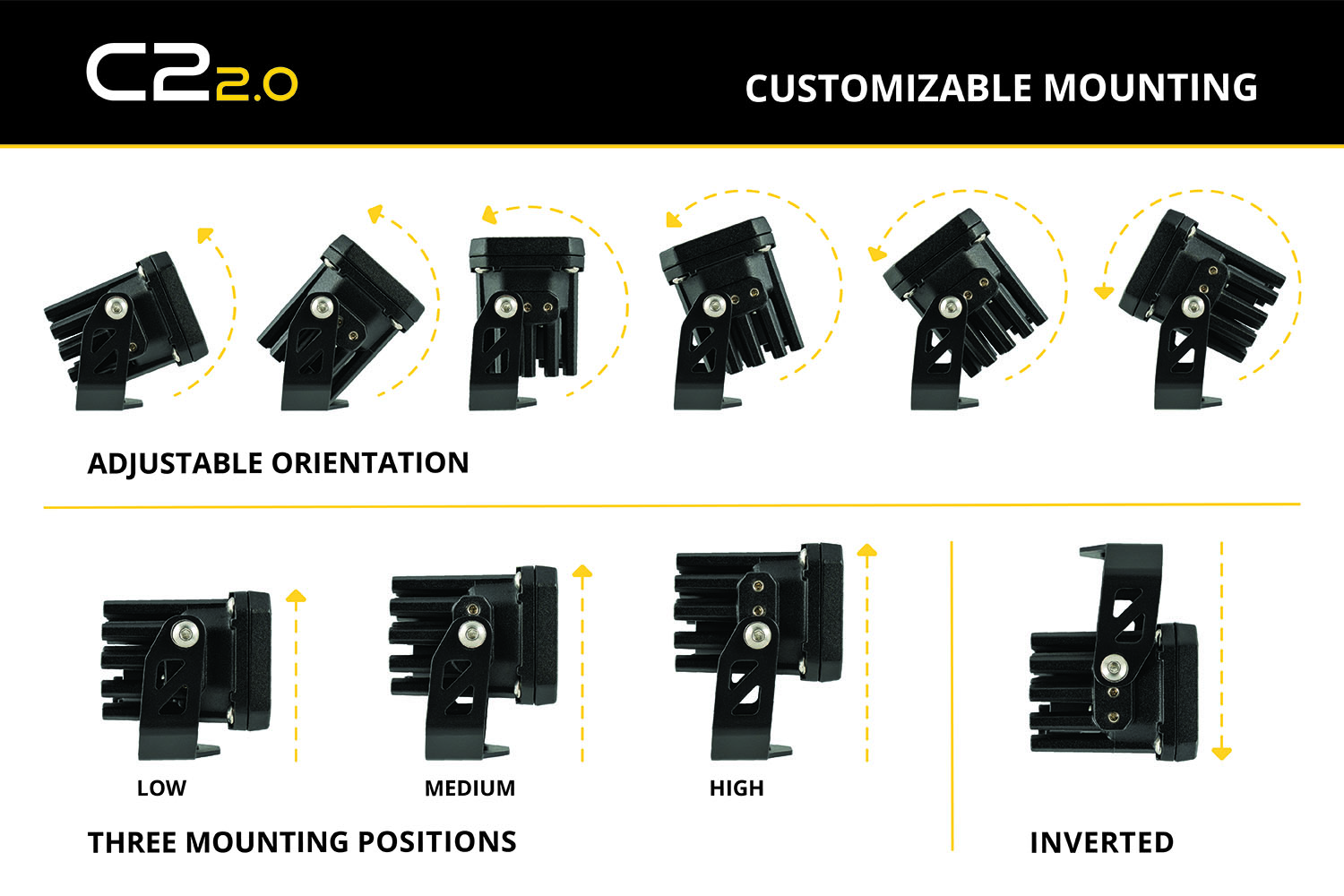

• Three mounting positions for height and angle adjustment
• Swappable lenses - easily change beam patterns or colors with lens swap
• Compatible with CrossLink technology for linking multiple pods into custom lightbar configurations
• Integrated Deutsch-style connector included

Extensively tested to SAE standards for vibration, moisture intrusion, and corrosion resistance. Made in the USA with globally sourced materials and backed by a Limited Lifetime Warranty. This listing is for a single pod with standard mounting bracket and hardware.
