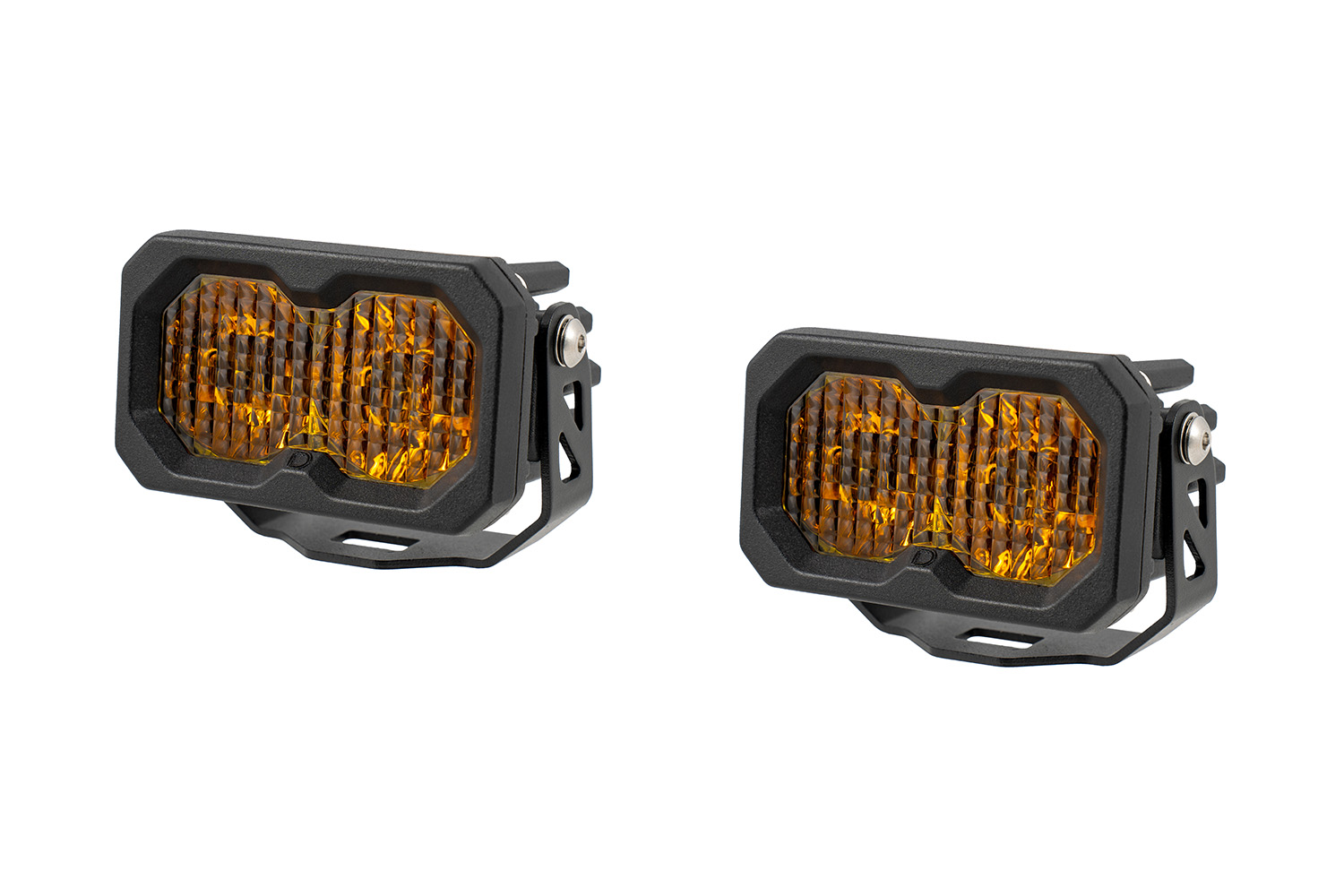

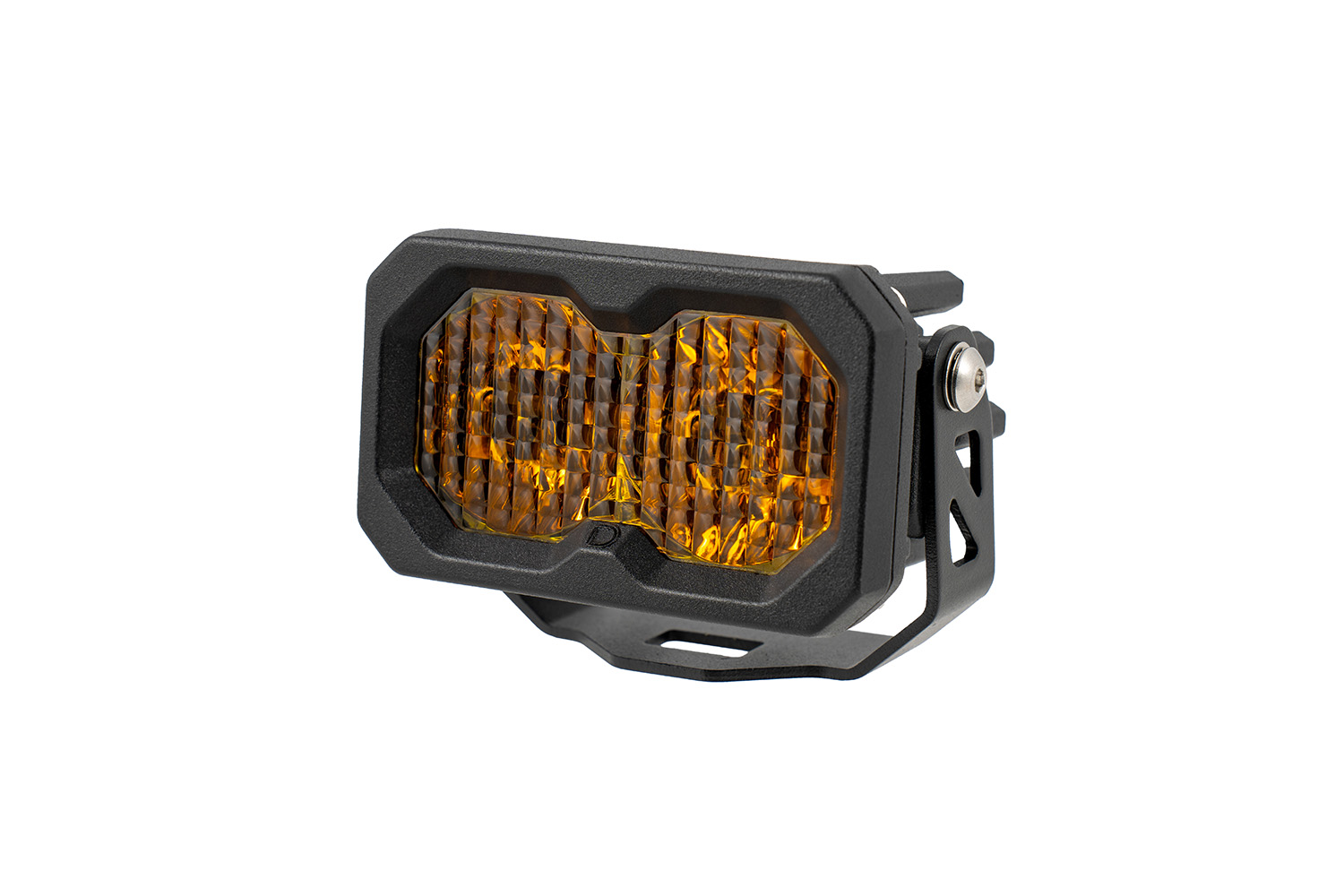

Diode Dynamics DD8106S C2 2.0 Pro Yellow Combo Driving LED Pod with Amber Backlight

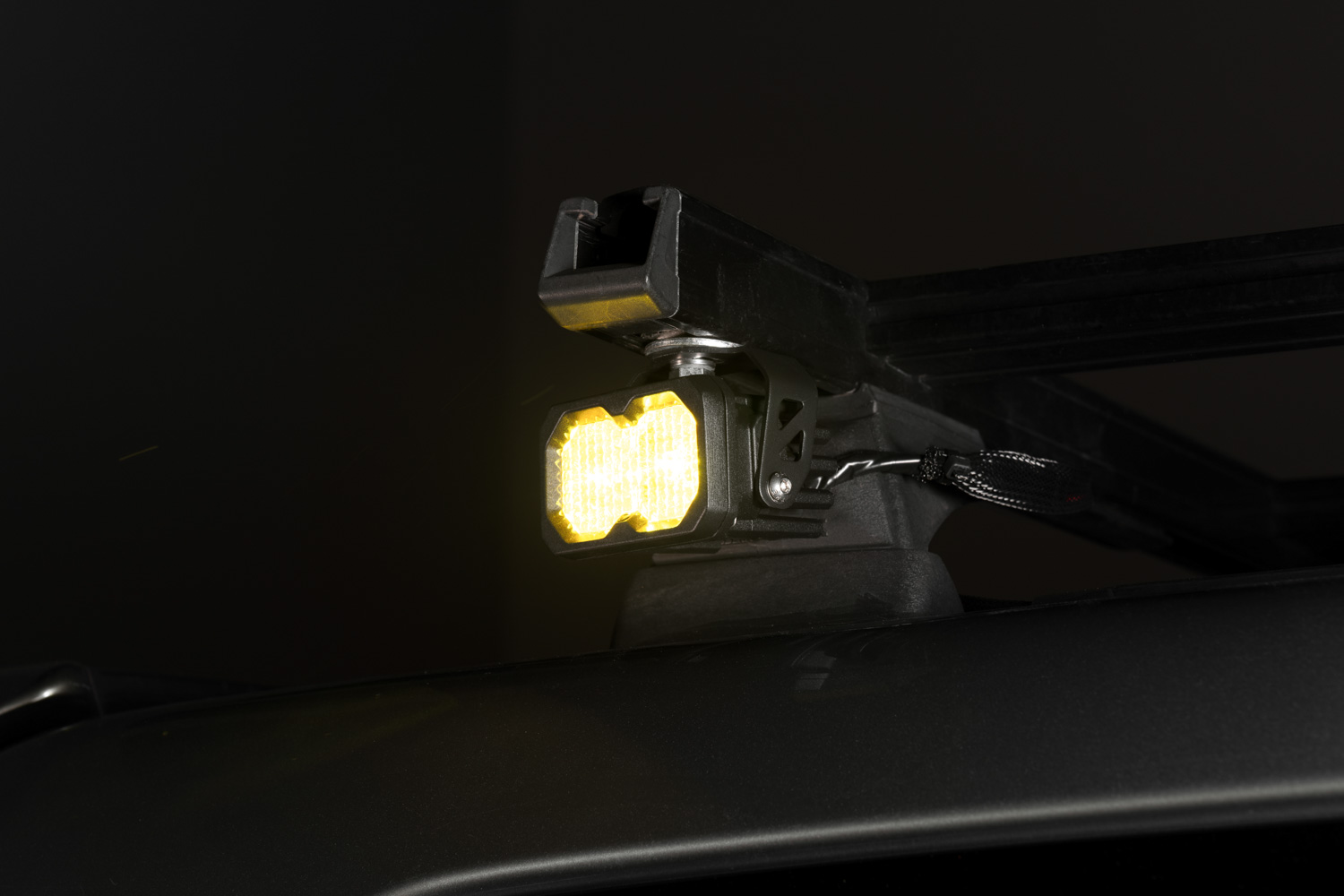

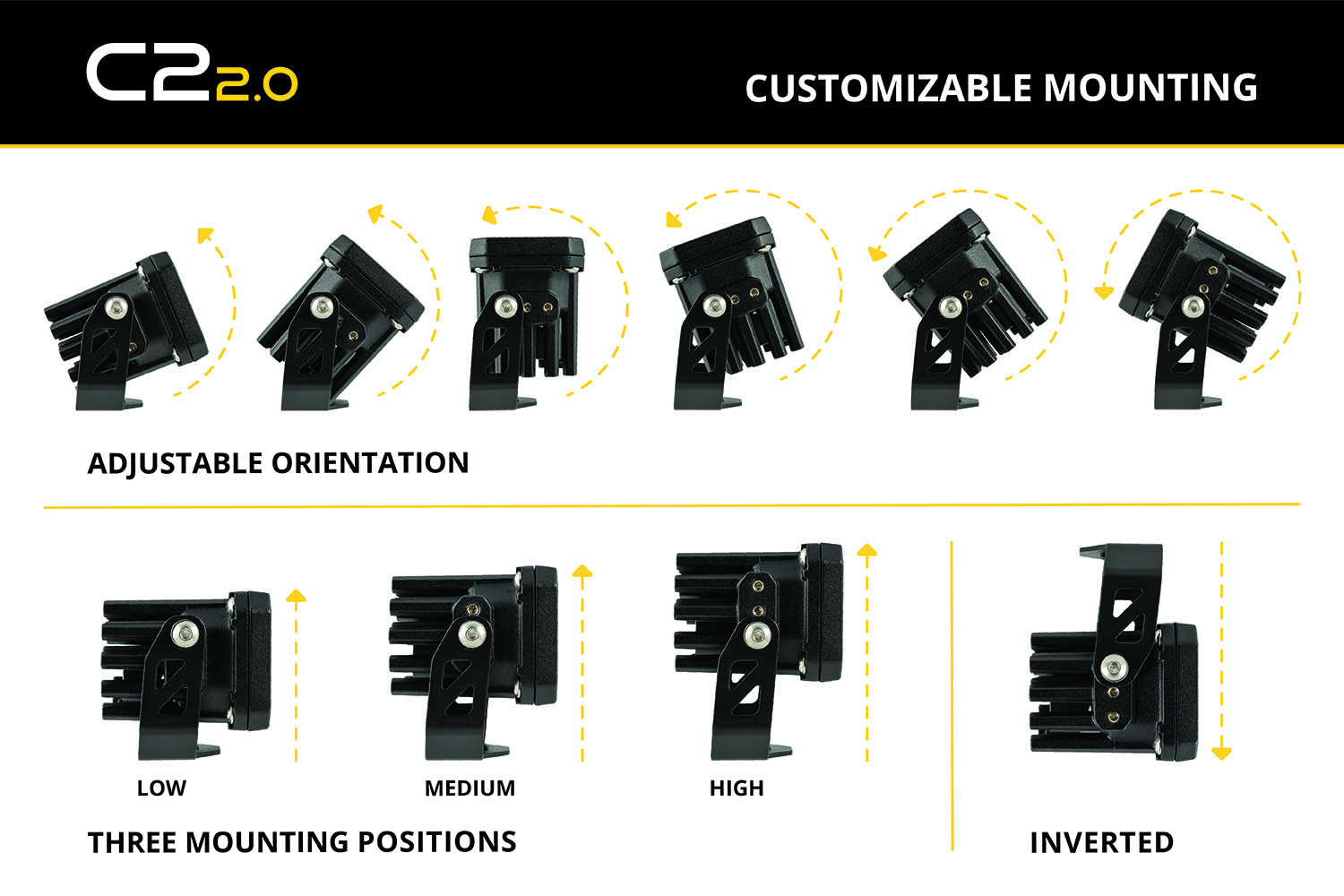

The Diode Dynamics Stage Series C2 2.0 is the next generation of compact LED lighting, packing more power and light output into an ultra-compact 2-inch footprint. With its compact design, the C2 2.0 is ideal for tight mounting spots including roof racks, roll bars, bumpers, and A-pillars. This Pro-level yellow pod features a combo/driving beam pattern optimized for enhanced visibility in fog, rain, dust, and snow conditions.

Advanced Optical Performance:

• Patented TIR (Total Internal Reflection) optics re-engineered for maximum intensity and usable light output, directing light precisely where needed while cutting glare and boosting efficiency
• Up to 95% more power than the original C2 1.0
• 23-watt input power with 15,000 cd intensity in combo/driving beam pattern
• 3000K yellow output for superior penetration in adverse weather
• Distinctive backlight feature with amber color serves as a low-power accent light, fully illuminating the TIR optic for a unique modern look

Engineering Excellence:

• New copper-core circuit board bonded directly to LED chips dramatically improves thermal efficiency, while redesigned powdercoated aluminum housing dissipates more heat for higher performance
• Uses same high-output Cool White LED chips for both white and yellow pods, making optic and color changes a simple lens swap
• Compatible with patent-pending CrossLink technology to seamlessly link multiple pods together
• Extensively tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing to SAE standards
• IP69K waterproof high-pressure rating with integrated Deutsch-style connector

After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting, directly manufacturing and engineering products in the United States using globally sourced materials. Includes mounting bracket, hardware, Deutsch-style wire pigtail, and Limited Lifetime Warranty. Made in USA with global materials.
