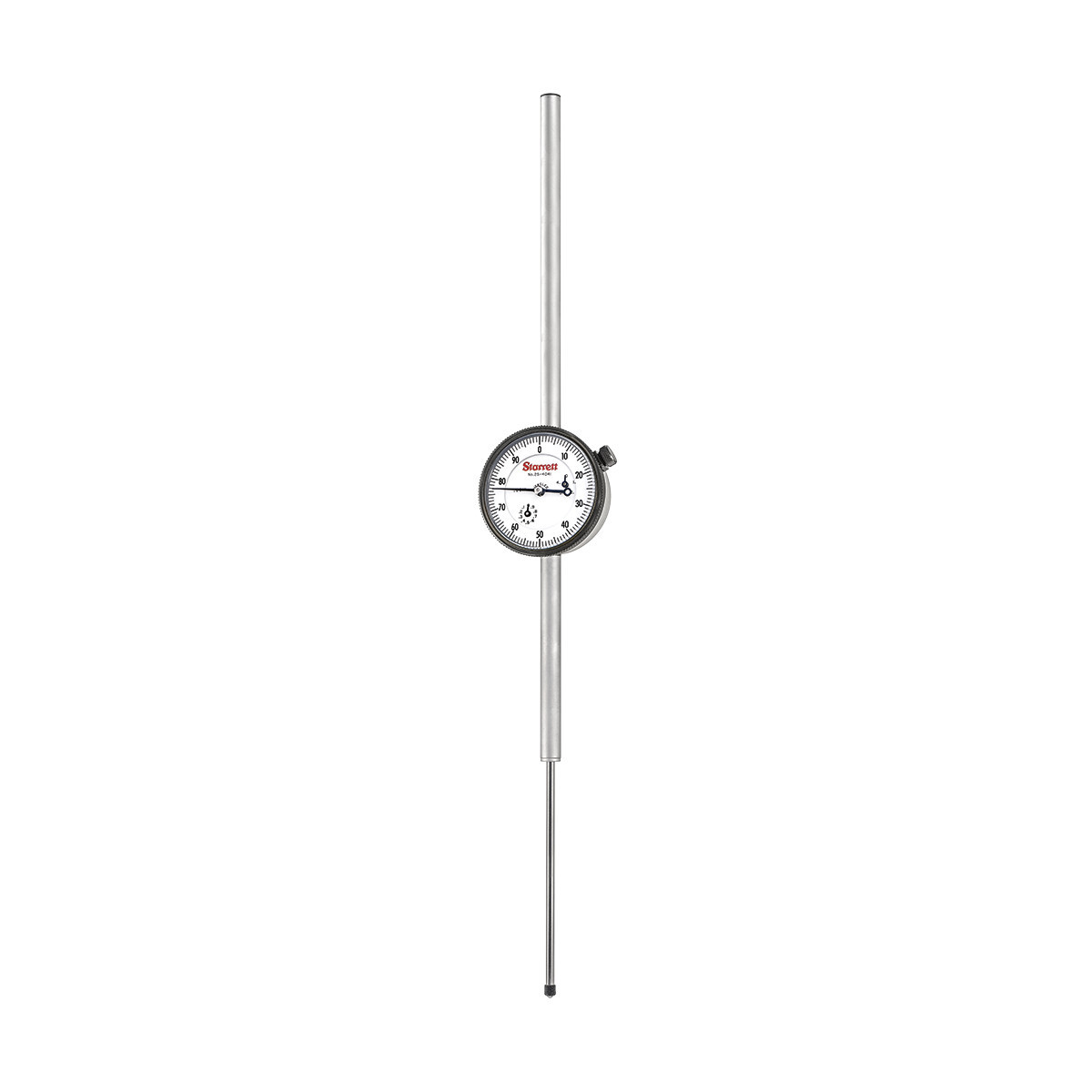

Starrett 25-5041J Long Range Dial Indicator 0-5" Range .001" Graduation AGD Group 2

The Starrett 25-5041J is a long-range AGD Group 2 dial indicator designed for precision measurement across a full 0–5.000" range with 0.001" graduations. Built to the exacting standards Starrett has maintained since 1880, this indicator is a trusted tool in machine shops, tool rooms, and quality control labs requiring extended travel without sacrificing accuracy.

Featuring a continuous reading double dial with direct-reading count hands, the 25-5041J makes tracking cumulative measurement intuitive and efficient. The 0-100 dial reading and 2-1/4" (2.25") white dial face provide excellent visibility, while the non-reflecting eggshell finish minimizes glare for comfortable extended use.

Key Features:

• 5.000" total measuring range with 0.001" graduation increments
• Shockless, hardened steel gear train for durability in demanding environments
• Low-friction jewel bearings supported by a massive bridge for rigid, repeatable accuracy
• Lug-on-center back for secure, standard mounting
• Hardened stainless steel rack, spindle, gears, and pinions for long service life
• Unbreakable crystal face for protection in shop environments
• 0.375" stem diameter for compatibility with standard AGD indicator holders and magnetic bases
• Sharp bezel serrations with positive-acting clamp lock for secure dial positioning
• No-glare satin finish on the outer case
• Stem cap supplied as standard; top lift available when specified
• Conforms to AGD specifications (except for extended range)
• EDP No. 53312

The Starrett 25-5041J long-range dial indicator is an ideal choice for applications requiring measurement travel well beyond standard 1" indicators, including checking deep bores, tall stack-ups, or any setup where a wide measurement window is critical to workflow efficiency.
