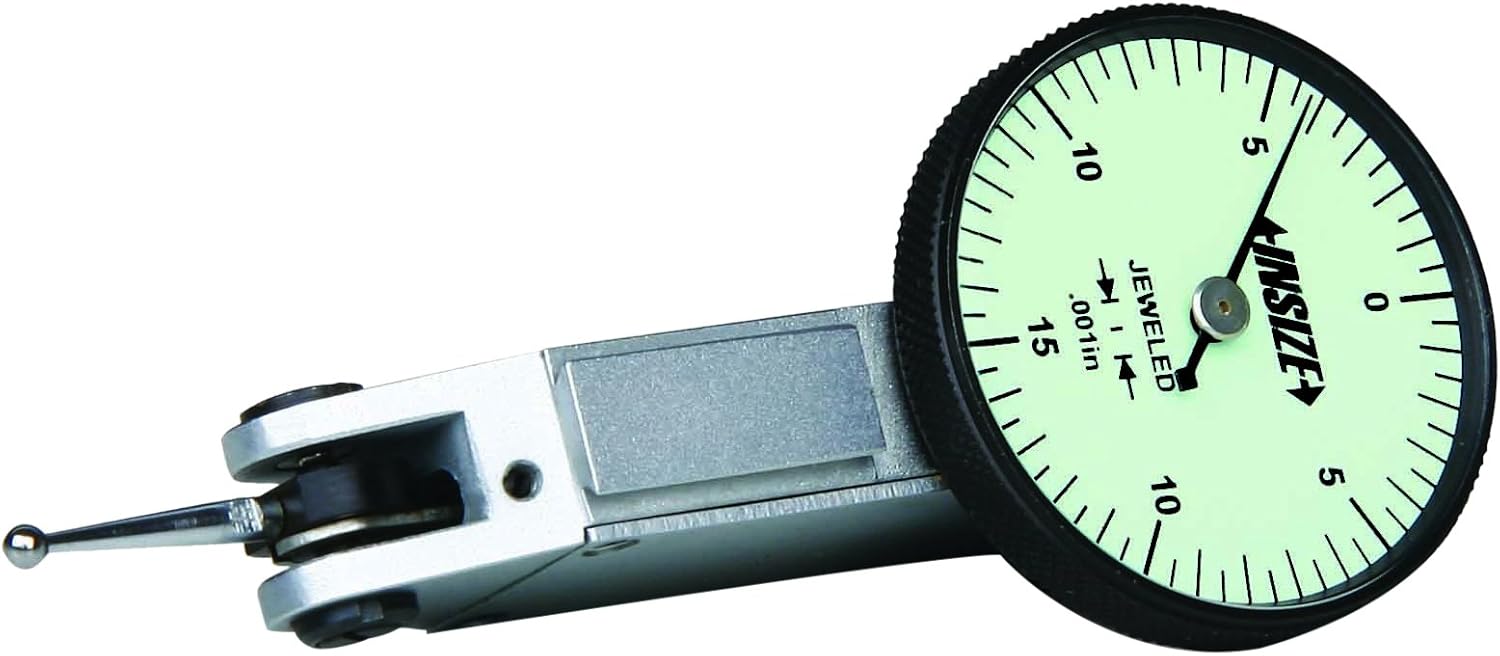

InSize 2381-35 Dial Test Indicator Range Graduation - 0.03 0.0005

The InSize 2381-35 is a precision dial test indicator designed for accurate measurement of surface distortion, runout, and dimensional variations in machining and quality control applications. This professional-grade instrument features a 0.03" measuring range with fine 0.0005" graduations and ±0.0005" accuracy for reliable, repeatable measurements.

Key Features:

• 0-15-0 dial reading configuration for bidirectional measurements
• Jeweled bearing construction for smooth operation and extended service life
• Shock-proof design protects internal mechanism from damage
• Interchangeable carbide contact point with 0.0787" (2mm) diameter ball
• Anti-magnetic brass body with satin chrome finish resists interference
• Two measuring directions for versatile positioning
• Bezel diameter: 1.457" for easy reading
• Probe length: 0.530" (13.5mm)

Included Accessories:

• Two holding stems: 5/32" (4mm) and 3/8" (8mm) diameter clamps
• Mounting wrench for contact point changes
• Fitted storage case for protection and organization

Meets DIN2270 and BS2795 international standards for precision measuring instruments. Optional replacement styli available separately for specialized applications.
