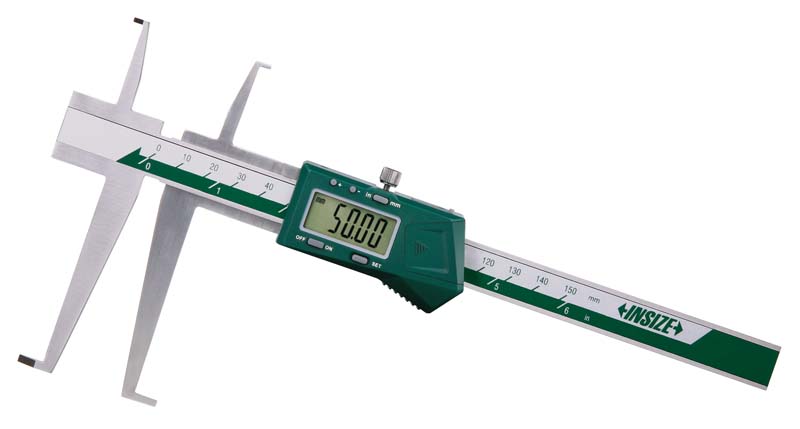

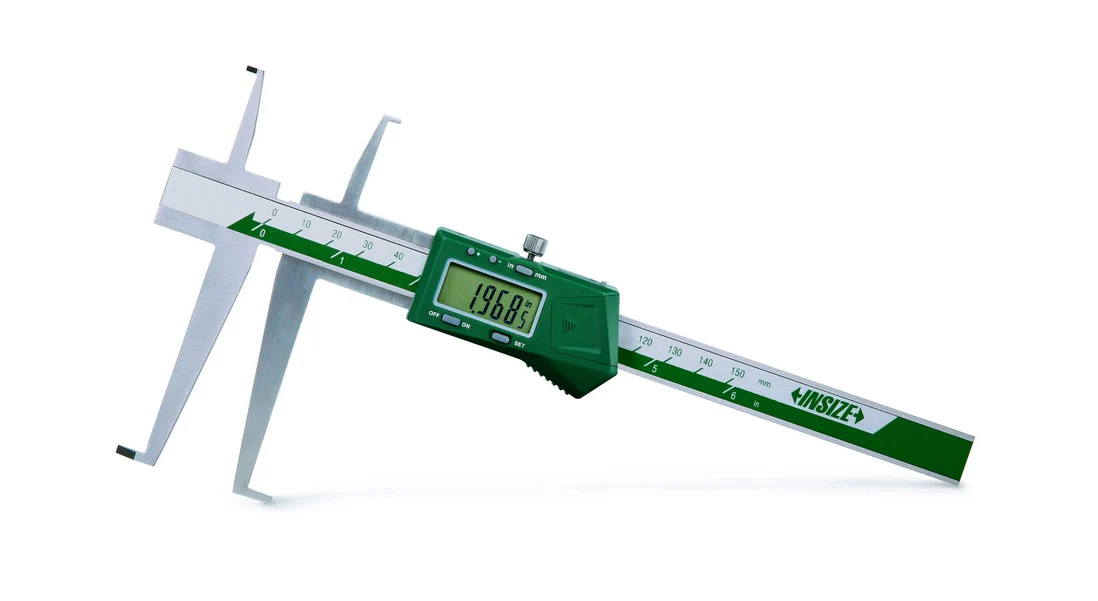

InSize 1176-150 Electronic Inside Groove Caliper with Dual Jaws 0.35-6 Inch

The InSize 1176-150 is a precision electronic inside groove caliper specifically designed for measuring the diameter of grooves and recesses inside bores. This specialized measuring tool features a dual-jaw design with two different sets of internal jaws, each optimized for different minimum entry diameters, allowing you to measure a wider variety of internal bores and grooves compared to single-purpose models.

Key Specifications:

• Upper jaw measuring range: 0.35-6 inches (9-150mm)
• Lower jaw measuring range: 0.59-6 inches (15-150mm)
• Resolution: 0.0005 inches (0.01mm)
• Accuracy: ±0.0016 inches (±0.04mm)
• Lower jaw length: 2.756 inches for accessing narrow grooves
• Stainless steel construction for durability

Features:

• Electronic digital display with inch/mm conversion at the push of a button
• Intuitive button controls: on/off, zero/set, inch/mm, preset (+/-)
• Automatic power-off with move-to-on functionality—caliper powers on when slider moves
• Preset function for comparative or offset measurements
• SPC data output capability for integration with data collection systems
• Powered by CR2032 battery (included)

Applications:

• Measuring O-ring seats and snap-ring channels in hydraulic blocks
• Internal groove inspection in valve housings and manifold ports
• Small aperture inspection with restricted entry diameters
• Quality control for deep internal grooves and recesses

Optional accessories include data output cables (7306-20, 7302-SPC5A/5B, 7305-SPC2A) and depth stop (6143) for enhanced functionality.
