Mitutoyo 513-482-10A Parallel Dial Test Indicator Basic Set 0.03" Range 0.0005" Graduation

The Mitutoyo 513-482-10A is a parallel (horizontal) dial test indicator designed for high-precision measurement in tight or restricted spaces. With a 0.03" measuring range and 0.0005" graduation, this Series 513 lever-type indicator delivers the fine resolution demanded by quality control, machining, and inspection applications.

The parallel dial face orientation keeps the dial pointing upward regardless of the indicator's rotational position, making it easy to read graduations from the operator's side — especially convenient when measuring tall workpieces or positioning on an elevated workbench. The no-clutch design provides automatic reversal of measuring direction without manual adjustment.

Key Features:

• Measuring Range: 0.03" (0.8 mm)
• Graduation: 0.0005"
• Accuracy: ±0.0005"
• Dial Reading: 0-15-0
• Measuring Force: 0.3N or less
• Contact Point Length: 20mm
• Mass: 60 grams
• Bearing Type: Jeweled — for high sensitivity and fast response
• Dial Color: White with universal fonts for improved readability
• Carbide contact point included as standard

Durability & Visibility:

• One-piece bezel and crystal bonded design with O-ring seal prevents dust, oil, and cutting fluid penetration
• Glare-free flat crystal face with hard, scratch-resistant and antifouling coating
• Flange design prevents accidental bezel removal during handling

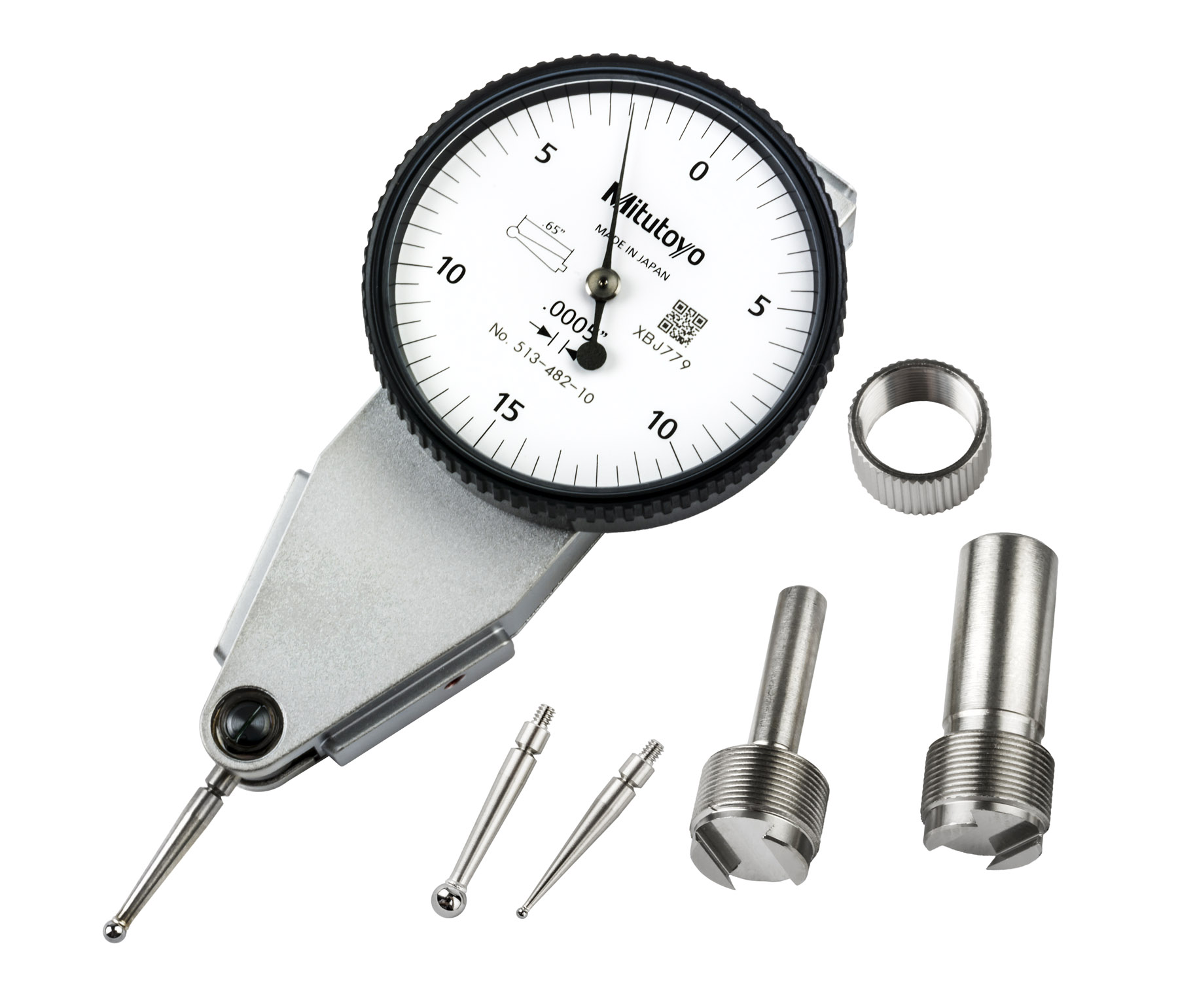

Basic Set Includes:

• Dial test indicator with 0.079" diameter carbide contact point
• Knurled clamp ring
• 3/8" dovetail plain stem
• Inspection certificate

The 513-482-10A is ideal for measuring narrow or recessed features, bores, inside/outside diameters, and surfaces that standard plunger-style dial indicators cannot reach. Compatible with universal holders for convenient hole-centering operations.
