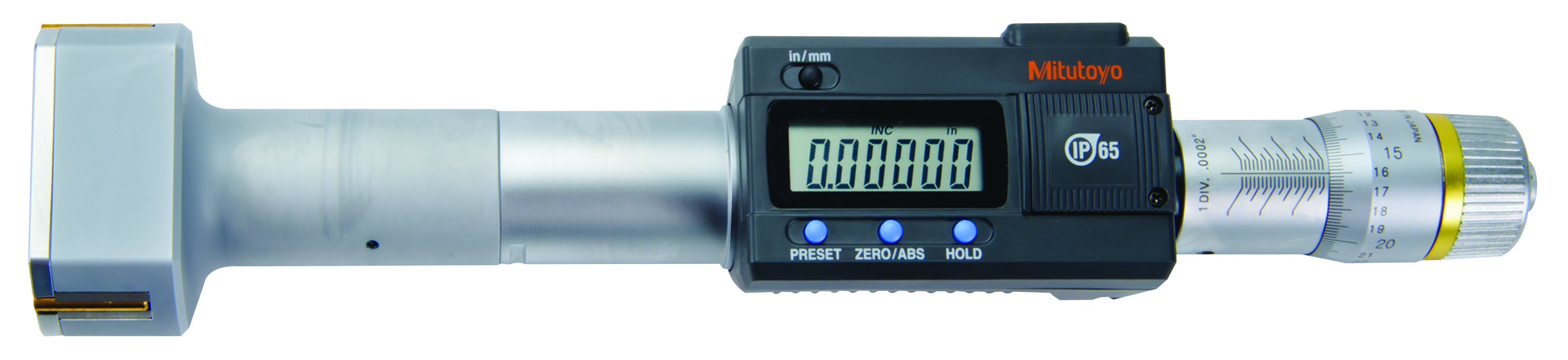

Mitutoyo 468-270 Digimatic Holtest Bore Gauge 2-2.5 Inch Range .00005 Inch Resolution

The Mitutoyo 468-270 Digimatic Holtest is a precision internal measuring instrument designed for accurate bore diameter measurement in the 2-2.5 inch (50.8-63.5mm) range. This advanced bore gauge features a large LCD digital readout with .00005 inch (0.001mm) resolution and includes SPC (Statistical Process Control) data output capability for quality control applications.

Key Features:

• Measurement range: 2-2.5 inches (50.8-63.5mm)
• High resolution: .00005 inch (0.001mm) for precise measurements
• Titanium Nitride (TiN) coated contact points provide excellent durability and impact resistance
• TiN coating allows measurement to the bottom of blind holes without damage
• Large, easy-to-read LCD digital display
• Integrated ratchet stop mechanism ensures constant measuring force for repeatable results
• SPC data output port for direct connection to data collection systems
• Imperial and metric measurement modes

The Digimatic Holtest is ideal for precision inspection of cylinders, bores, and holes in manufacturing and quality control environments. The ratchet stop feature eliminates operator variation by applying consistent measuring pressure, while the durable TiN coating extends tool life in demanding production applications.
