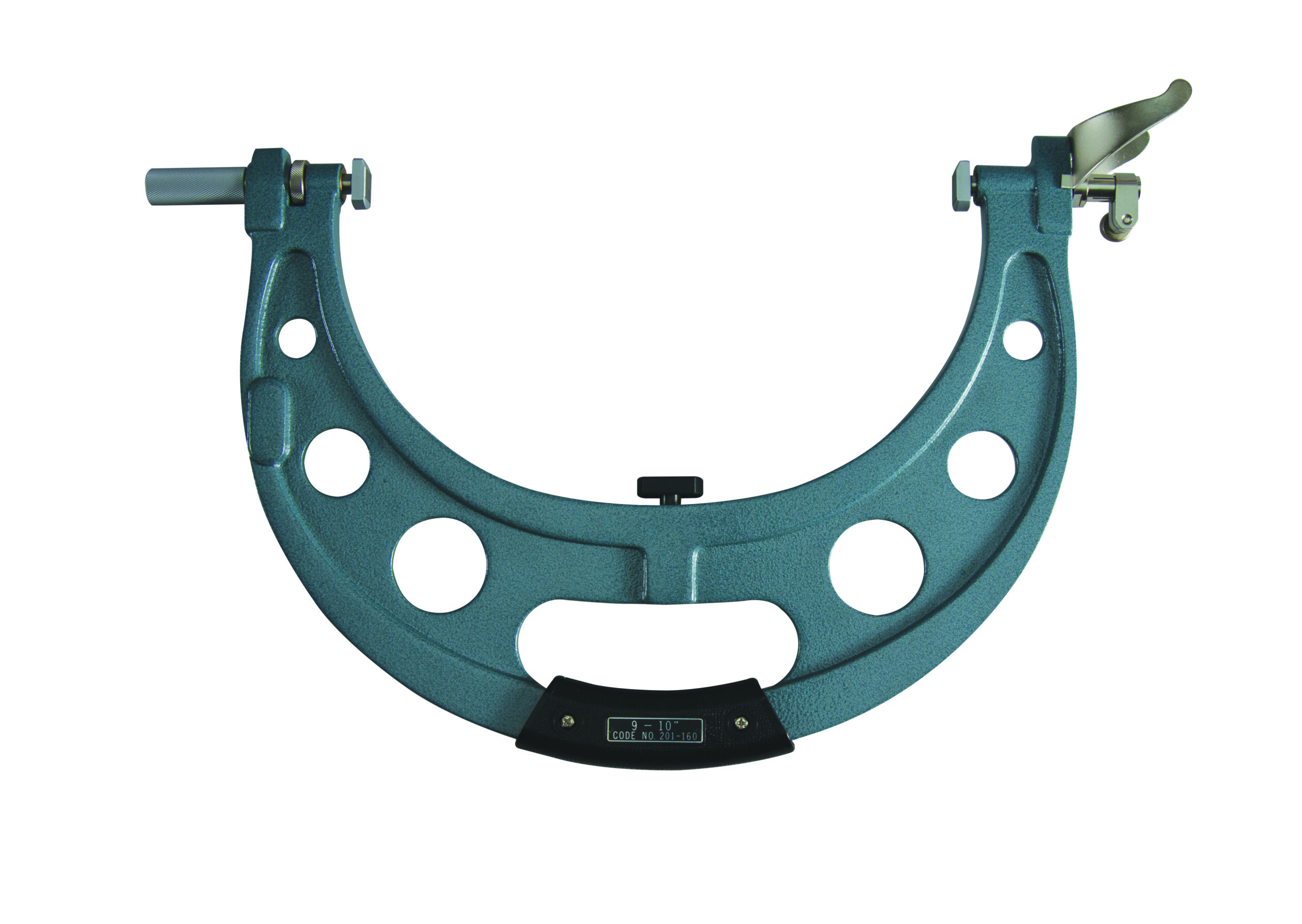

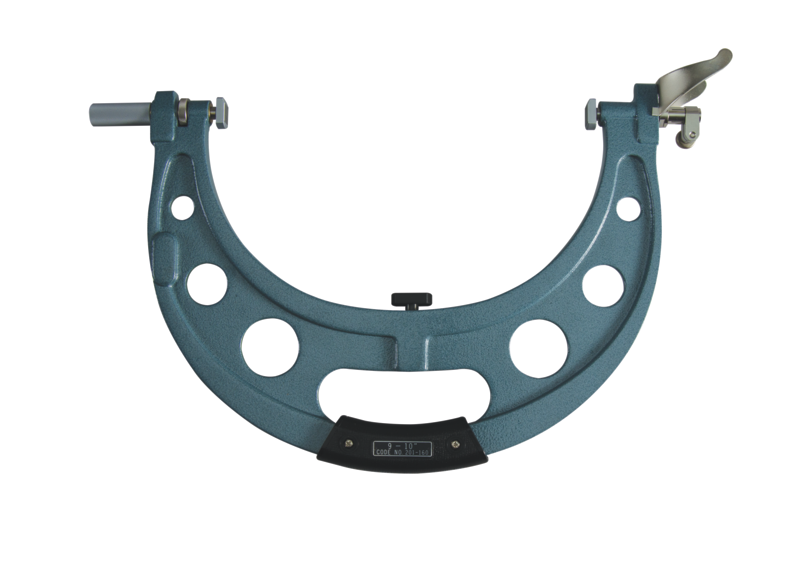

Mitutoyo 201-160 Dial Snap Gage 9-10 In Series 201 without Indicator

The Mitutoyo 201-160 is a precision dial snap gage from Mitutoyo's Series 201, covering a measuring range of 9 to 10 inches. Engineered for high-throughput quality control environments, this gage delivers fast, reliable GO/NO-GO diameter judgments on cylinders, shafts, and other round workpieces in machining processes. The dial indicator is sold separately, giving users the flexibility to pair this frame with their preferred indicator.

Key Features:

• Measuring Range: 9–10 in (228.6–254 mm)
• Gage Stem Diameter: 3/8 in (8 mm) for compatibility with standard indicator holders
• Flat Carbide Anvils: Wide 0.53 × 0.47 in (13.5 × 12 mm) carbide contact surfaces for durability and wear resistance
• Chamfered Anvil Edges: Both front edges of the anvil are chamfered for smooth, easy workpiece insertion
• Anvil Retracting Stroke: 0.078 in / 2 mm
• Anvil Positioning Range: 1 in / 25 mm
• Anvil Flatness: 0.00004 in / 1 µm for highly accurate contact
• Recommended Indicator (optional): Mitutoyo part #2803SB-10 (0.0001 in resolution)

The Series 201 snap gage frame is built for demanding shop floor conditions, offering a rigid, stable platform for repeatable measurement. The combination of carbide anvils, precise positioning range, and chamfered entry edges makes this gage an efficient solution for in-process diameter inspection. Note: Dial indicator is not included.
