Mitutoyo 186-905 Radius Gage Set 9/16-1 Inch 8 Leaves Concave Convex

The Mitutoyo 186-905 is a precision radius gage set designed for accurately measuring concave and convex radii in machining, inspection, layout, and pattern-making applications. This 8-leaf set covers radii from 9/16 inch to 1 inch in 1/16-inch increments, providing comprehensive coverage for common radius verification tasks.

Key Features:

• Eight individual gages ranging from 9/16 inch to 1 inch by sixteenths
• Dual-sided design measures both concave and convex radii
• Precisely finished measuring surfaces with smooth, accurate edges
• Five measuring locations per gage for versatile positioning

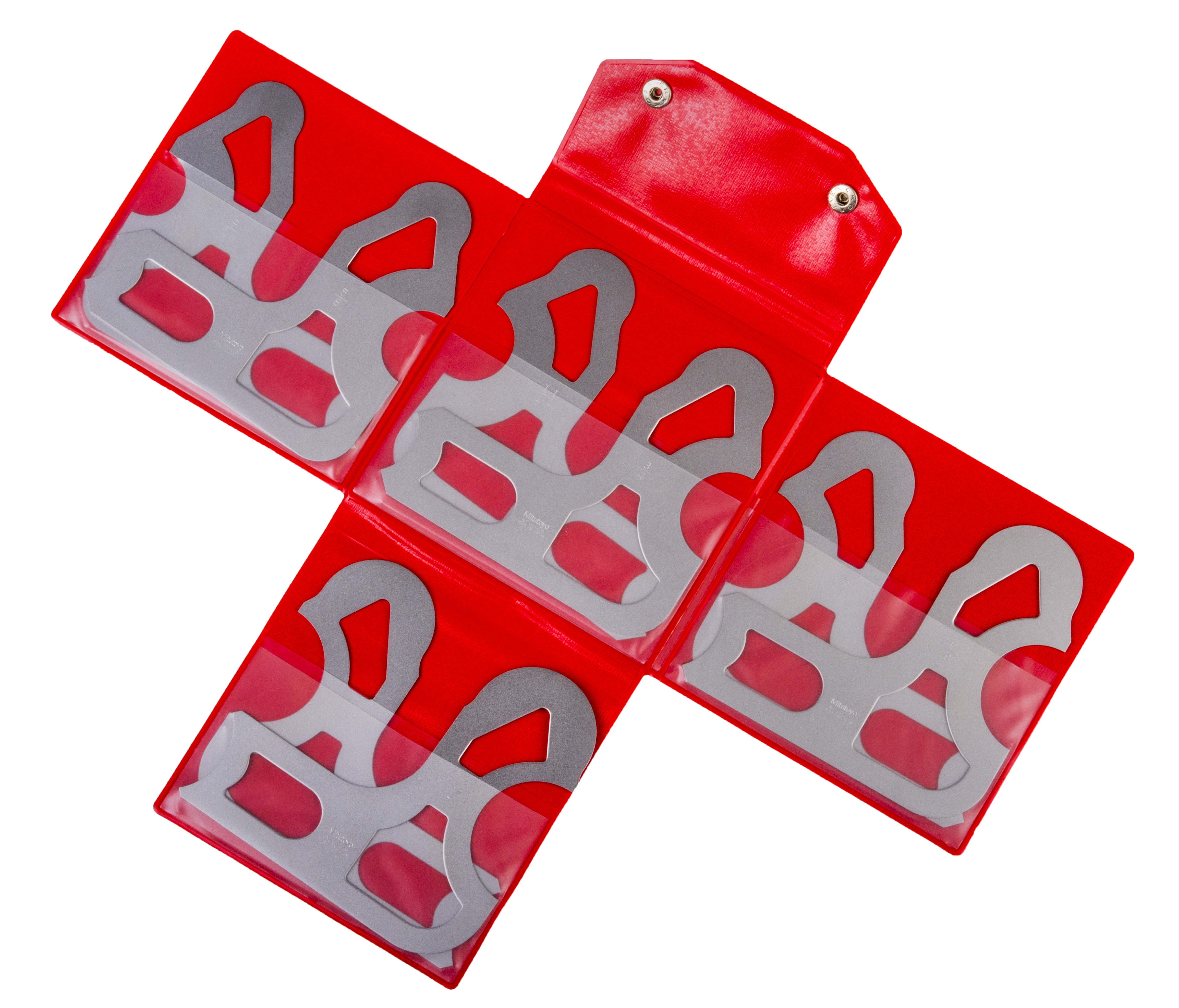

• Includes sturdy holder for organized storage and protection
• Individual gages allow faster, easier radius verification than templates

Each gage in this set is manufactured to Mitutoyo's exacting quality standards, ensuring reliable measurements for quality control, machining setup verification, and inspection tasks. The holder keeps all gages organized and readily accessible while protecting the precision measuring surfaces from damage.
