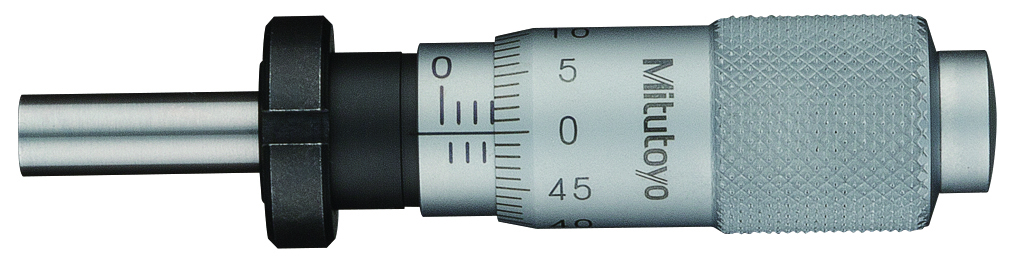

Mitutoyo 148-103 Micrometer Head 0-13mm Range 2μm Accuracy 9.5mm Stem

The Mitutoyo 148-103 is a compact, common-type micrometer head designed for precision measurement applications. This small-size micrometer head offers a 0-13mm measuring range with 2μm (0.002mm) accuracy, making it ideal for fine adjustment and positioning tasks in manufacturing, inspection, and quality control operations.

Key Features:

• 0-13mm (0-0.51") measuring range with 2μm resolution
• 9.5mm stem diameter for secure mounting
• Clamp nut stem design for stable positioning
• Flat spindle face configuration
• Hard-chrome plated scale surface for durability and clear readings
• Compact design suitable for space-constrained installations

Micrometer heads are commonly used in jigs, fixtures, gauging equipment, and machine tools where precise linear adjustment is required. The clamp nut allows the spindle to be locked in position once the desired measurement is achieved. The hard-chrome plated scale provides long-lasting wear resistance and maintains excellent readability throughout the tool's service life.
