Mitutoyo 126-803 Screw Thread Micrometer Anvil and Spindle Set TPI - 24-14

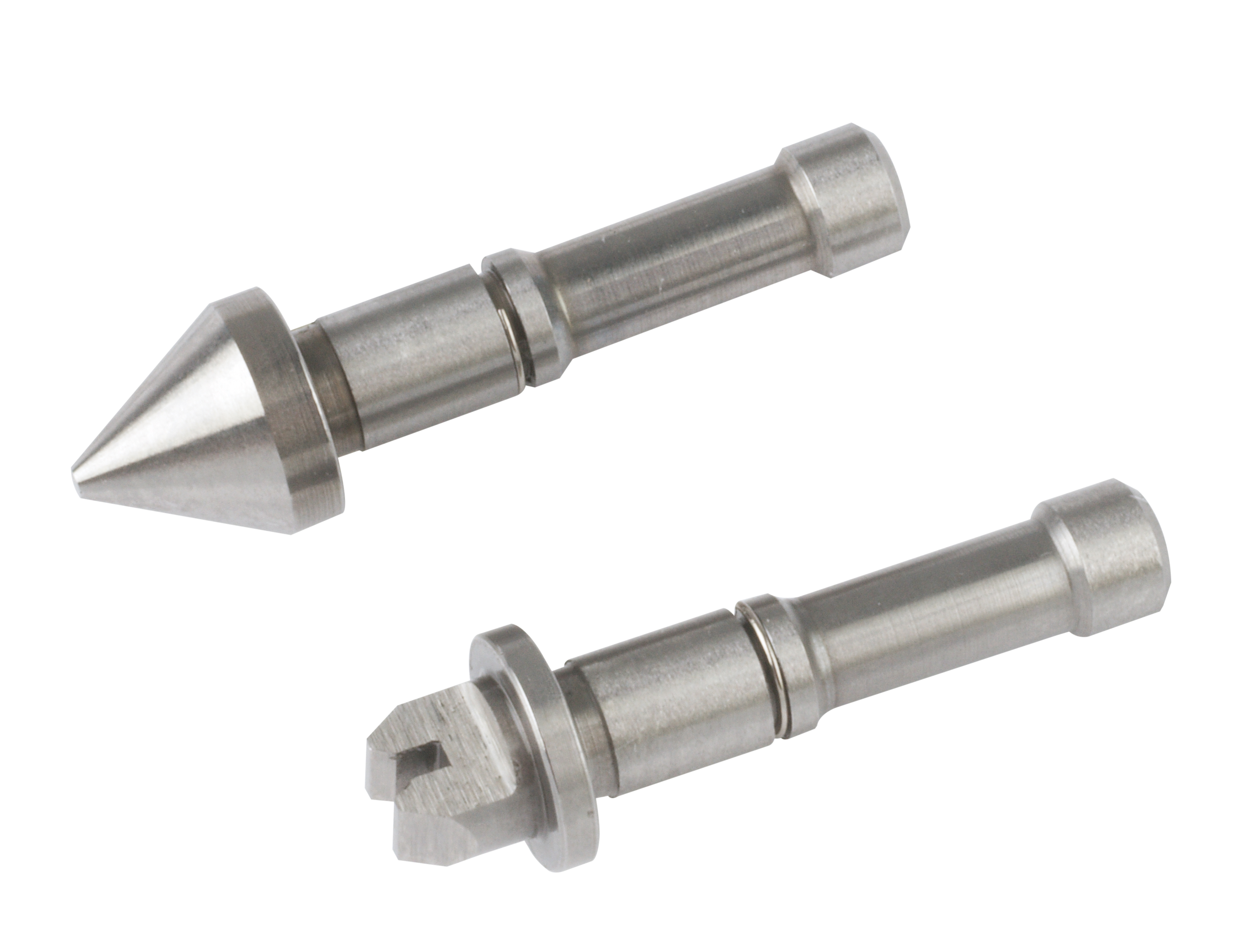

The Mitutoyo 126-803 is a precision screw thread micrometer anvil and spindle set designed for accurate measurement of external threads. This optional accessory features a V-shaped anvil and conical spindle tip configuration optimized for thread pitch measurement.

Key Features:

• V-anvil and conical spindle design for secure thread engagement
• Covers 24-14 TPI (threads per inch) range for unified threads
• Compatible with 1.0-1.75mm metric thread pitches
• Dual measurement capability for both metric and unified external threads
• Precision-ground contact surfaces for accurate pitch diameter measurement
• Interchangeable accessory for Mitutoyo screw thread micrometers

This anvil and spindle set allows machinists and quality control professionals to verify thread specifications with Mitutoyo's renowned accuracy. The specialized tip geometry ensures proper contact with thread flanks for reliable pitch diameter readings across a broad range of coarse and fine thread sizes.
