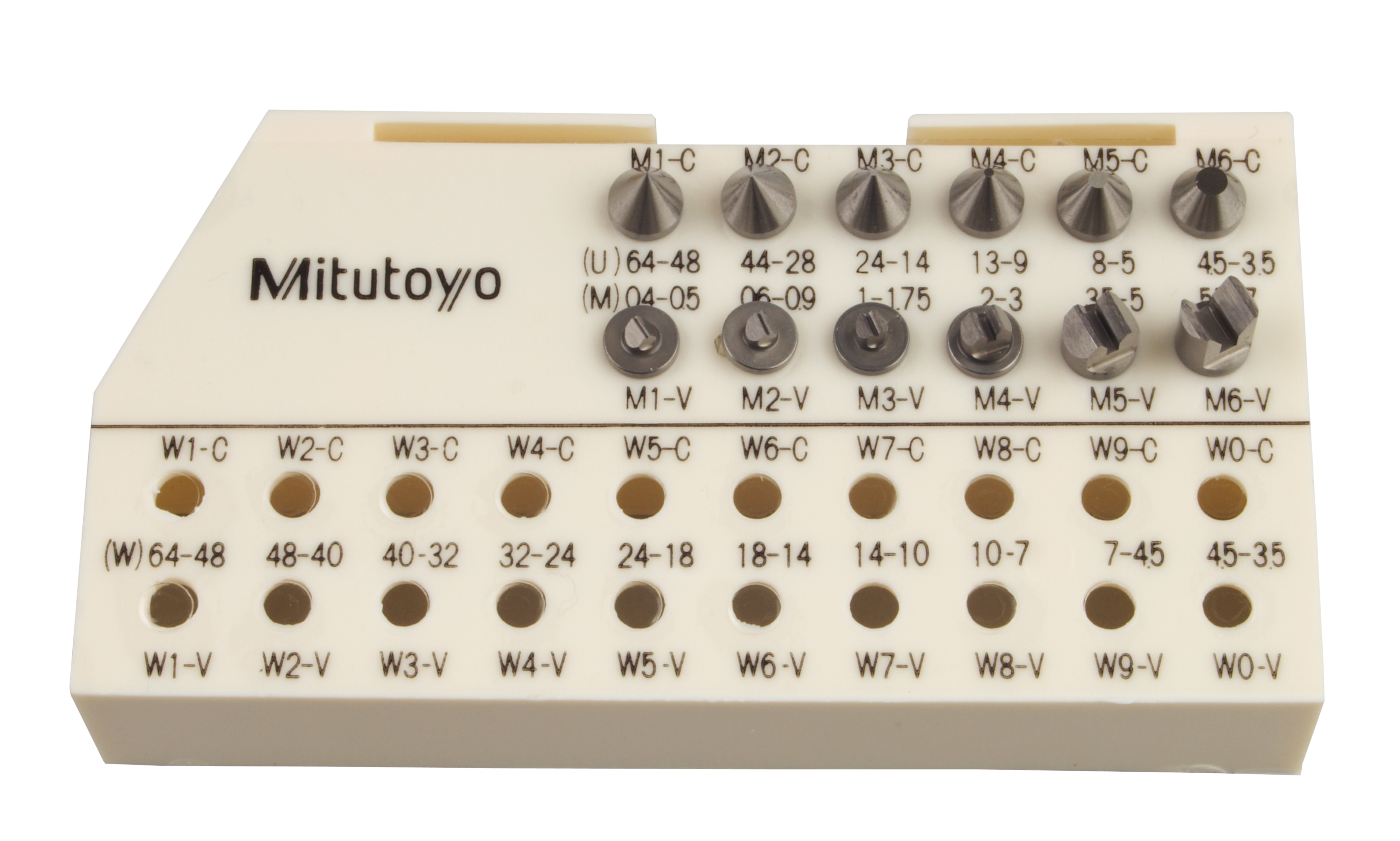

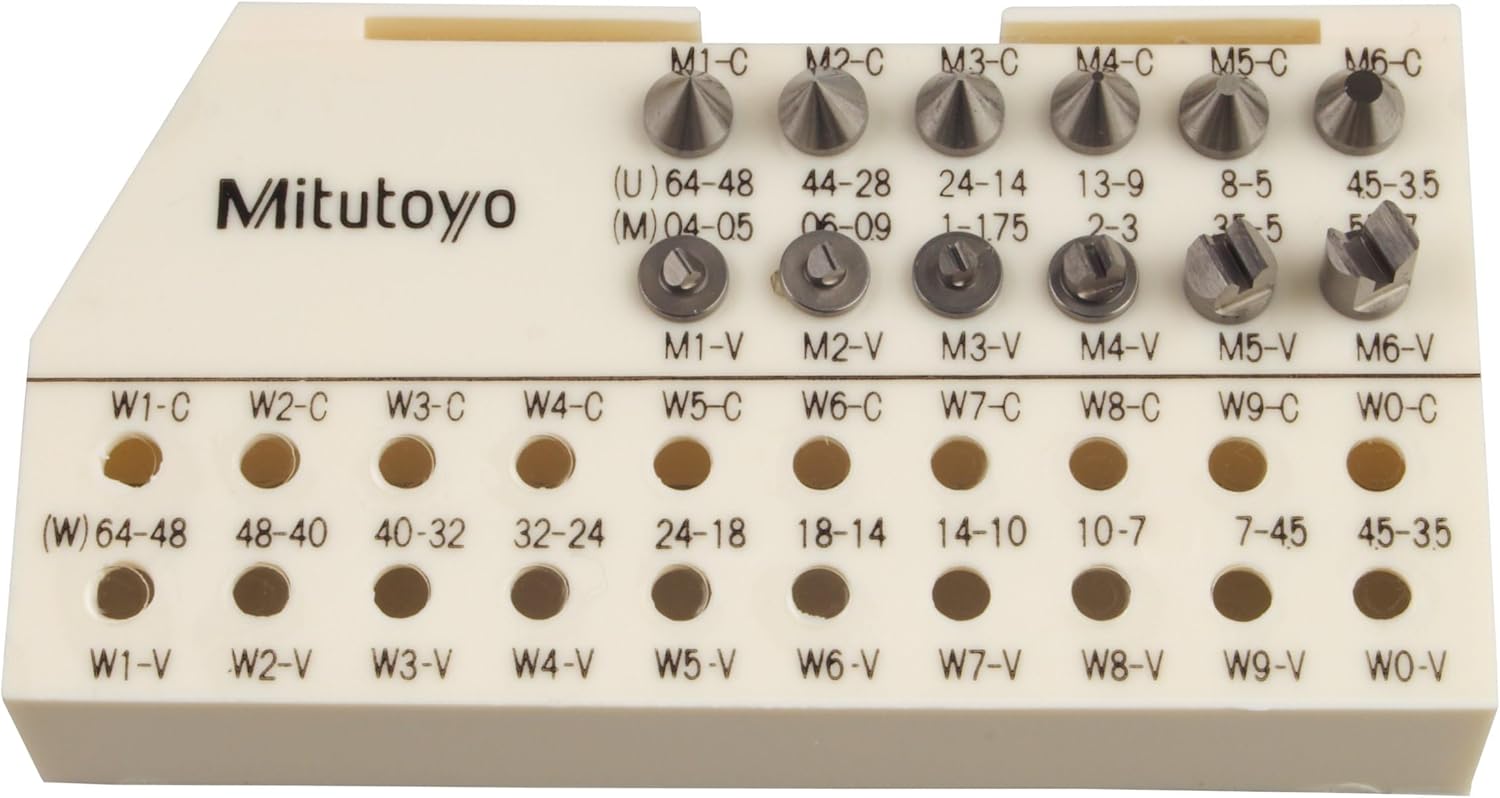

Mitutoyo 126-800 Screw Thread Micrometer Anvil/Spindle Tip Set, 6-Piece

The Mitutoyo 126-800 is a 6-piece screw thread micrometer anvil and spindle tip set for measuring Metric and Unified external screw threads with 60 degree thread forms. The optional anvils let a screw thread micrometer cover a wide range of thread pitches.

Thread Ranges Covered:

• 64-48 TPI / 0.4-0.5 mm
• 44-28 TPI / 0.6-0.9 mm
• 24-14 TPI / 1-1.75 mm
• 13-9 TPI / 2-3 mm
• 8-5 TPI / 3.5-5 mm
• 4.5-3.5 TPI / 5.5-7 mm

Key Features:

• Set includes optional anvils with 60 degree threads
• Each anvil can be used for both metric and unified external threads
• The micrometer anvil is fully adjustable by the knurled knob
