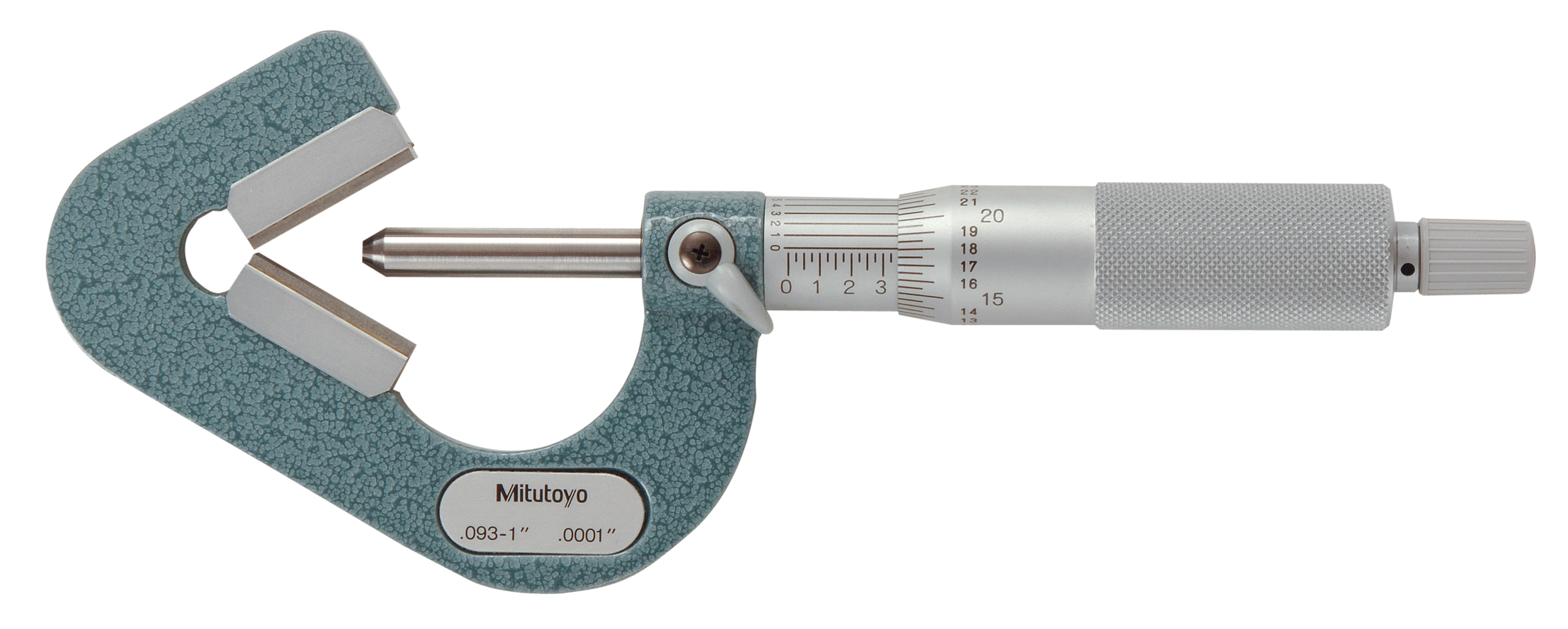

Mitutoyo 114-202 V-Anvil Micrometer 0.09-1 Inch Range .0001 Inch Resolution 3 Flute

The Mitutoyo 114-202 is a precision mechanical V-anvil micrometer designed specifically for measuring 3-flute cutting tools and hard-to-reach dimensions. This specialized micrometer features a measuring range of 0.09 to 1 inch with an exceptional resolution of .0001 inch (0.1 mil), making it ideal for precision toolroom and manufacturing applications.

Key Features:

• V-shaped anvil and pointed spindle configuration optimized for 3-flute cutter measurement
• Measuring range: 0.09-1.00 inch
• Resolution: .0001 inch for precise dimensional control
• Ratchet stop mechanism ensures consistent measuring force and repeatable readings
• Pointed measuring points provide access to grooves, recesses, and difficult-to-reach features
• Available with 15° and 30° measuring point angles for various applications

This V-anvil micrometer is essential for accurately measuring the outside diameter of cutting tools such as end mills, reamers, and drills with three flutes. The ratchet stop ensures that operators apply uniform pressure during measurement, eliminating variations caused by excessive force and improving measurement consistency across multiple users.
