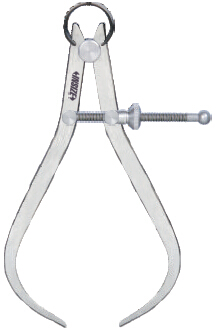

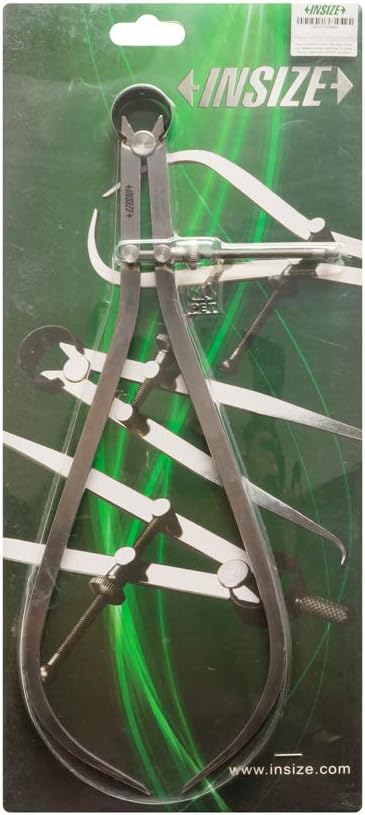

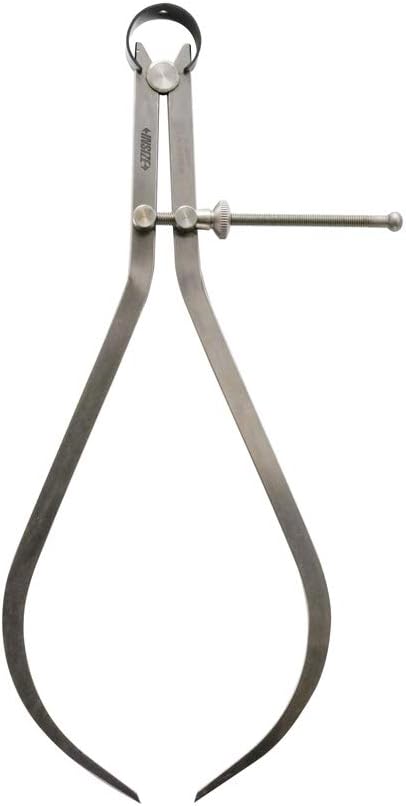

InSize 7262-300 Outside Spring Caliper 12 Inch Measurement Tool

The InSize 7262-300 is a precision outside spring caliper designed for taking accurate indirect measurements in metalworking, machining, and woodworking applications. This 12-inch caliper features a spring-loaded joint mechanism that allows for easy adjustment and consistent tension when measuring external diameters, grooves, and other outside features.

Key Features:

• Measuring range: 0 to 12.6 inches (0 to 320mm)
• Constructed from hardened carbon steel for durability and long service life
• Spring joint type provides smooth, controlled adjustment
• Stop nut mechanism locks the caliper in place after adjustment
• Solid point tips with flat leg style for stable contact
• Designed for use with rulers or high-precision gauges for measurement reading

To use, adjust the caliper legs until they make contact with the workpiece feature, lock the setting with the stop nut, then measure the distance between the legs using a precision measuring device. Ideal for shop environments where indirect measurement methods are preferred or necessary.
