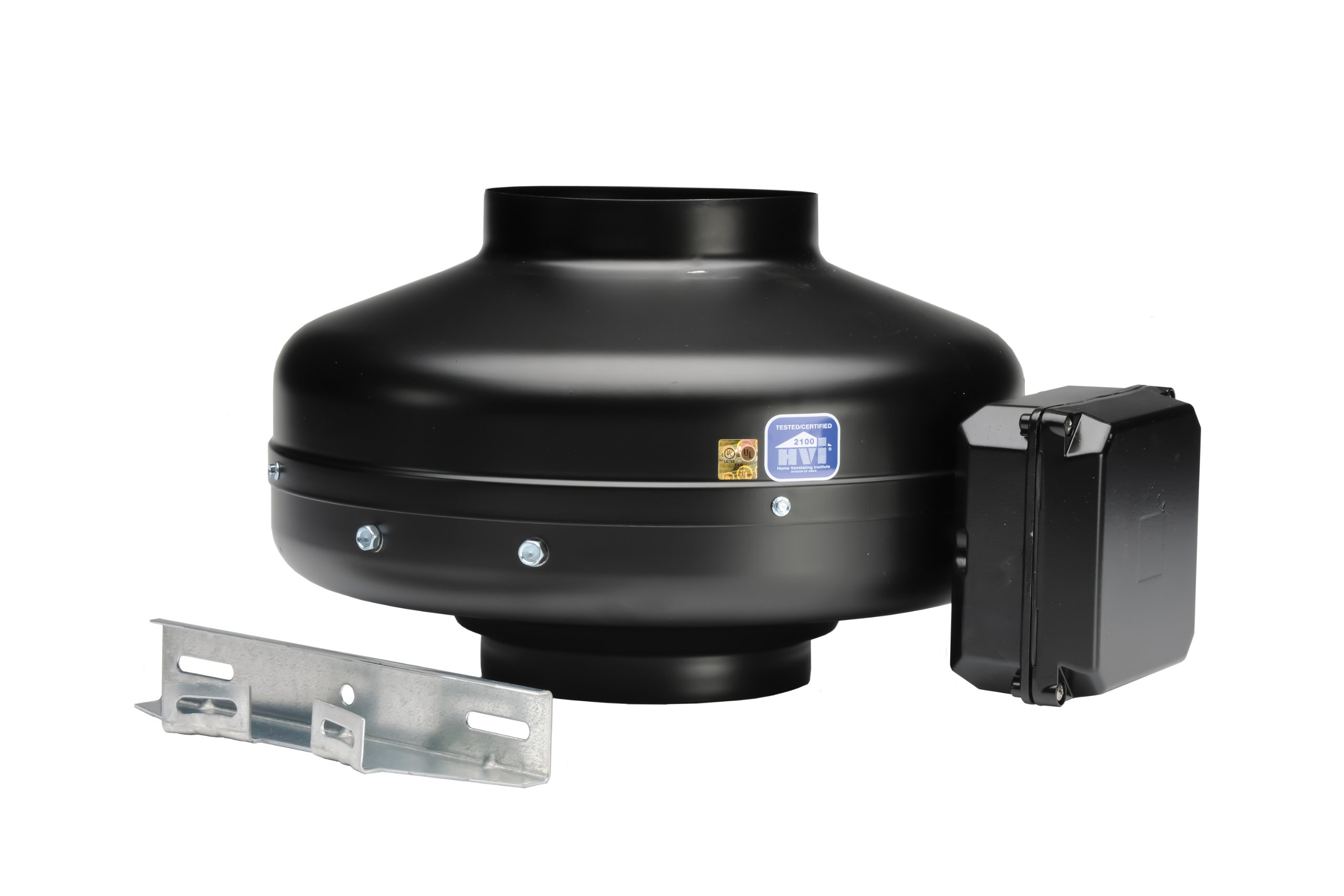

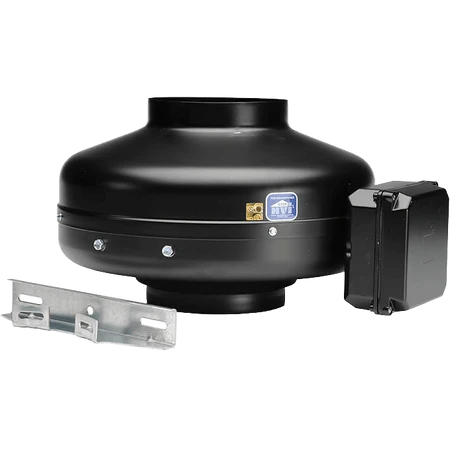

Soler & Palau PV-150X 6-Inch Inline Centrifugal Duct Fan 438 CFM

The Soler & Palau PV-150X Powervent is a high-performance inline centrifugal duct fan that incorporates a powerful external rotor motor factory-matched to a non-overloading backward curved centrifugal fan wheel, enabling exceptional airflow performance against high static pressure typically found in ducted ventilation systems. This 6-inch inline duct fan provides up to 438 CFM of airflow and is designed for both exhaust and supply applications in residential, commercial, and light industrial settings.

Key Features:

• Galvanized steel casing with black baked enamel coating for corrosion resistance
• Impeller factory-matched to external rotor motor and dynamically balanced to eliminate vibration
• Totally enclosed permanent split capacitor motor with permanently sealed, self-lubricating precision ball bearings
• Fully speed controllable using voltage or frequency control regulators
• Can be mounted at any angle and at any point along the duct
• Enclosed motor design allows operation in high moisture, lint and dust-laden air
• Includes strong galvanized steel mounting bracket and pre-wired junction box for fast installation
• Sealed-for-life bearings designed for continuous operation up to 40,000 hours
• UL and cUL listed, ETL listed, bears AMCA seal and HVI certified for air performance

Backed by a comprehensive 5-year warranty, the PV-150X is engineered for simple installation and many years of maintenance-free operation. Operates on standard 115V/60Hz single phase electrical connection.
