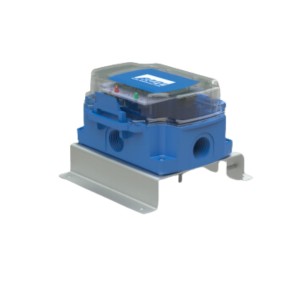

BAPI BA/LDT4-RS25-BBLTF Water Leak Detector with RS485 Communication

Manufacturer

Part Number

BA/LDT4-RS25-BBLTF
Sale Price

$153.11

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The BAPI BA/LDT4-RS25-BBLTF is a professional-grade water leak detection system designed to sense the presence of water and alert a central monitoring system to prevent potentially destructive water damage situations. This model features two 5A SPDT relay contacts, a remote spot sensor with 25-foot FEP cable, liquid tight fitting, and a BAPI-Box enclosure with a 5-year manufacturer warranty.

Key Features:

  • Detects water presence within 5 seconds and activates an LED alarm indication
  • Dual SPDT 5 Amp relay outputs at 30VAC/DC for reliable alarm signaling
  • Submersible remote sensor with FEP plenum-rated, waterproof cable
  • Effective for various water types including dirty, purified, deionized, distilled, and reverse osmosis water
  • Field-selectable latching or non-latching alarm operation, and normally energized or normally de-energized settings
  • NEMA 4 (IP66) UV-resistant polycarbonate enclosure rated UL94 V-0

Technical Specifications:

  • Power Supply: 24VAC/VDC ±10%, 3.9VA max @ 24VAC, 90mA max @ 24VDC
  • Remote Spot Sensor: 25-foot FEP cable with liquid tight fitting
  • Operating Temperature: -4 to 158°F (-20 to 70°C), 0 to 95% RH, non-condensing
  • Wiring: Accommodates 2 to 4 pairs of 12 to 22AWG wires
  • Certifications: CE 61326-1:2013 EMC, RoHS, UL

This water leak detector is ideal for protecting critical areas such as mechanical rooms, data centers, laboratories, and any location where water intrusion could cause significant damage. Upon water detection, the alarm relays change state and a local red LED illuminates to provide immediate visual confirmation of the alarm condition.
