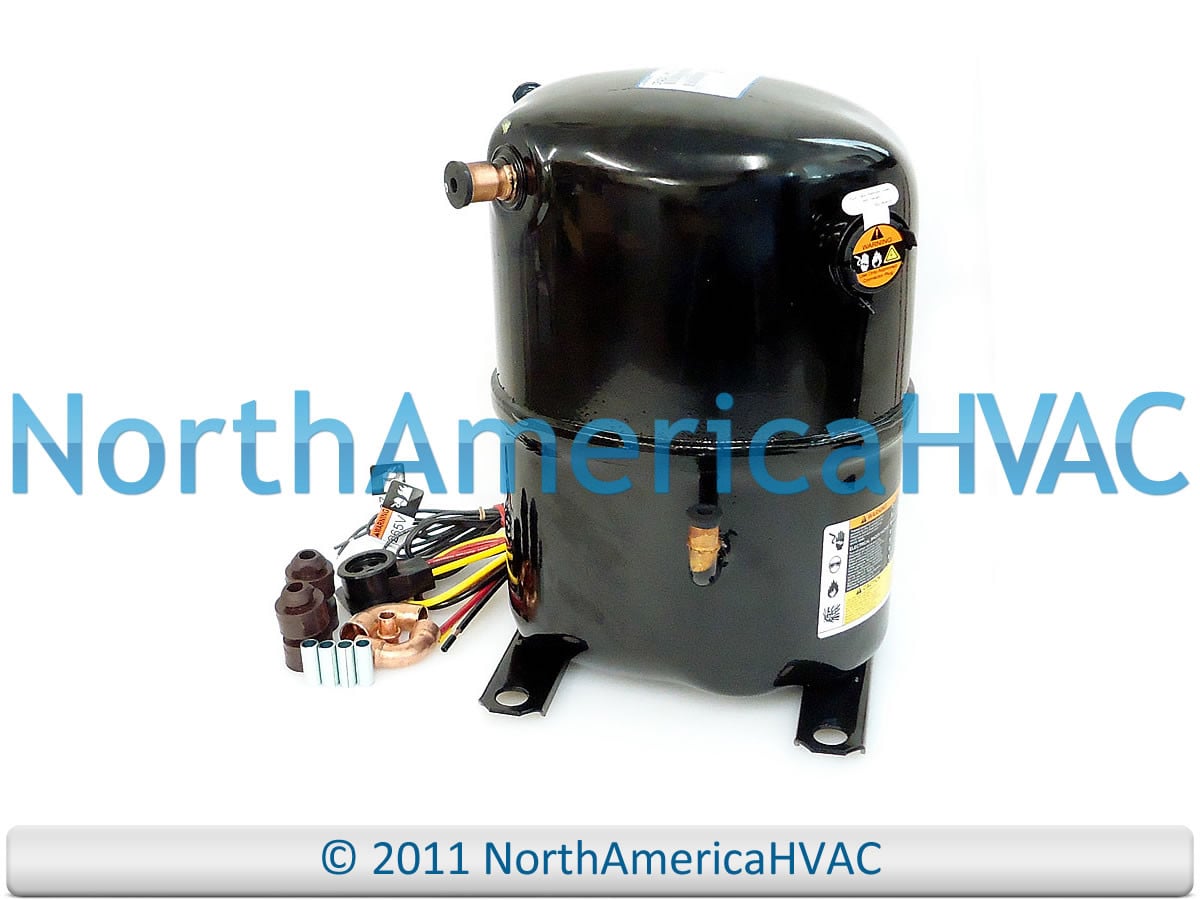

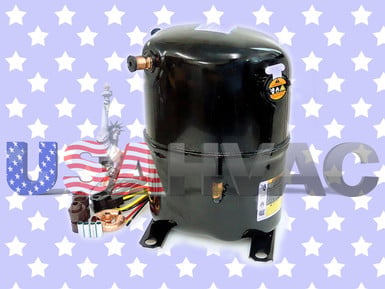

Nordyne 922136A R-22 Compressor 2.5-3 Ton 208/230V 1-Phase 28000 BTU

The Nordyne 922136A is a 2.5 to 3 ton, 208/230 volt single-phase compressor rated at 28,000 BTU, designed for use in air conditioning and heat pump systems. This compressor is replaced by the Copeland CR28K6E-PFV-875 model, which serves as a direct factory replacement for Nordyne, Intertherm, and Miller branded HVAC equipment.

Key Specifications:

• Voltage: 208/230V at 60 Hz, Running Current: 14.0 Amperes
• Refrigerant Type: R-22
• Discharge Line: 3/8 inch inside diameter, Suction Line: 3/4 inch inside diameter
• Base Mount Hole Centers: 7-1/2 x 7-1/2 inches
• Includes crankcase heater, requires 35 MFD/370V run capacitor

Dimensions:

• Length: 9-7/16 inches, Height: 14-3/16 inches, Width: 9 inches

This OEM replacement compressor is suitable for 2-1/2 to 3 ton HVAC systems and is compatible with various Nordyne, Intertherm, Miller, Gibson, Frigidaire, Maytag, and Westinghouse equipment models. Professional installation by a qualified HVAC technician is strongly recommended to ensure proper system performance and warranty compliance.
