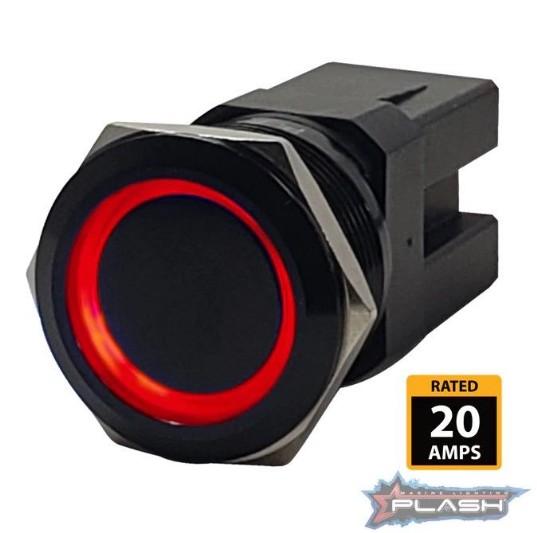

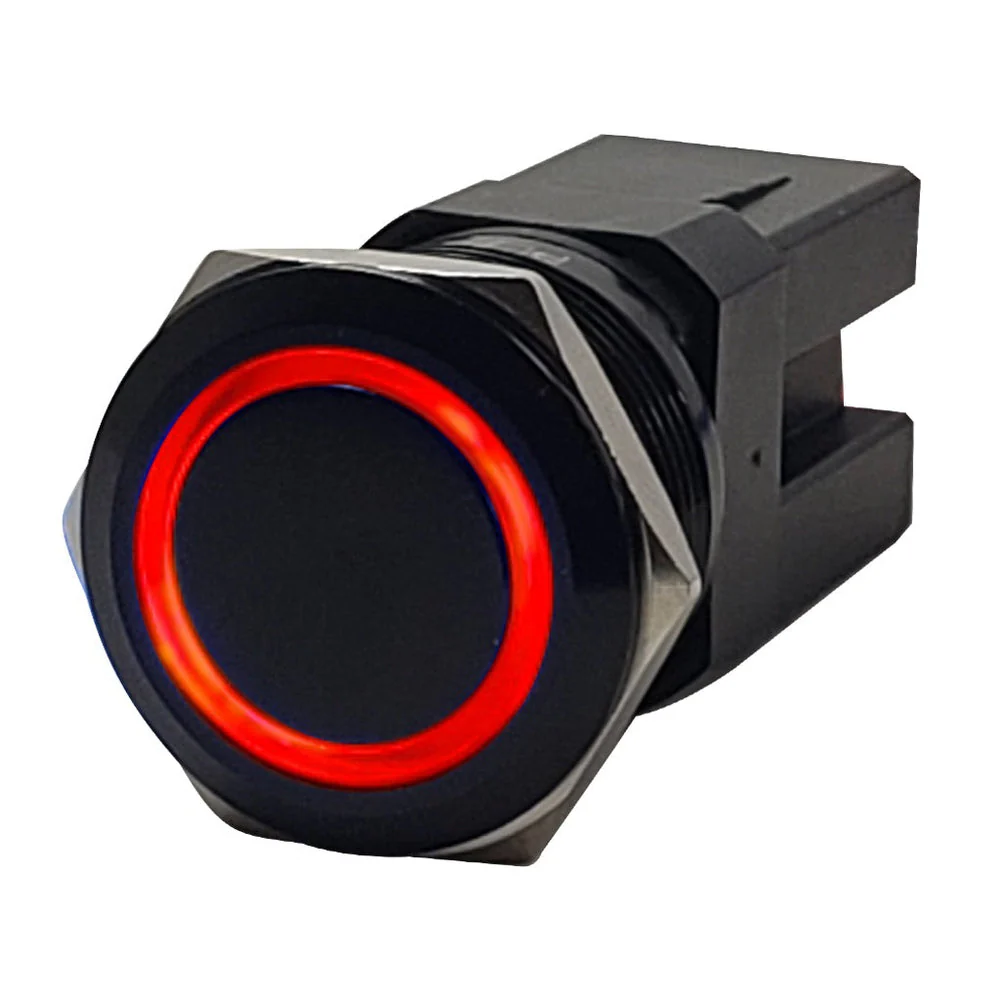

PlashLights PL22BLK-M-RD Marine Push Button Switch 20A Red LED Black Anodized Momentary

The PlashLights PL22BLK-M-RD is a professional-grade marine push button switch designed for demanding marine and powersports applications. This momentary switch features a durable black anodized aluminum housing with bright red LED illumination for clear visibility in low-light conditions.

Key Features:

• Rated for 20 amperes at 12V or 24V systems for high-power applications
• IP67 waterproof rating ensures reliable performance in wet marine environments
• Black anodized aluminum housing resists corrosion and provides long-lasting durability
• 22mm (7/8") diameter button provides easy operation compared to smaller 19mm switches
• 25mm (1") overall outside diameter for compact installation
• Configurable LED modes - rotate switch 180° to toggle between "LED Always On" and "LED On When Pressed"
• Rated for 150,000 press cycles for reliable long-term performance
• Momentary operation returns to off position when released

Installation Details:

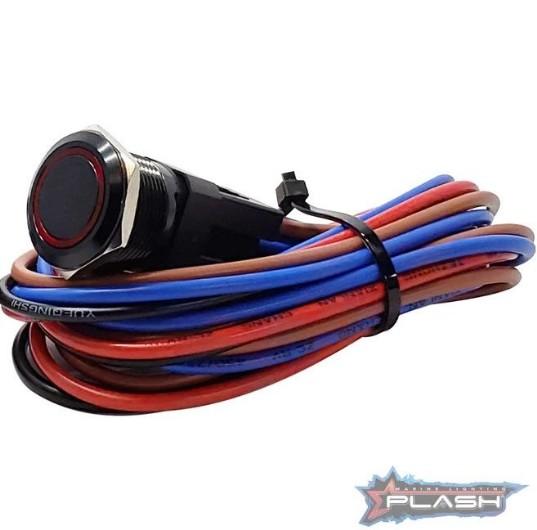

• Includes 3 feet of 14AWG marine-grade wiring with removable clip for easy harness connection
• Mounts in panels up to 3/8" thick through a standard 7/8" mounting hole
• Silky smooth button movement for premium feel and operation
• Simple 4-wire connection: Black wire for LED ground, Red wire for positive V+, Blue wire for ground, Brown wire for positive V+

Ideal for controlling bilge pumps, navigation lights, horn systems, trim tabs, and other marine electrical equipment. Backed by PlashLights Limited Lifetime Warranty for worry-free ownership.
