PlashLights HPBS-DO-22-SS-M REVERT 22MM Dual Output Marine Push Button Switch - Stainless Steel

The PlashLights REVERT HPBS-DO-22-SS-M is a professional-grade marine push button switch engineered to control two separate electrical circuits simultaneously. Built with a corrosion-resistant 316 stainless steel housing, this 22mm switch is designed to withstand the harshest marine environments including saltwater exposure, UV radiation, and constant vibration.

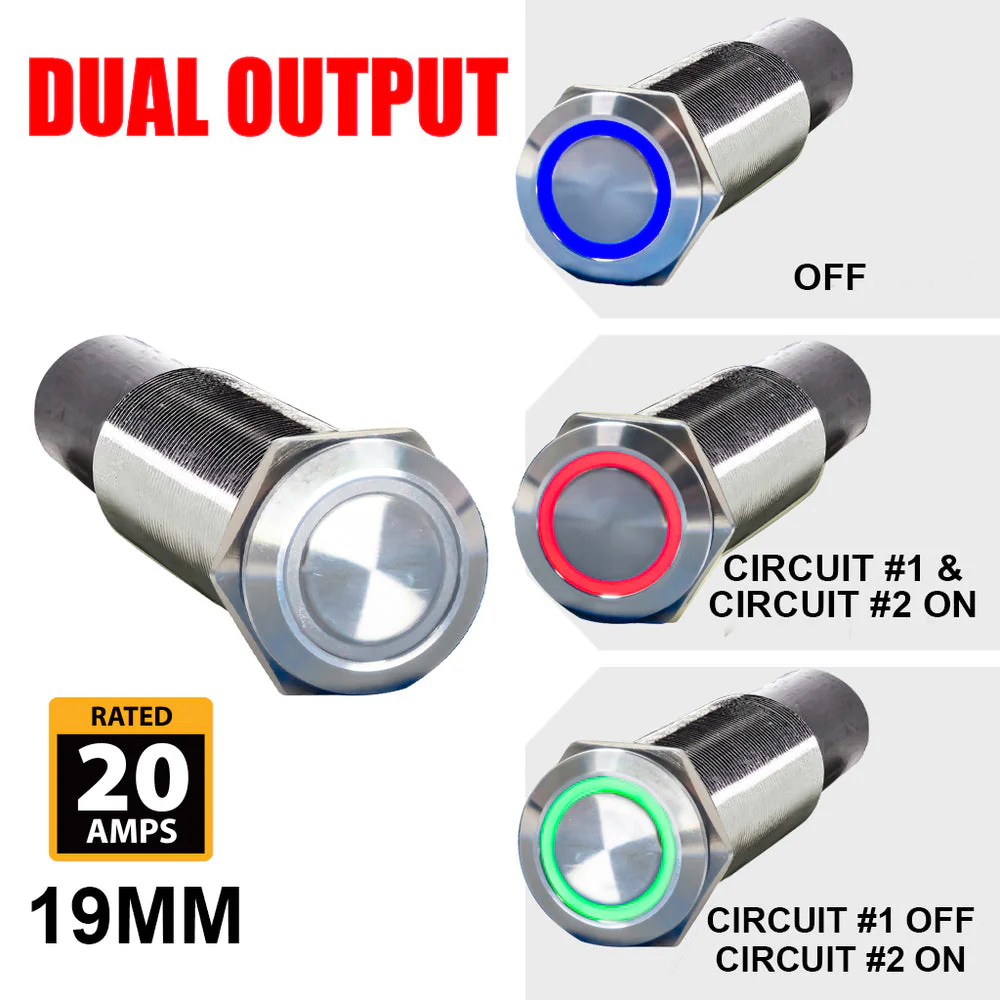

Dual Output Functionality: This innovative switch features intelligent circuit control with 3-color LED status indication. The blue LED illuminates when powered but inactive. The first press activates both Circuit #1 and Circuit #2, changing the LED to red. The second press keeps Circuit #2 active while deactivating Circuit #1, changing the LED to green. The third press returns all circuits to off with the blue LED indicator.

Key Features:

• 316 stainless steel housing for maximum corrosion resistance and durability
• 22mm (7/8 inch) diameter mounting size
• IP68 rated waterproof with fully potted electronics
• Robust mechanical switch rated for 20A capacity
• Mechanical lifespan exceeding 1 million impressions
• Tri-color LED ring with 40,000+ hour lifespan
• Input voltage range: 9-15V DC
• Salt spray tested and UV resistant
• 8.6g vibration compliant for marine applications
• 3 feet of 14 AWG copper tinned marine-grade wiring
• Removable mounting clip included

Ideal for controlling multiple marine electronics such as navigation lights paired with anchor lights, bilge pumps, lighting systems, or any dual-circuit application where space-saving and reliable operation are critical. The momentary operation style provides smooth, tactile feedback with each press.
