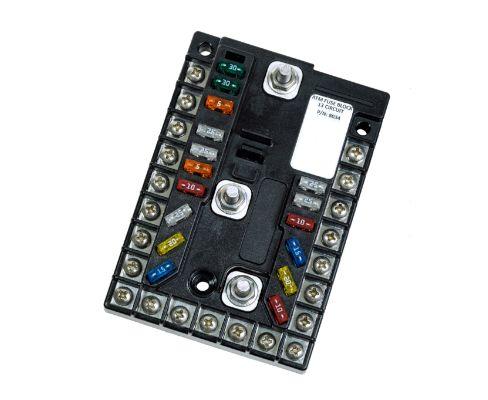

Egis Mobile Electric 8034B 13-Circuit Power Distribution Module with Ground and Blown Fuse LED Indicators

The Egis Mobile Electric 8034B is a professional-grade 13-circuit fuse block designed for harsh environment mobile electrical systems. This compact power distribution module combines circuit protection with an integrated ground return bus, reducing installation space and total installed cost while supporting up to 200 amps maximum continuous current.

Key Features:

• 13 fused output circuits plus integrated ground return bus
• Three high-amp outputs (1-50A) allow protection of all circuits with one solution
• Ten additional circuits for standard amperage loads
• Accepts ATM-Mini series style fuses for branch circuit protection
• Integrated LED indicators for each circuit provide quick blown fuse identification and troubleshooting
• Bulletproof construction with high-temperature materials rated for extreme conditions
• Stainless steel self-locking hardware allows mounting anywhere on vehicle
• Expandable up to 26 fused outputs when combined with second 8034B and link busbar (sold separately)

Applications:

Ideal for automotive, marine, RV, and powersports applications requiring reliable circuit protection in demanding environments. The compact design combines both positive distribution and ground return functions, making it perfect for upfitter installations, emergency vehicles, work trucks, and custom electrical systems where space is at a premium.

The 8034B's modular design and LED fault indicators make it an excellent choice for professional installers who need reliable circuit protection with easy diagnostics and serviceability.
