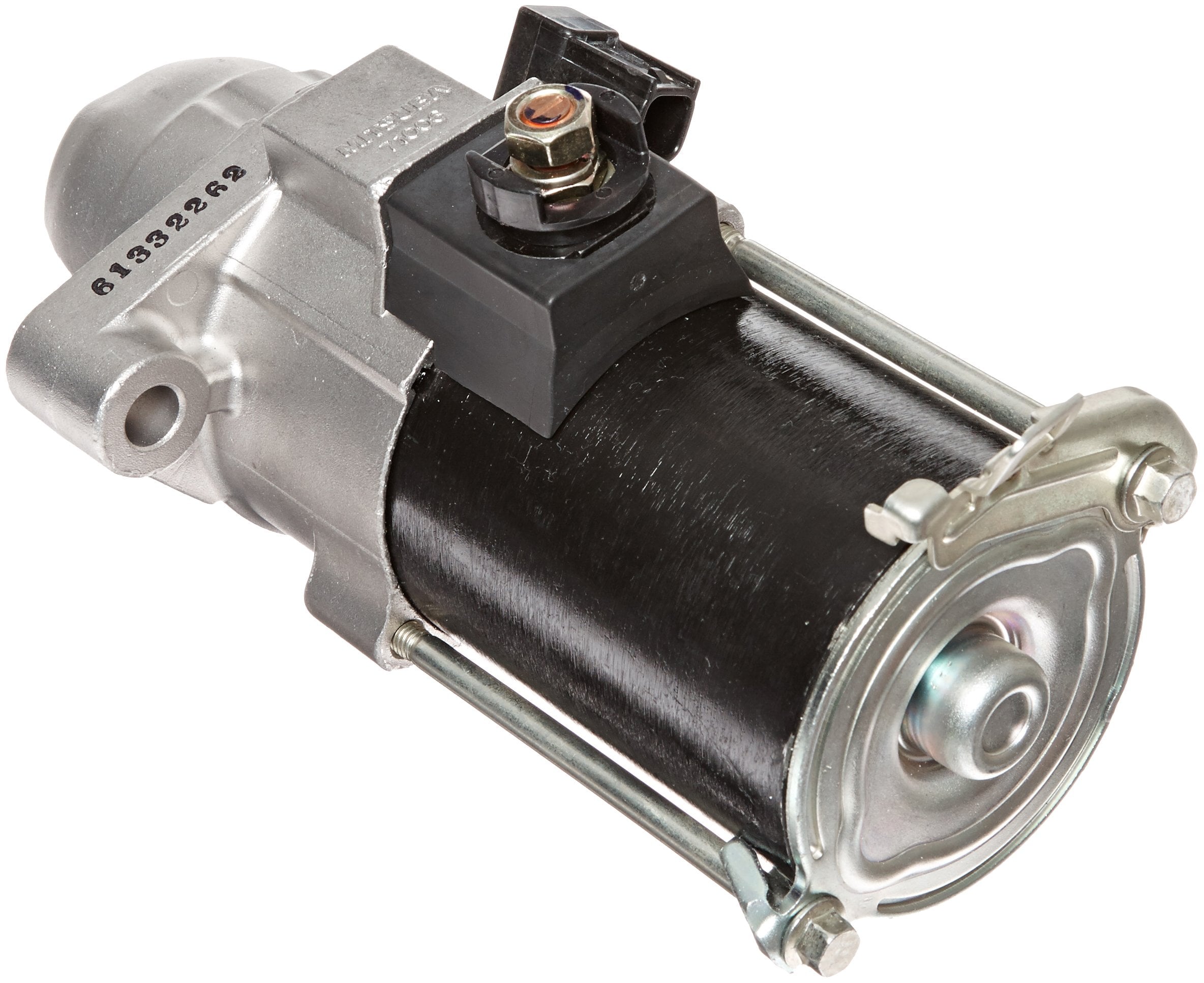

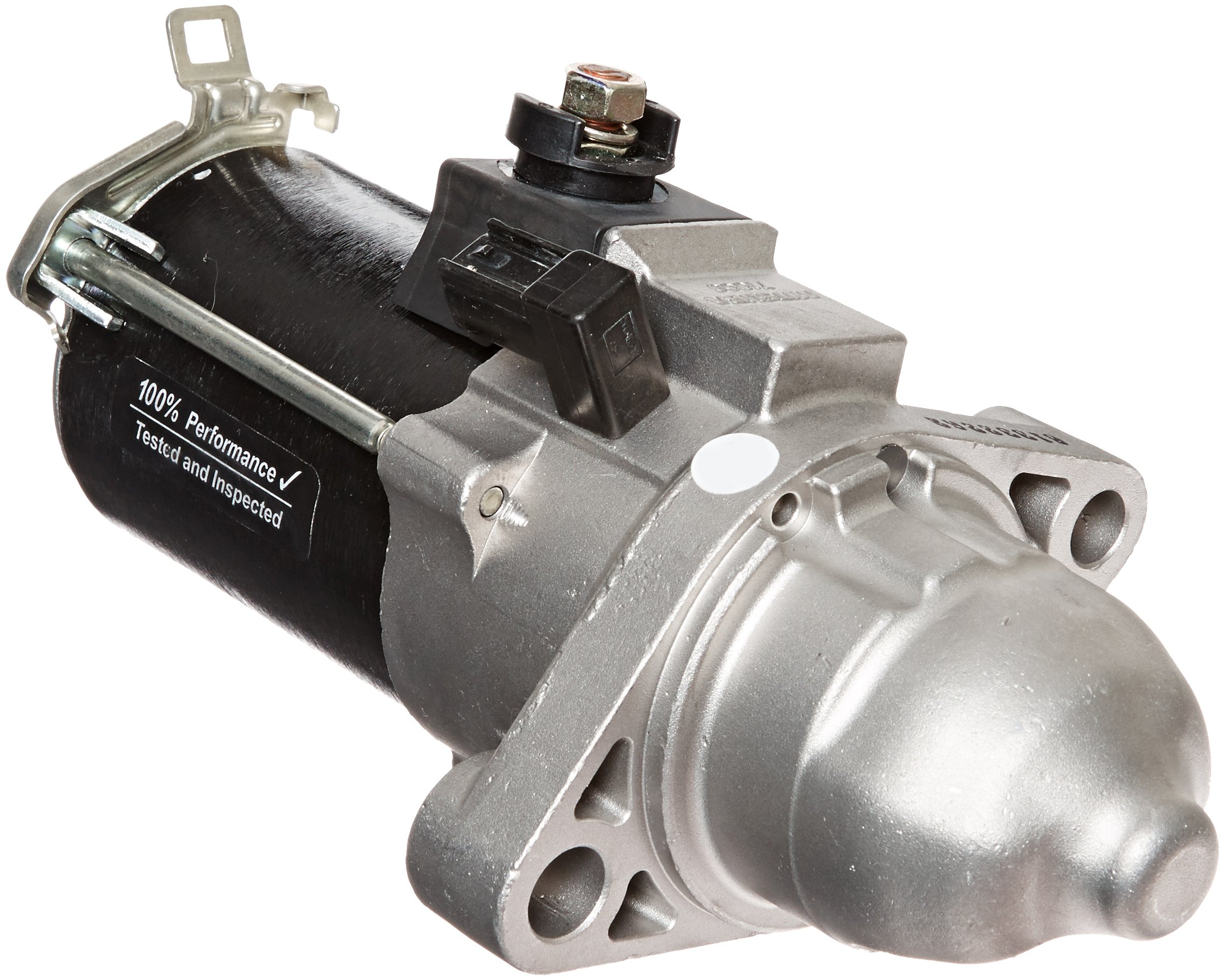

Caliso 17953 Remanufactured Starter Motor PMGR 12V 1.6kW Clockwise 11-Tooth

The Caliso 17953 is a remanufactured Permanent Magnet Gear Reduction (PMGR) starter motor engineered to meet or exceed original equipment specifications. Designed as a direct-fit replacement, this starter delivers reliable cranking performance and is built to exacting OE standards for a precise fit and consistent operation.

Key Specifications:

• Type: Permanent Magnet Gear Reduction (PMGR)
• Voltage: 12V
• Rated Power: 1.6 kW
• Rotation: Clockwise (CW)
• Pinion Gear Teeth: 11-Tooth
• Cross-Reference Part Numbers: 17953S, 16153, 410-54200R, 2448514, SMU0495, 91-26-2142
• OE Part Numbers: 31200-RWC-A01, 31200-RWC-A02, RWC5L, SM710-06, SM730-03

Remanufacturing Process:

• Housing blasted clean with all mounting threads inspected and re-tapped for easy installation
• Brushes replaced new for long service life and optimum performance
• Armature and commutator precision machined and electronically tested
• New bronze-sintered bushings installed for maximum wear resistance
• Solenoid assembly fully disassembled and remanufactured with new copper contacts
• Drive clutch remanufactured and sealed for maximum durability

Remanufactured starters offer a cost-effective, environmentally responsible alternative to buying new, with many units capable of delivering 100,000+ miles of reliable service. The Caliso 17953 is a direct bolt-on replacement that restores factory-level starting performance.
