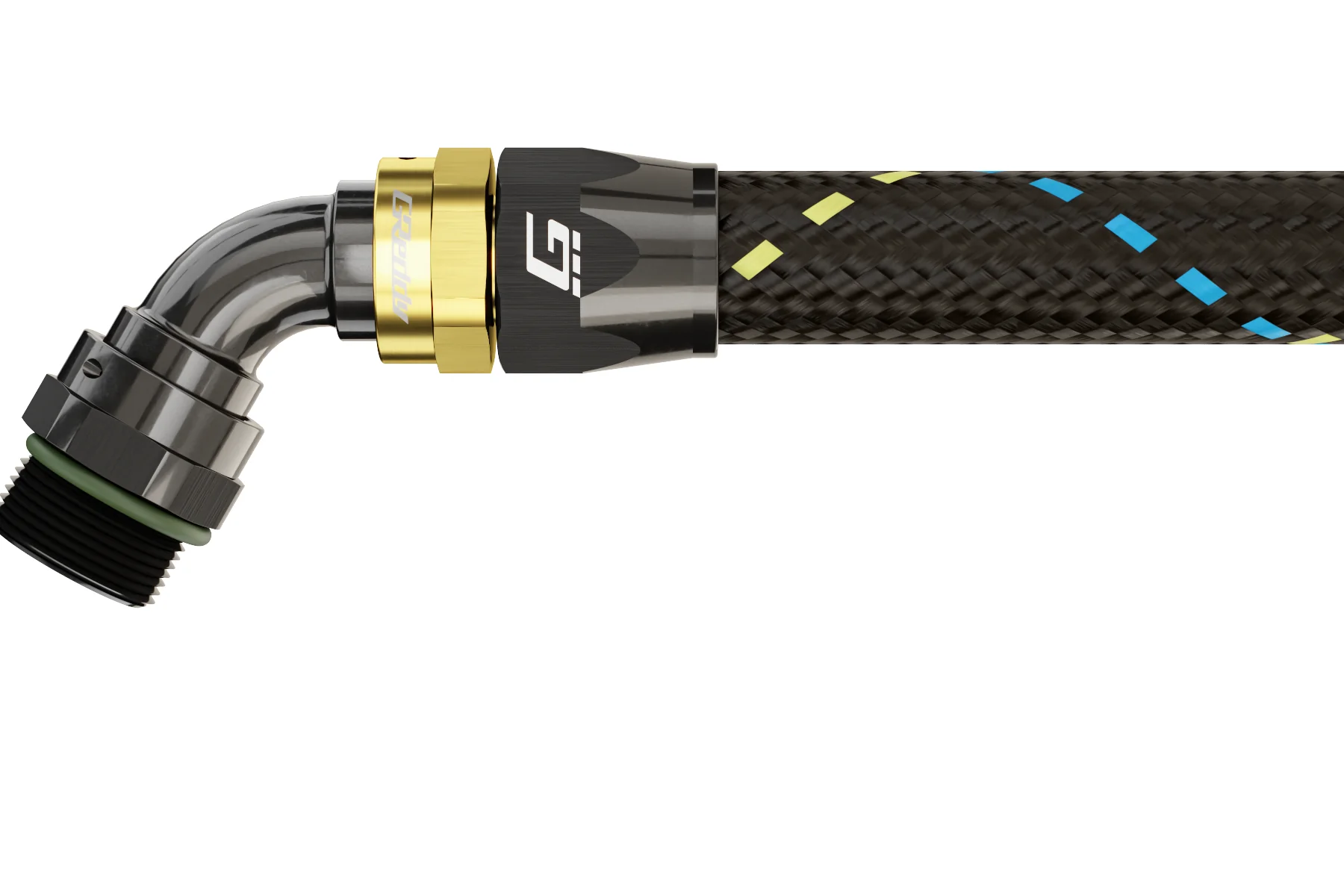

GReddy 12811060 -10AN ORB Male 60 Degree Swivel Hose End Black/Gold

Crafted from billet 6061 aluminum and featuring dual Viton O-rings and a one-way locking pin, the GReddy 12811060 is a premium -10AN ORB (O-Ring Boss) male 60-degree swivel hose end fitting finished in striking black and gold anodizing. This professional-grade fitting is designed for use in high-performance fuel, oil, coolant, and air systems where reliability and durability are essential.

Key Features:

• Machined from a single billet of 6061 aluminum, free of unsightly welds and brazing joints that are prone to failure
• Unique left-hand threaded hose nut allows for quick and easy hose seating
• Swivel feature for easy alignment and clocking of fittings once assembled, with double sealed DuPont Viton (FKM) O-rings to prevent leaks
• Includes matching plastic AN plug for convenient line servicing
• Temperature range: 15°F to 400°F with intermittent peaks up to 500°F
• 60-degree angle for versatile routing in tight spaces
• -10AN size for high-flow applications

Technical Specifications:

• Size: -10AN (ORB Male)
• Angle: 60 degrees
• Material: 6061-T6 Billet Aluminum
• Finish: Black and Gold Anodized
• Seals: Dual DuPont Viton (FKM) O-Rings
• Thread Style: Left-hand threaded hose nut

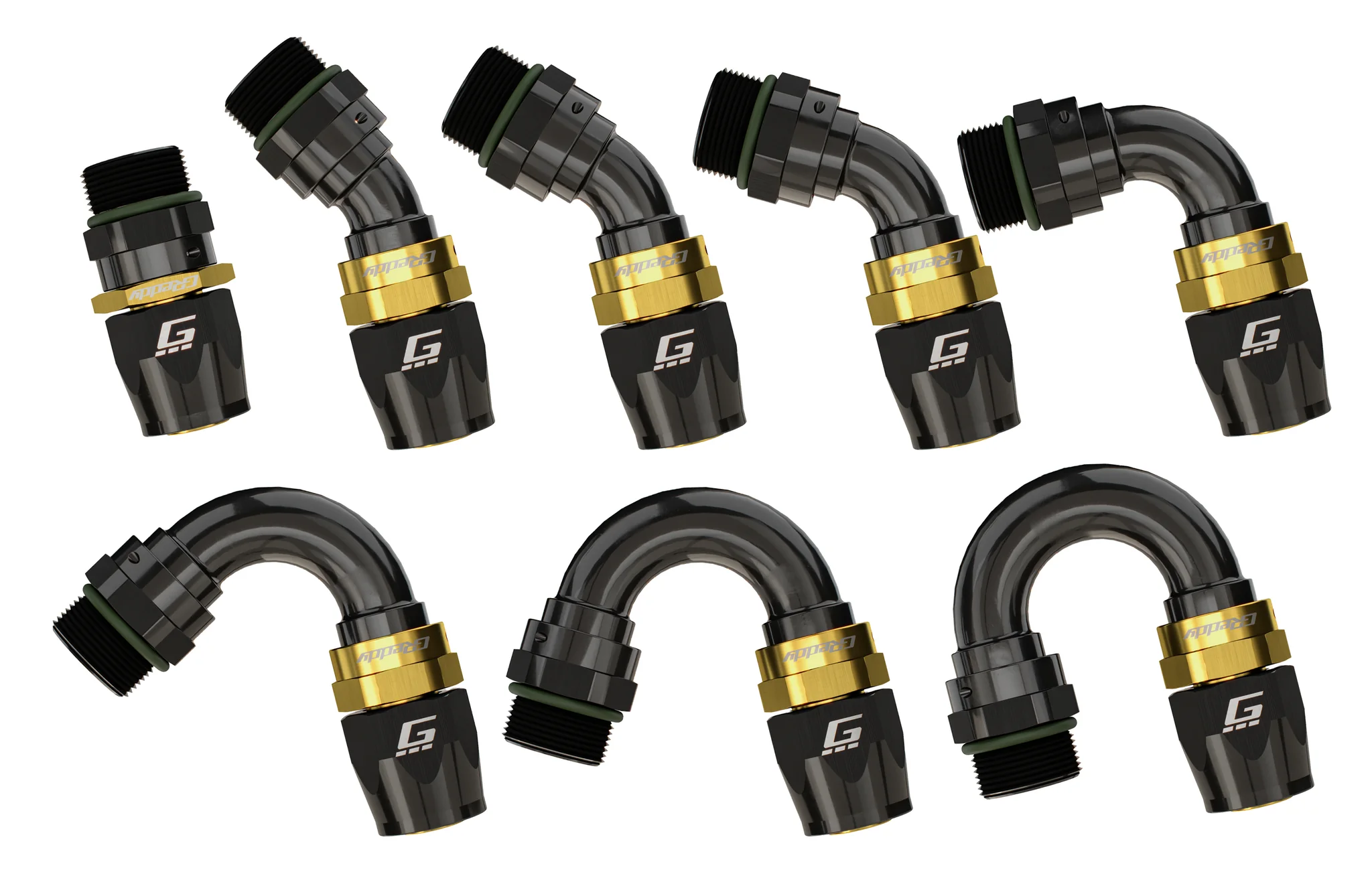

Important: Do not use brake fluid with hose end fittings or adapters containing FKM seals, these materials are incompatible and will rapidly degrade, only use EPDM sealed fittings with brake fluid. Also available in other Straight, 30deg, 45deg, 60deg, 90deg, 120deg, 150deg and 180deg angles.
