Speedmaster PCE435.1022 Ford Small Block Cylinder Head Top End Engine Combo Kit - 289 302 190cc

The Speedmaster PCE435.1022 Ford Small Block Cylinder Head Top End Engine Combo Kit is built for 289 and 302 engines and uses 190cc cylinder heads. It bundles the main top-end components in one package, so you don't have to research and match each part yourself. The kit is designed to deliver the performance you want at a better price than buying the parts separately.

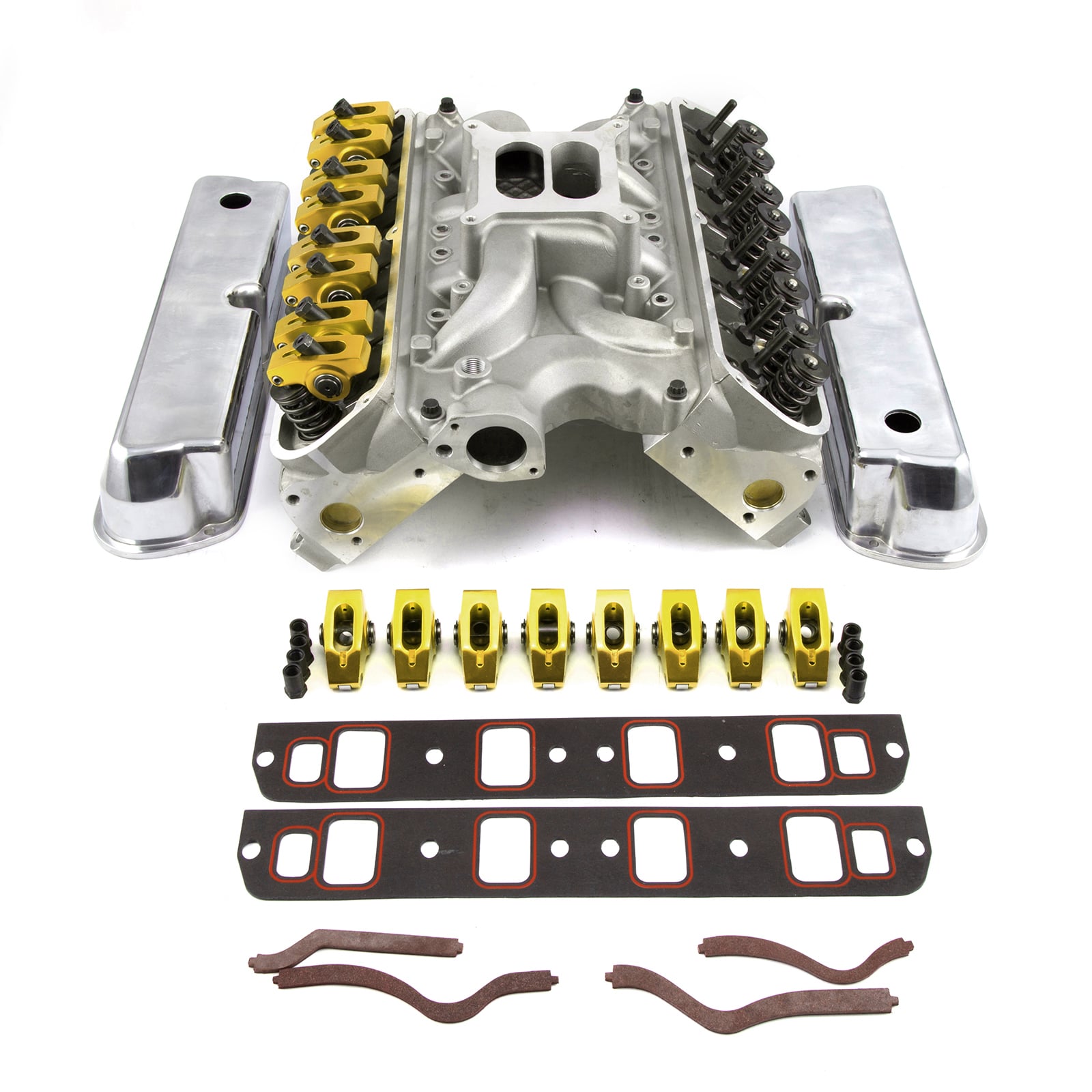

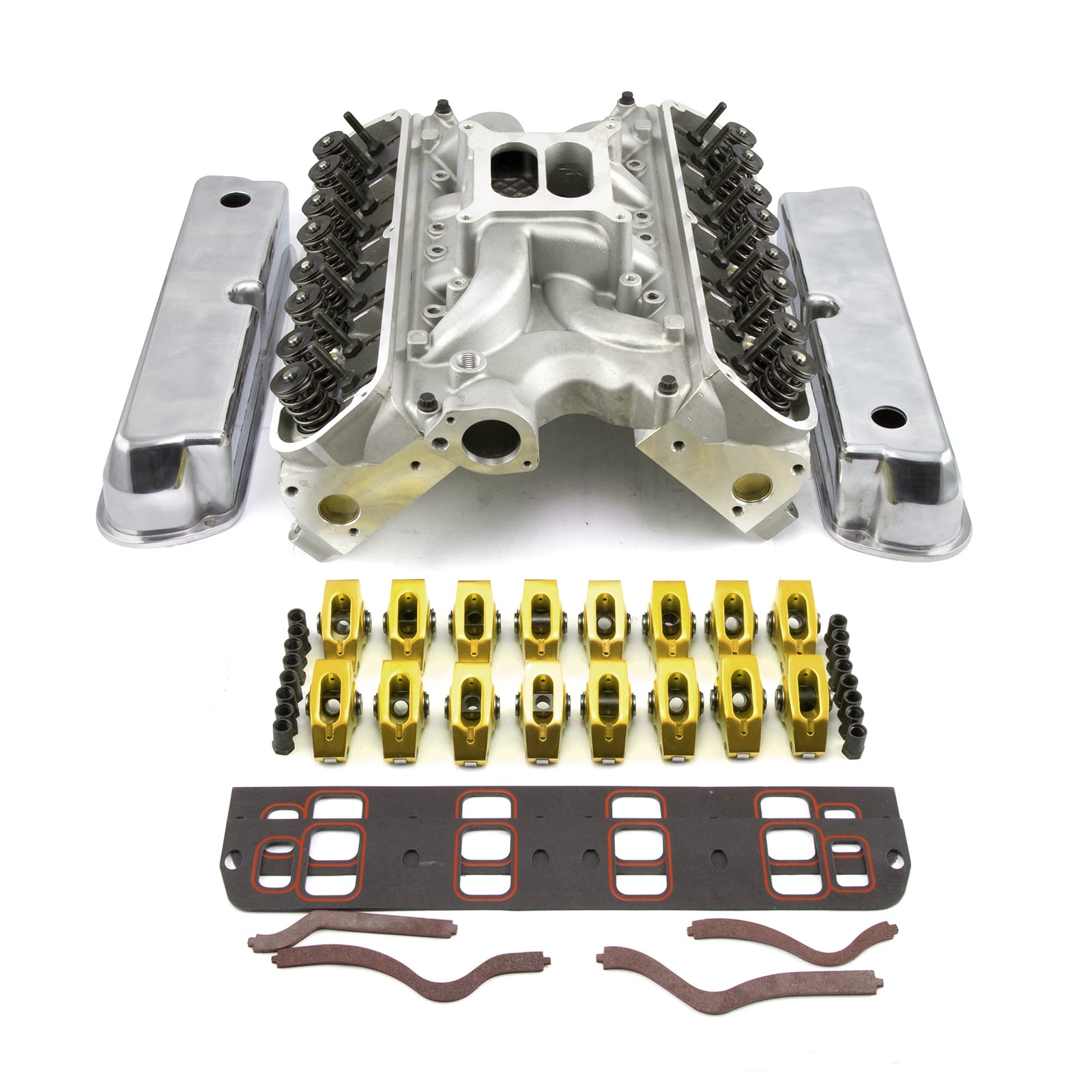

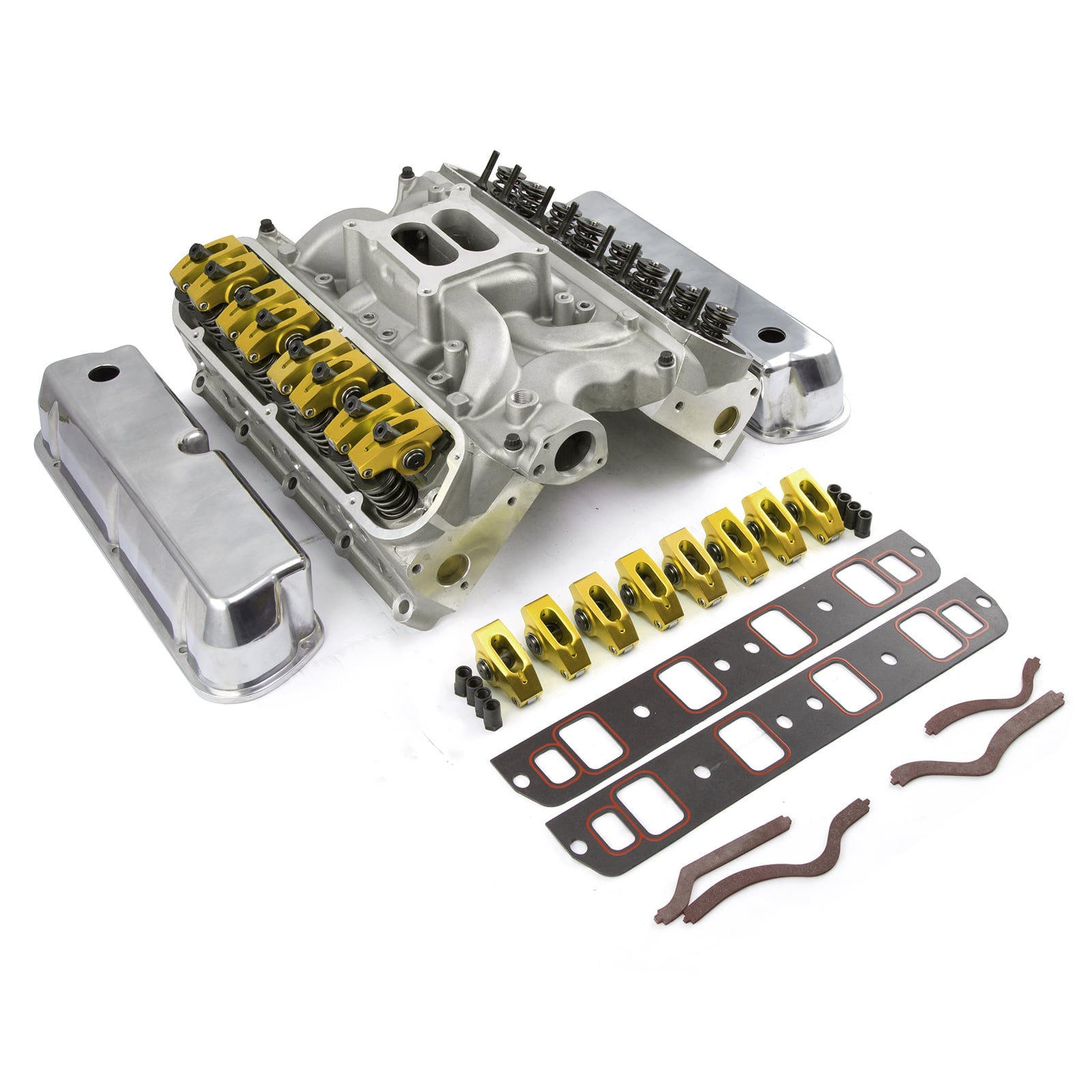

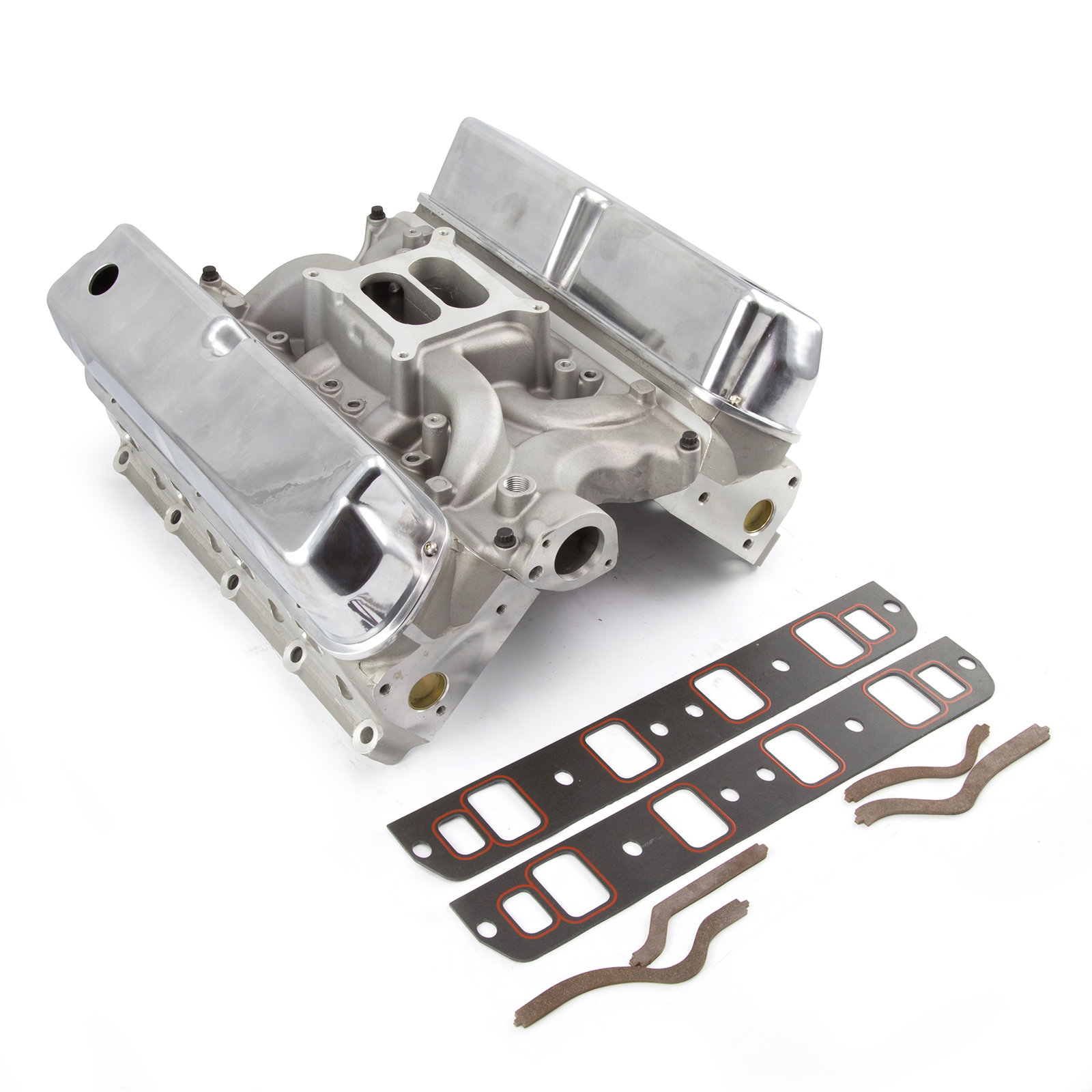

Kit Includes:

• Fully assembled PCE cylinder heads
• Intake manifold
• Valve covers
• Intake manifold gaskets
• Roller rockers
• Guideplates
• Screw-in studs

Assembly Specifications:

• Max lift: .550
• Coil bind: .740
• Intake install pressure: 130 lbs @ 1.8
• Exhaust install pressure: 130 lbs @ 1.8
• Closed seat pressure: 110 lbs
• Open seat pressure: 300 lbs

Head Gasket Recommendations:

Small Block Ford engines come in many bore sizes, so head gasket choice depends on your build. For these cylinder heads, the following gaskets are suggested:

• PCE PCE348.1007 (4.055 bore, .041 thick, MLS)
• PCE PCE348.1008 (4.185 bore, .041 thick, MLS)
• Fel-Pro 9333-PT1 (standard low-performance use)
• Fel-Pro 1011-2 (4.100 bore, .039 thick, composition)
• Fel-Pro 1006 (4.145 bore, .039 thick, composition)
• Fel-Pro 1046 (4.200 bore, .051 thick, composition)
