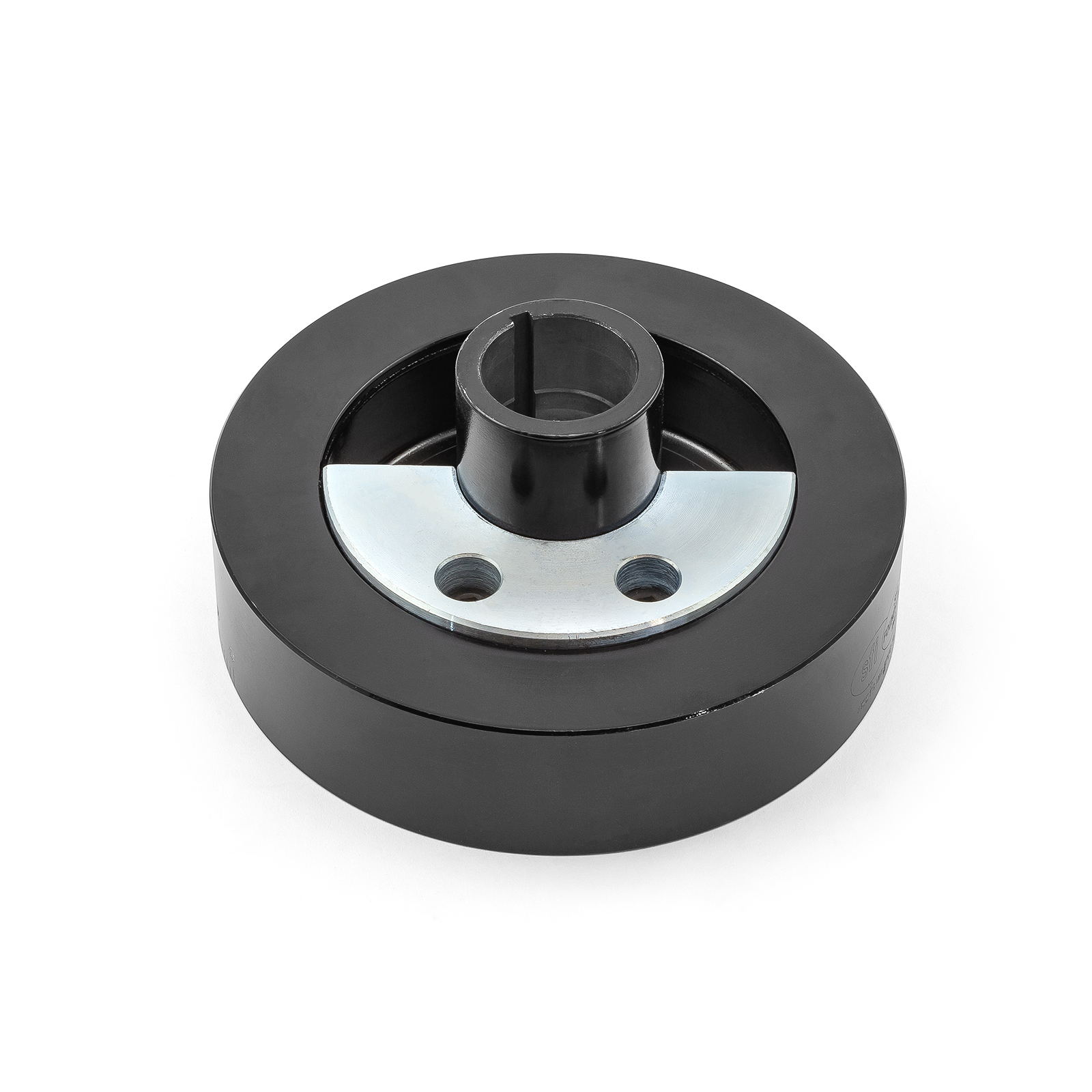

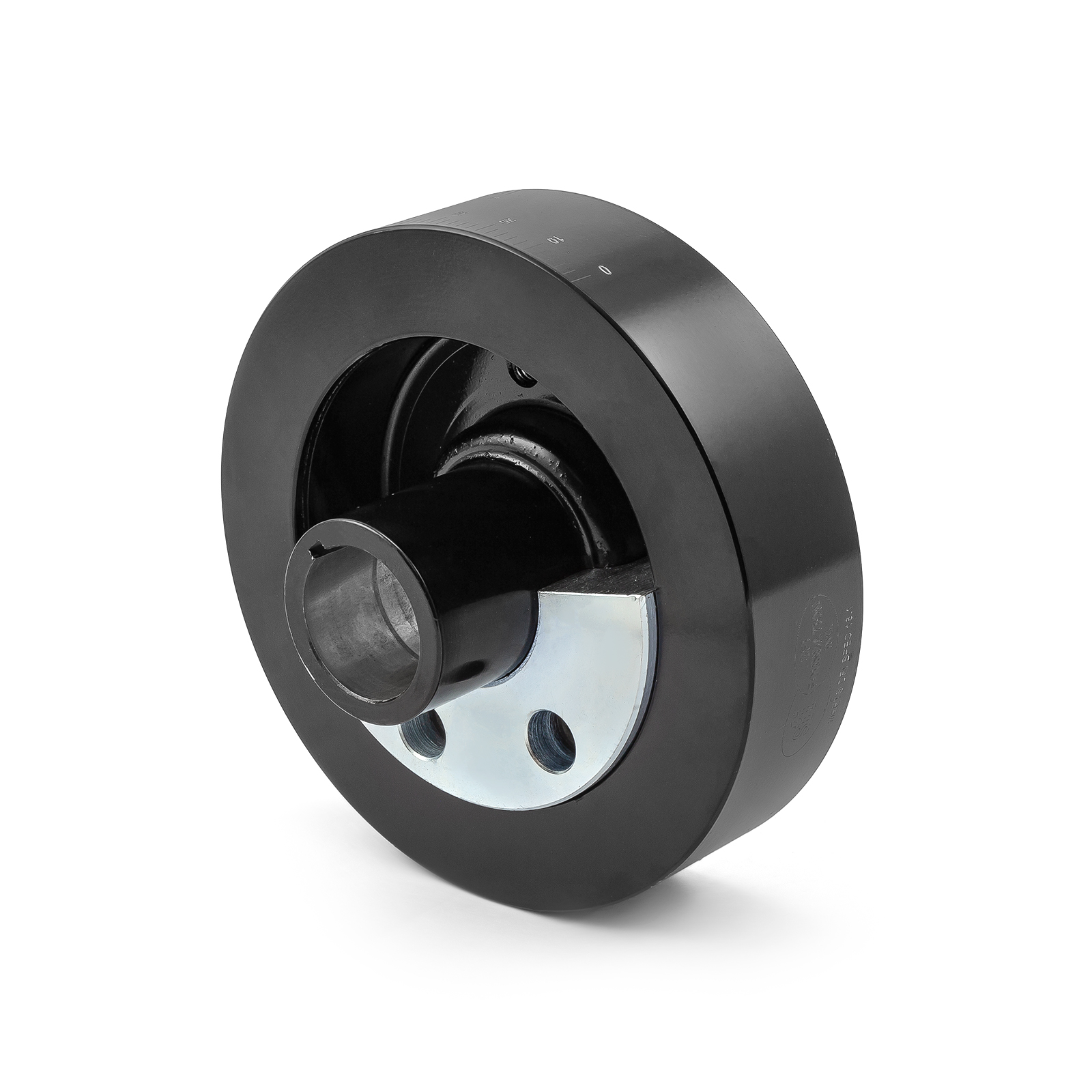

Speedmaster PCE291.1016 Harmonic Balancer 50oz External Balance SFI 18.1

The Speedmaster PCE291.1016 is a harmonic balancer (harmonic damper) for Ford small block 302 and 351 Windsor engines. It is externally balanced at 50 oz and carries an SFI 18.1 rating. The damper absorbs torsional vibration from the rotating assembly to help protect the crankshaft and bearings.

Key Features:

• Forged K1045 low carbon steel construction with tuned elastomer between two layers of steel
• Bonding process adheres the elastomer to the inside diameter of the inertia ring and the outside diameter of the hub, using a strong adhesive and an improved elastomer for a stronger bond
• Clear white timing marks on a painted black background, easy to read
• Steel inertia ring rotates harmonically with the engine and absorbs torsional vibration at any frequency and RPM
• Helps extend crankshaft and bearing life, allowing the engine to make more power and torque
• Tested to withstand 15 tons of press force without separation or deterioration

External balance explained: An externally balanced damper has built-in weight or an offset in the casting. To identify your existing damper, check its backside, which is not visible while it is mounted on the engine. If there is no offset or weight in the casting, it is an internal (neutral) balance damper. If you see an offset in the casting or a weight, it is an external damper. Make sure your engine's balance type matches before ordering.
