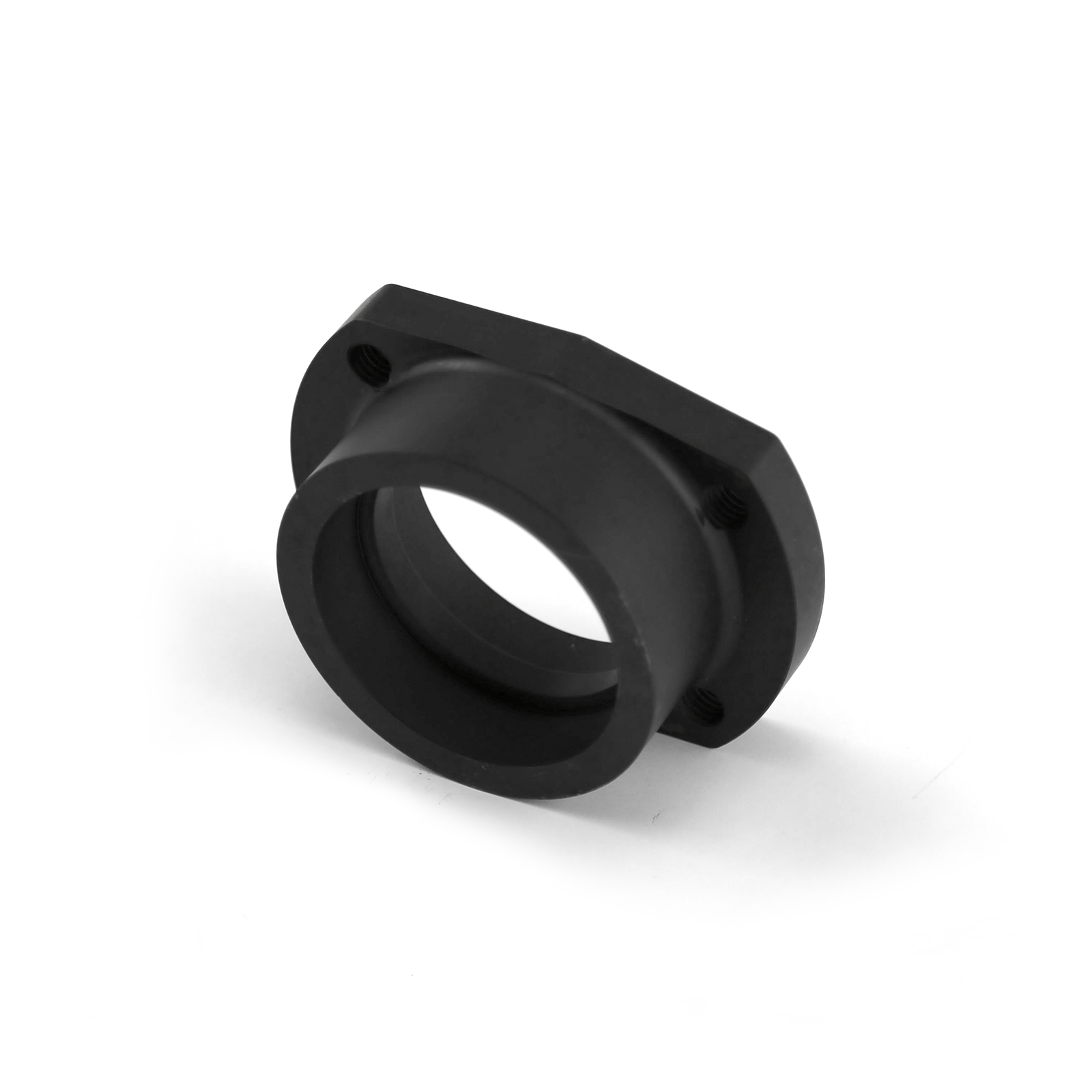

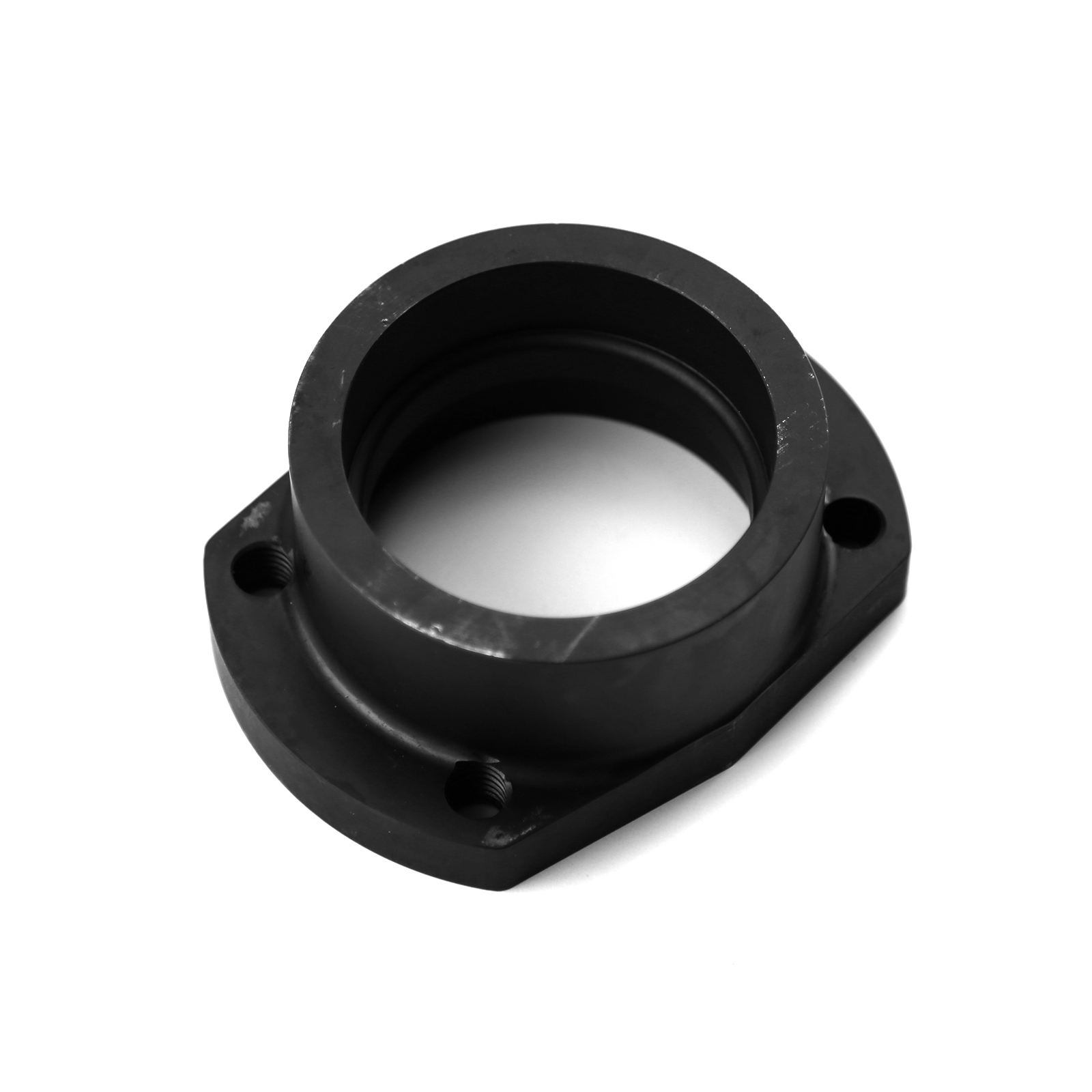

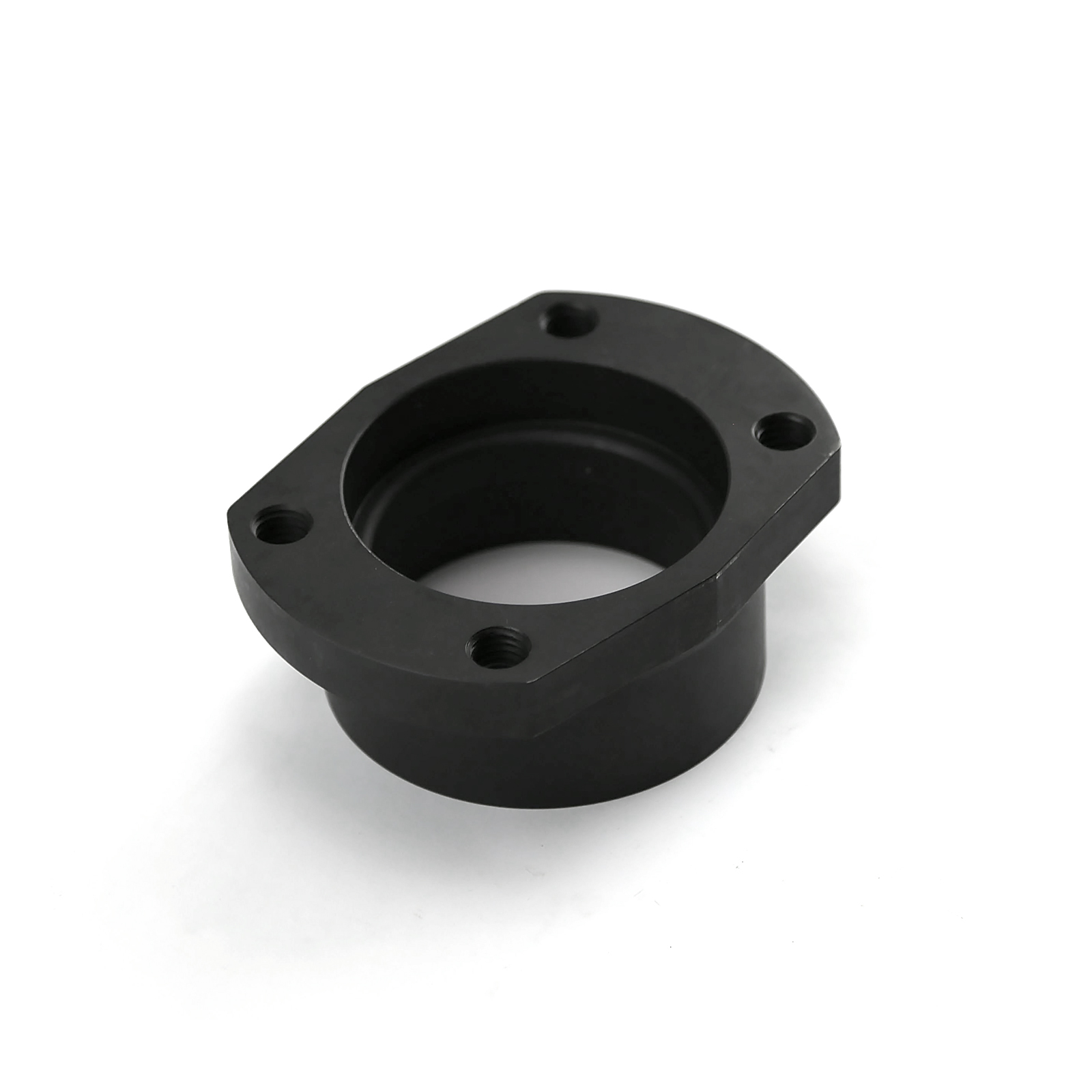

Speedmaster PCE198.1003 Rear Axle Weld-On Billet Housing End 3.500" x 2.375" Big Ford

The Speedmaster PCE198.1003 is a precision-machined rear axle housing end designed for custom axle housing fabrication and narrowing projects. Whether you're building a new housing from scratch or modifying an existing one to clear larger tires, this weld-on housing end provides the professional-grade component you need to complete your build.

Key Features:

• Forged from mild steel for superior strength and ease of welding
• Fully CNC-machined for precise tolerances and perfect bearing fit
• Designed to slide over 3" diameter housing tubes for optimal weld coverage
• 3.500" outer diameter x 2.375" bearing bore dimensions
• Big Ford (9") axle pattern configuration
• Compatible with 28, 31, and 35 spline axle shafts

Bearing Requirements:

• 28 and 31 spline axles: Requires bearing PCE231.1013 (1.377" / 35mm axle shaft diameter)
• 35 spline axles: Requires bearing PCE231.1006

This housing end is ideal for custom rear end builds, drag racing applications, pro-touring conversions, and any project requiring a narrowed or custom-width rear axle assembly. The slide-over design ensures maximum weld penetration and strength for a permanent, reliable installation.
