Speedmaster 1-148-004 Downdraft EFI 8-Stack Intake Manifold System Small Block Chevy 350 Black

(GMC G2500 1979-91, K1500 1979-86, 1988-91, C1500 1979-86, 1988-91, K2500 1979-86, 1988-91, Jimmy 1970-91, C3500 1979-86, 1988-91 + 189 more models)

Manufacturer

Part Number

1-148-004
Sale Price

$1,928.19

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

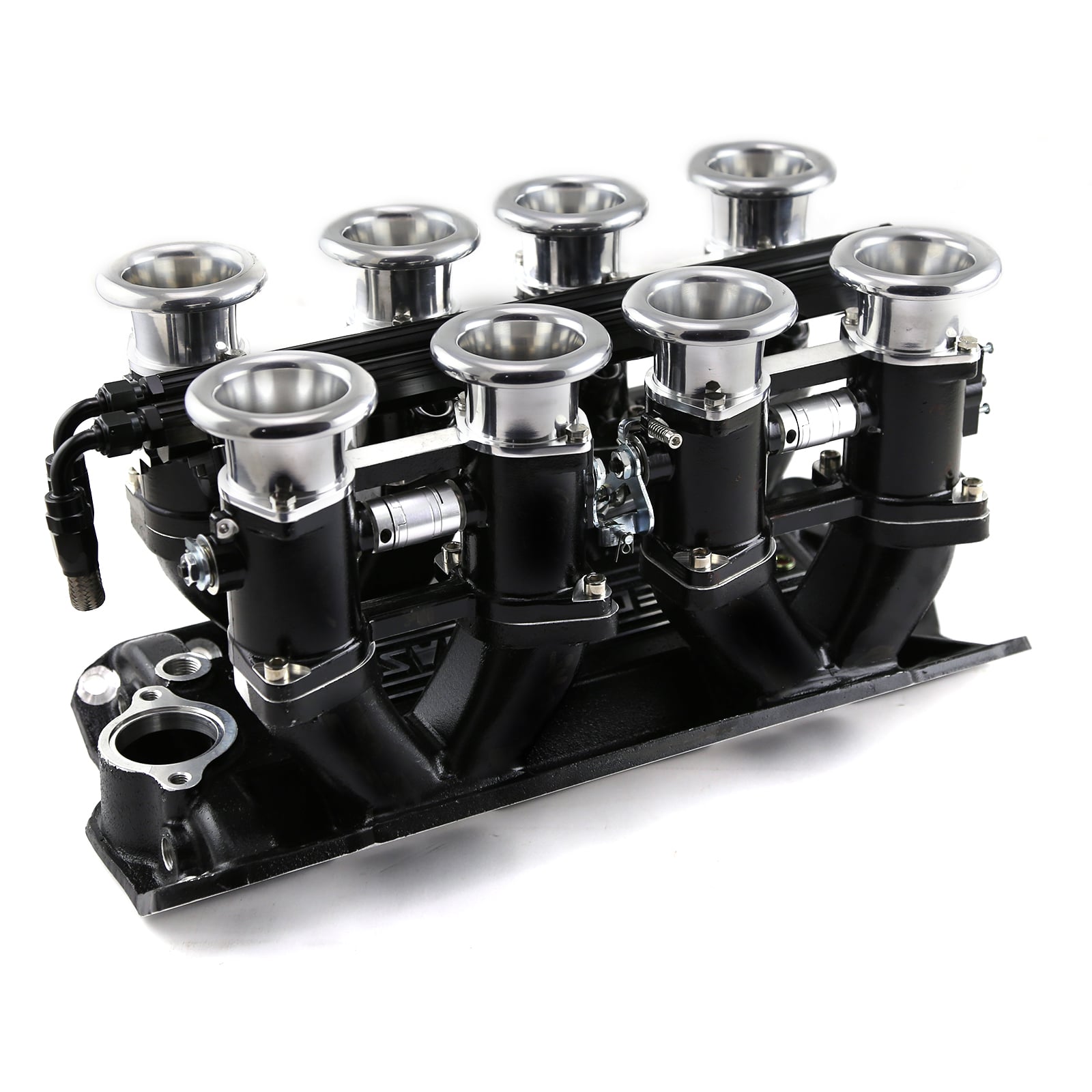

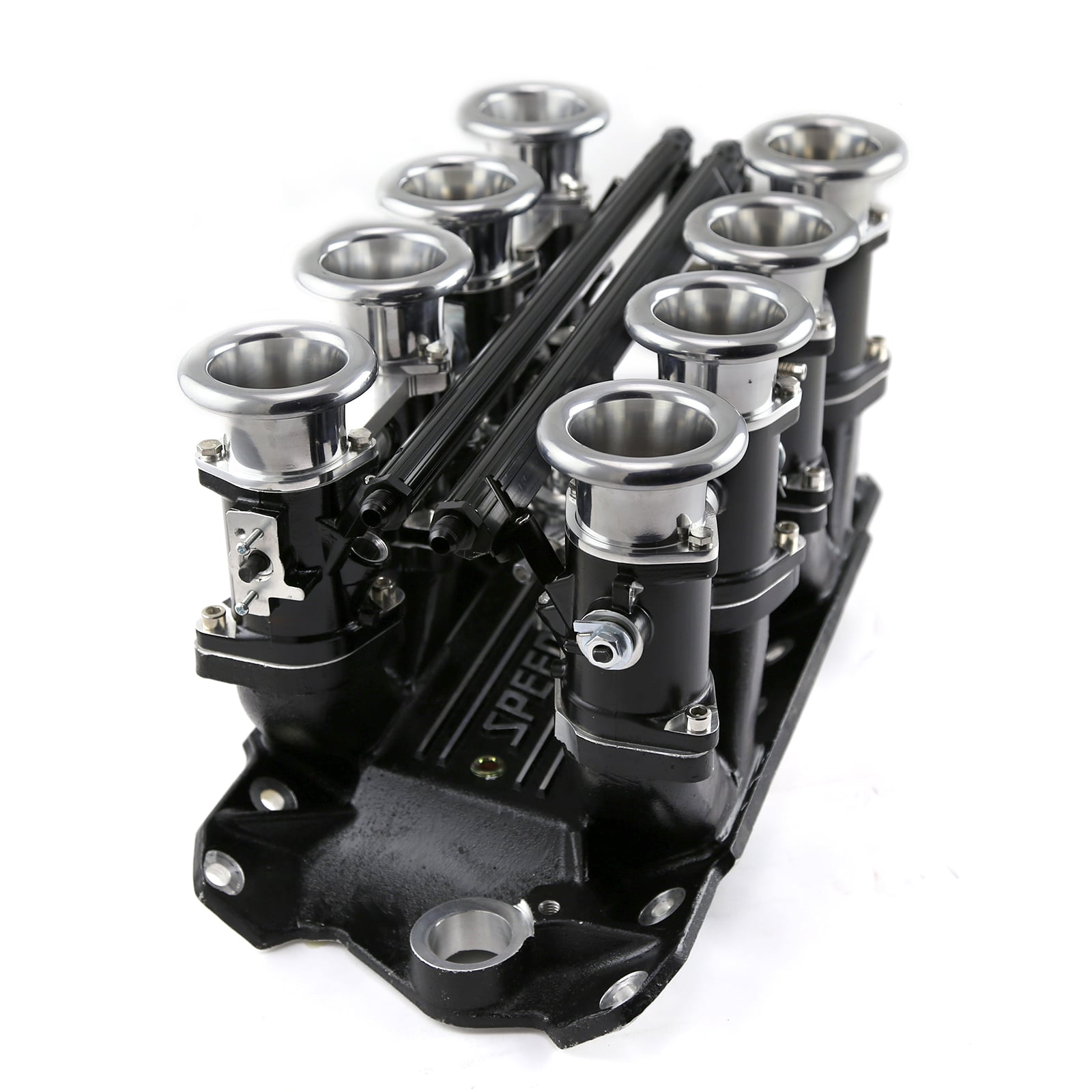

The Speedmaster 1-148-004 individual throttle body EFI system combines the classic appearance of Weber-style downdraft induction with modern electronic fuel injection performance and precision. This complete 8-stack intake manifold system is designed for Small Block Chevy 350 engines with stock or OEM-style cylinder heads, delivering exceptional throttle response and high-horsepower capability for racing applications.

Complete System Includes:

  • Cast aluminum intake manifold base with black finish
  • Eight 50mm IDA-style throttle bodies with CNC-machined construction
  • Polished aluminum intake velocity stacks (trumpets)
  • Fuel rails for EFI injector mounting
  • Integrated throttle linkage system with stops, idle controls, and lever arms

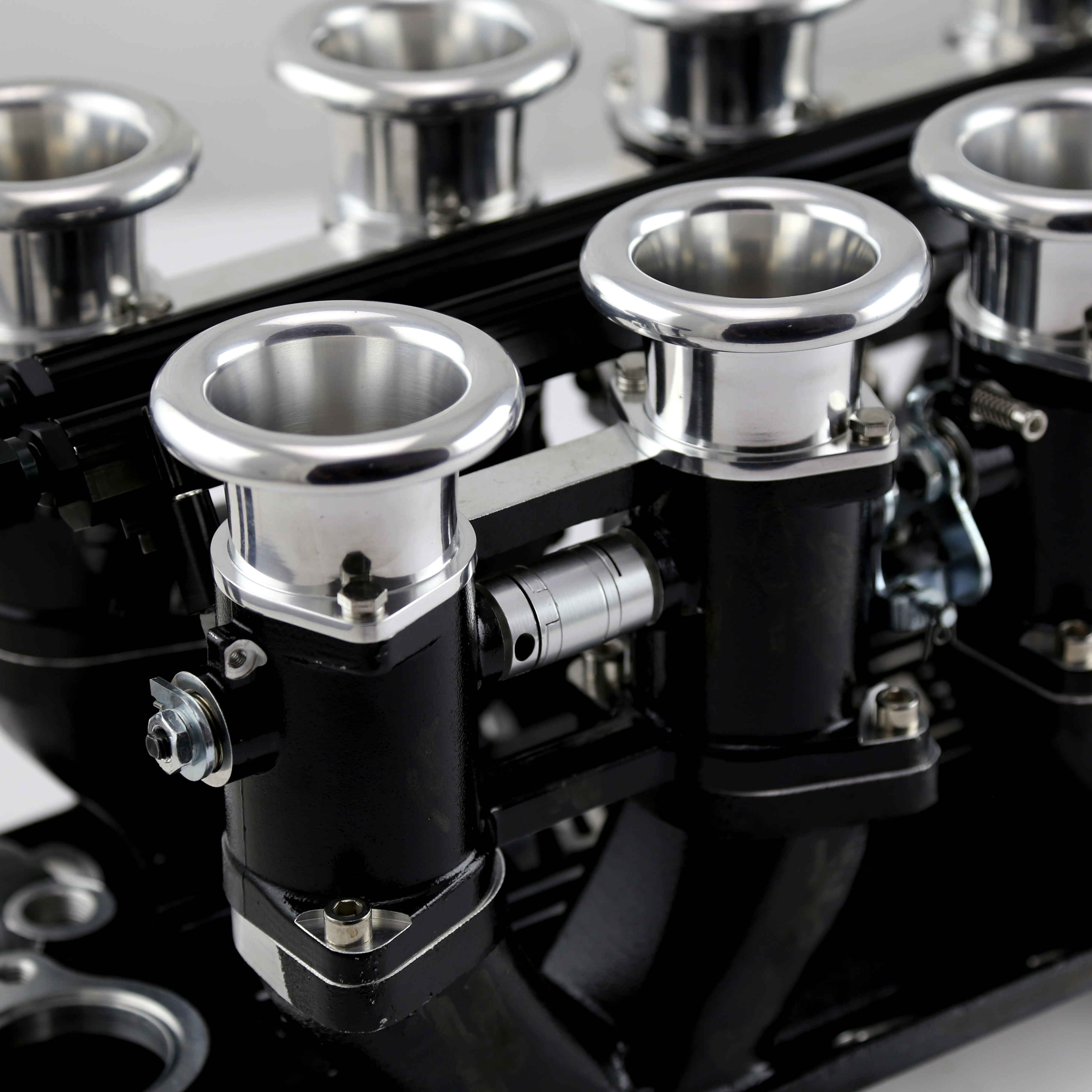

Premium Throttle Body Construction:

  • Heat-treated 6061 cast aluminum bodies
  • Precision-machined throttle butterflies measured and fitted to each bore for tight tolerances
  • Centerless ground brass throttle shafts with split screws for reliability and serviceability
  • O-ring seals on lower mounting faces for leak-free performance

Advanced Linkage Design:

  • All-in-one linkage set combines throttle stops, idle controls, lever arms, and joiner/balancer
  • Single-screw adjustment for calibrating front-to-rear throttle shaft synchronization
  • Fully indexable eccentric cable pulley on bell crank for excellent slow-speed drivability while maintaining full throttle geometry

Technical Specifications:

  • Engine Application: Chevy Small Block 350 (stock/OEM standard deck)
  • Throttle Body Size: 50mm IDA-style (8 pieces)
  • Operating RPM Range: Idle to 7,000 RPM
  • Fuel Injector Style: Requires EV6 style with USCAR plug (not included)
  • Base Material: Cast aluminum
  • Finish: Black powder coat
  • EGR Provision: No

Additional Requirements:

  • Fuel injectors not included (requires eight EV6/USCAR style injectors)
  • EFI sensor kit recommended: PCE651.1003
  • Compatible with any speed density EFI controller
  • FAST EZ-EFI 2.0 (FST30404) recommended for daily-driven vehicles with self-learning capability

This downdraft EFI stack system provides superior idle characteristics, instantaneous throttle response, and improved emissions control through precise air/fuel ratio management. The individual throttle body design eliminates intake manifold plenum limitations, allowing each cylinder to breathe independently for maximum performance potential. Intended for racing and off-road applications.

Products specifications

Fits

GMC G2500 1979-91, K1500 1979-86, 1988-91, C1500 1979-86, 1988-91, K2500 1979-86, 1988-91, Jimmy 1970-91, C3500 1979-86, 1988-91, K2500 Suburban 1979-86, K3500 1979-86, 1988-91, C15/C1500 Pickup 1969-74, C2500 1979-86, 1988-91 + 185 more models

Product Weight (lbs.)

30.6
