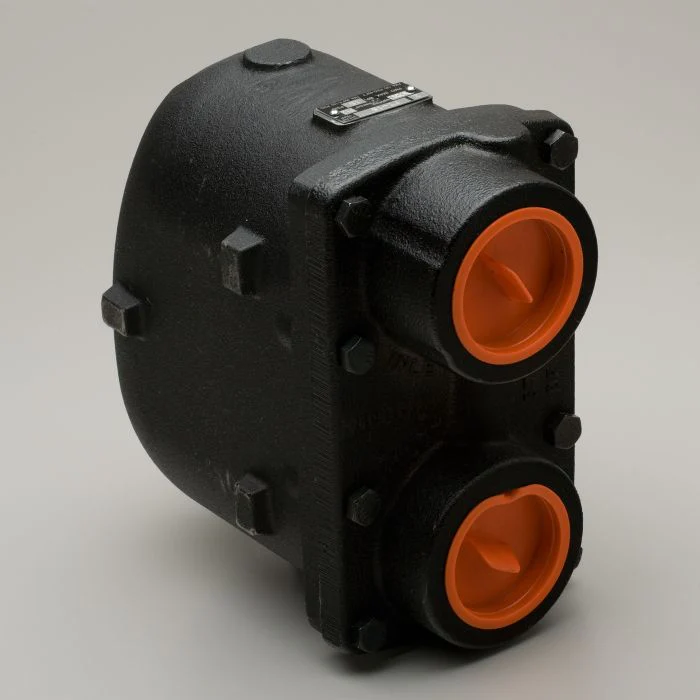

Spirax Sarco 50929 Float and Thermostatic Steam Trap 1 Inch NPT Cast Iron

Manufacturer

Part Number

50929
Black Friday Price

$520.61

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Spirax Sarco 50929 FT-30 is a cast iron float and thermostatic steam trap designed for continuous condensate drainage in steam heating and process applications. This 1-inch NPT steam trap features a parallel flow pattern configuration where steam enters and condensate discharges from the same side of the trap.

Key Features:

  • Ball float valve mechanism modulates to discharge condensate continuously at steam temperature
  • Balanced pressure thermostatic air vent releases non-condensable gases separately
  • Stainless steel internals including valve seat, ball float, float arm, and air vent assembly
  • Cast iron body constructed to ASTM A126 Grade B standards
  • 0.218 inch orifice with 1,370 lbs/hr condensate capacity
  • 30 PSI maximum operating pressure rating (125 PSIG maximum at 450°F)
  • Temperature rating up to 450°F (232°C)
  • Compact design: 4.6 inches length x 6.2 inches width

Applications: Ideal for process equipment controlled by modulating temperature control valves, unit heaters, air heating coils, heat exchangers, and steam main drip stations. Recommended for applications with widely varying loads where air venting at low pressures is critical. Excellent choice for handling startup air loads and operating against back pressure.
