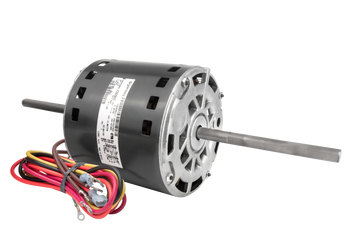

Bard 8106-046BX Blower Motor 1/2-3/4 HP 208-230V 1050 RPM Clockwise

The Bard 8106-046BX is an OEM replacement blower motor designed for Bard HVAC wall-mount and packaged air conditioning systems. This dual-shaft motor delivers reliable performance with 1/2 to 3/4 horsepower output, operating at 208-230 volts single phase at 1050 RPM with clockwise rotation.

Key Specifications:

• Power: 1/2 to 3/4 HP (horsepower)
• Voltage: 208-230V, Single Phase
• Speed: 1050 RPM
• Rotation: Clockwise (CW)
• Current: 3 Amps
• Shaft: Dual shaft configuration (CWLE) - 5-3/8" x 1/2" x 5-3/8"
• Enclosure: Open air over enclosure
• Bearing: Sleeve bearing
• Protection: Thermally protected
• Capacitor Required: 15 MFD at 370V (not included with motor only)

Important Note: The BX suffix indicates this motor is packaged for service replacement. Some versions include the required 15 MFD/370V run capacitor. The base model 8106-046 may be sold separately without the capacitor. This motor features dual shaft capability for flexible installation in various Bard HVAC equipment configurations.

Cross-reference number 5KCP39PGY967S. Genuine Bard OEM replacement part ensuring proper fit and reliable operation in compatible heating and cooling systems.
