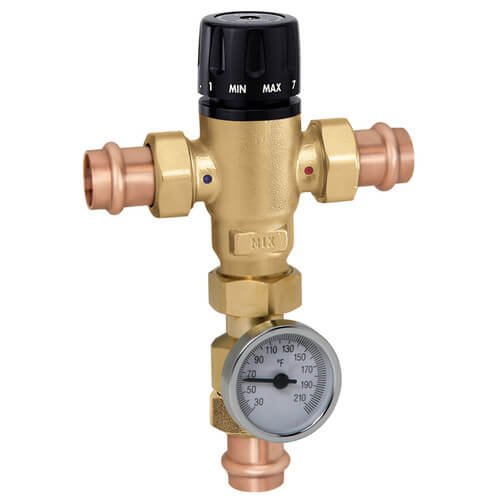

Caleffi 521506A MixCal 3/4" Press Thermostatic Mixing Valve

Manufacturer

Part Number

521506A
Sale Price

$193.70

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Caleffi MixCal™ 521 series three-way thermostatic mixing valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The valve has been specifically certified to ASSE 1017 and Low Lead Plumbing Law by IAPMO R&T.

This 3/4" model features press connections for quick, reliable installation without soldering. The large mixing chamber and precision thermostatic cartridge enable stable temperature control even during supply variations, making it ideal for point-of-distribution applications where consistent water temperature is critical.

Key Features:

  • Low-lead brass body with stainless steel trim and EPDM seals
  • Internal anti-scale materials to inhibit scaling and ensure long service life
  • Locking set point knob with tamper-proof adjustment setting lock
  • Adjustable range: 85—150ºF for versatile application use
  • Meets requirements of ANSI/NSF 372-2011 for low-lead compliance
  • Large easy-grip knob for simple temperature adjustment
  • Peroxide-cured seals resistant to chlorine and chloramines

Technical Specifications:

  • Connection Size: 3/4" press connections
  • Max. working pressure: 200 psi
  • Max. inlet temperature: 200ºF
  • Min. flow for optimum performance: 1.3 gpm
  • 5-5/8 in Inlet to Outlet Length, 2-9/16 in Top to Inlet Center, 8-1/2 in H
  • Media: Water/Glycol suitable

Certifications:

  • cUPC listed to ASSE 1017/ CSA B125.3, Low lead
  • ICC-ES certified for ASSE 1017 compliance
  • NSF/ANSI/CAN 372 compliant for drinking water systems

This valve provides precise temperature control for applications requiring scald protection and consistent water temperature delivery. The press connection design allows for fast, clean installation in copper piping systems without the need for torches or soldering equipment.
