Zone Offroad D25F 8-Inch Suspension Lift Kit with Fox 2.0 Adventure Series Shocks - Dodge Ram 2500 Diesel 4WD

The Zone Offroad D25F is an 8-inch front / 5-inch rear suspension lift kit engineered specifically for 2003–2007 Dodge Ram 2500 diesel 4WD trucks. This kit pairs full-length front coil springs with rear cast lift blocks to deliver a commanding stance and the clearance needed to run up to 38-inch tires. Fox 2.0 Adventure Series shocks are included to deliver a smooth, controlled ride both on and off the road.

Key Features:

• 8-inch front lift via full-length replacement coil springs rated for diesel-weight trucks
• 5-inch rear lift using cast iron rear lift blocks and U-bolt kit
• Fox 2.0 Adventure Series shocks for improved on-road ride quality and off-road damping performance
• Control arm relocation brackets crafted from heavy-duty steel to correct suspension geometry and maintain proper caster and front pinion angles
• Dropped pitman arm included to correct steering angles after lift
• Track bar relocation bracket included to maintain proper axle centering
• No frame or axle cutting required — bolt-on installation
• Stock alignment adjustability retained
• Accommodates up to 38x13.5 tires on 17x9, 18x9, or 20x9 wheels (5-inch backspacing recommended)
• Powdercoat finish for corrosion resistance

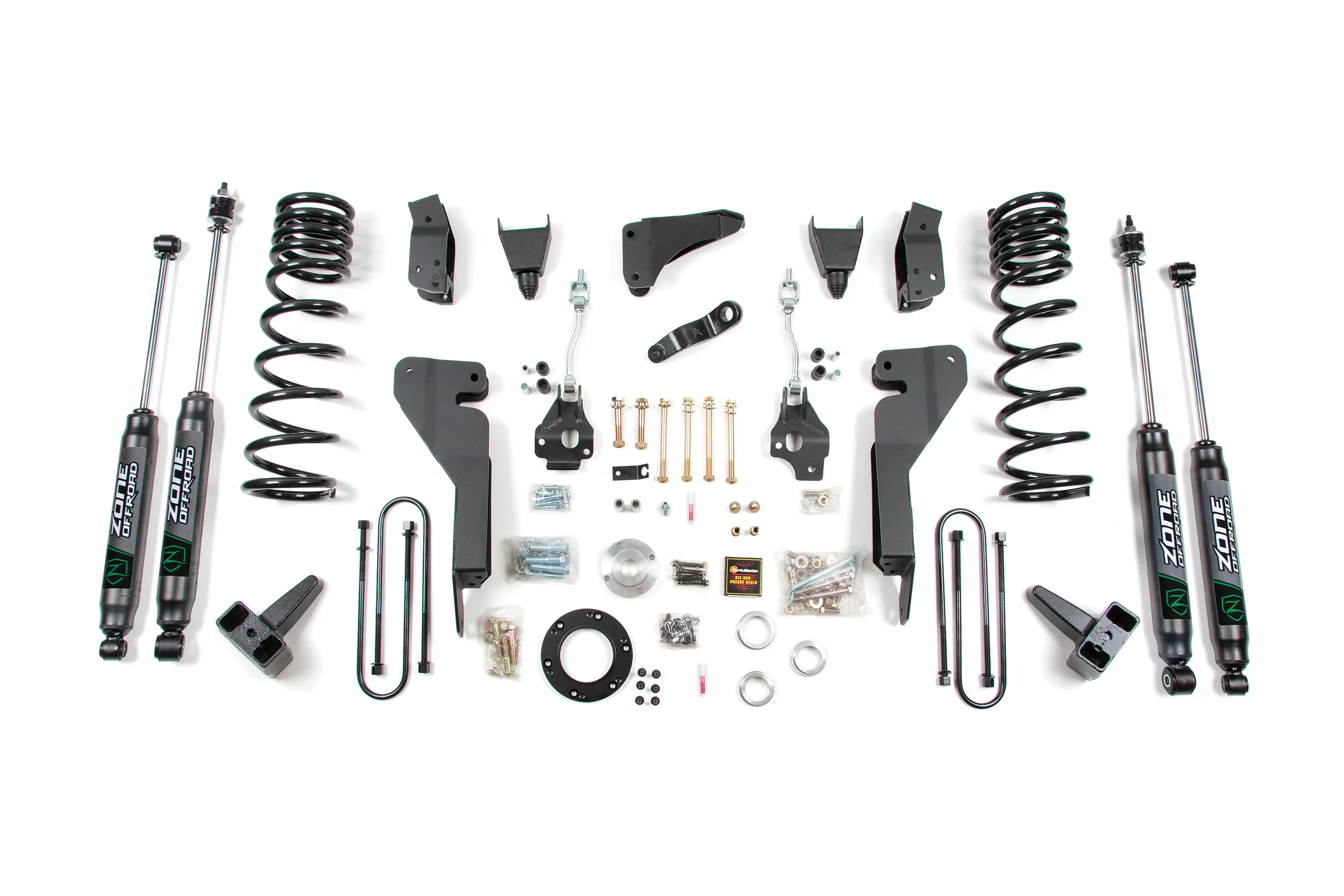

What's Included:

• Full-length front coil springs (diesel-rated)
• Fox 2.0 Adventure Series shocks
• Control arm relocation brackets
• Dropped pitman arm
• Track bar relocation bracket
• Rear cast lift blocks and U-bolt kit
• Brake line brackets
• All necessary mounting and installation hardware

Important Notes:

• Designed for diesel 4WD models only — not recommended for gas-powered trucks due to spring rate differences
• Not designed for dually models without modification
• If a two-piece rear driveshaft is present, an optional carrier bearing drop kit is recommended to reduce post-lift driveline angles
• Optional front bumper spacers available separately for trucks using oversized wheel and tire combinations

Zone Offroad's D25F lift kit is a performance-packed, budget-conscious solution for Dodge Ram HD owners who want maximum lift height, aggressive off-road capability, and room for oversized tires — all with a straightforward bolt-on installation that retains factory alignment adjustability.
