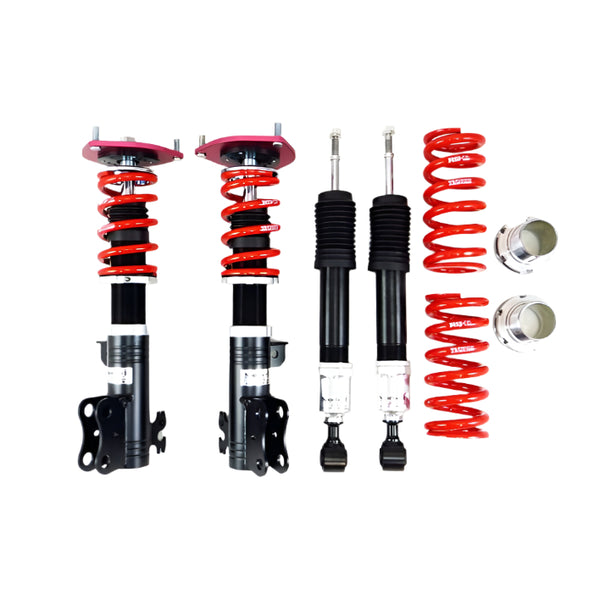

RS*R XNSPT558MP Sports-i Club Racer Coilovers 2023+ Toyota GR Corolla

The RS*R Sports-i Club Racer Coilovers represent the pinnacle of Japanese suspension engineering for the 2023+ Toyota GR Corolla. Handcrafted in Japan by Racing Studio-R, these competition-grade coilovers deliver track-proven performance while maintaining street-ready comfort for daily driving.

Track-Dedicated Design:

Engineered specifically for grassroots time attack and high-level motorsport competition, the Club Racer series features a monotube design with 36-way adjustable damping on both front and rear dampers. This extensive adjustability allows precise tuning for aggressive alignments, high-grip tires, and increased power modifications. The track-dedicated setup ensures superior response, heat dissipation, and cornering grip under demanding conditions.

Premium Japanese Craftsmanship:

• Hand-welded, laser-cut construction for maximum durability and precision
• Adjustable camber plates and pillow ball bushings for enhanced turn-in sharpness
• Relocated damper adjustment knobs for easy access and tuning
• Modern urethane bushing technology and silent roller bearings to minimize noise and vibration
• Vehicle-specific valving tuned for the GR Corolla chassis (GZEA14L)

Specifications:

• Front Spring Rate: 10.0 kg/mm
• Rear Spring Rate: 13.0 kg/mm
• Preset Approximate Height: Front -30mm to -35mm (-1.2" to -1.4"), Rear -35mm to -40mm (-1.4" to -1.6")
• Maximum Adjustment Range: Front 0mm to -90mm (0" to -3.6"), Rear -15mm to -65mm (-0.6" to -2.6")
• Recommended Adjustment Range: Front -10mm to -55mm (-0.4" to -2.2"), Rear -15mm to -65mm (-0.6" to -2.6")
• 36-way adjustable damping (front and rear)

Balanced Performance:

Unlike coilovers that sacrifice daily drivability for track performance, the RS*R Club Racer maintains excellent ride quality for street use while delivering uncompromising performance on track days. The monotube system provides superior damping control across the entire adjustment range, making this system ideal for enthusiasts who drive to the track, compete, and drive home in comfort.

Backed by RS*R's 1-year or 12,000-mile limited warranty against manufacturing defects. Direct bolt-on installation for the 2023+ Toyota GR Corolla.
