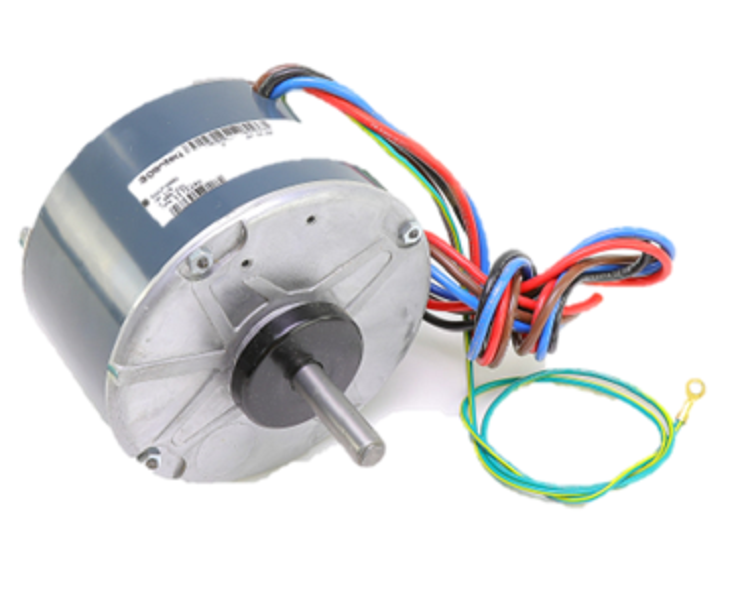

Heil 1172248 1/8 HP Condenser Fan Motor 208-230V Two-Speed

The Heil 1172248 is a professional-grade condenser fan motor designed for reliable performance in residential and light commercial HVAC applications. This OEM replacement motor is manufactured by GE/Emerson and is compatible with Heil, Tempstar, ICP, and Comfortmaker air conditioning systems.

Key Specifications:

• 1/8 horsepower permanent split capacitor motor
• 208-230 VAC, single phase, 60 Hz operation
• Two-speed design with 1075 RPM rating
• 0.66 amp current draw for energy-efficient operation
• 48Y NEMA frame size (5-5/8 inch diameter)
• Sleeve bearing construction for quiet operation
• Band mount configuration
• Counter-clockwise rotation (shaft facing up)
• 2.25 inch shaft extension

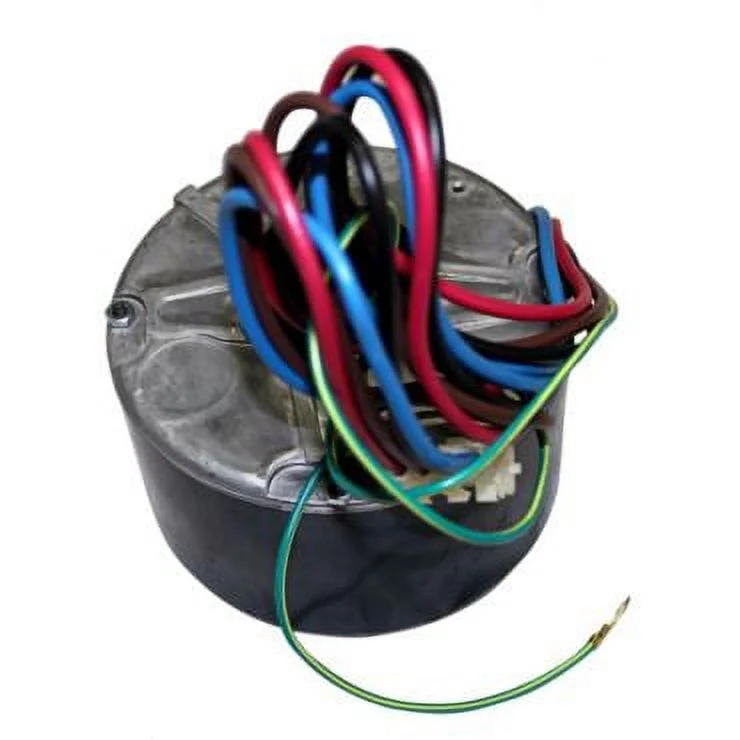

• Four-wire connection with removable plastic plug

Cross-Reference Information:

This motor replaces multiple OEM part numbers including HC35GZ005A and GE 5KCP39BGY148S. It serves as a direct replacement for Heil/ICP part numbers 1086398, HQ1086398EM, 1087473, and HQ1087473EM, making it compatible with numerous CAC, CHP, HAC, and HHP series condensing units.

The permanent split capacitor design provides reliable starting torque and efficient operation, while the sleeve bearing system ensures smooth, quiet performance. The band mount configuration allows for secure installation in compatible outdoor condensing units.
